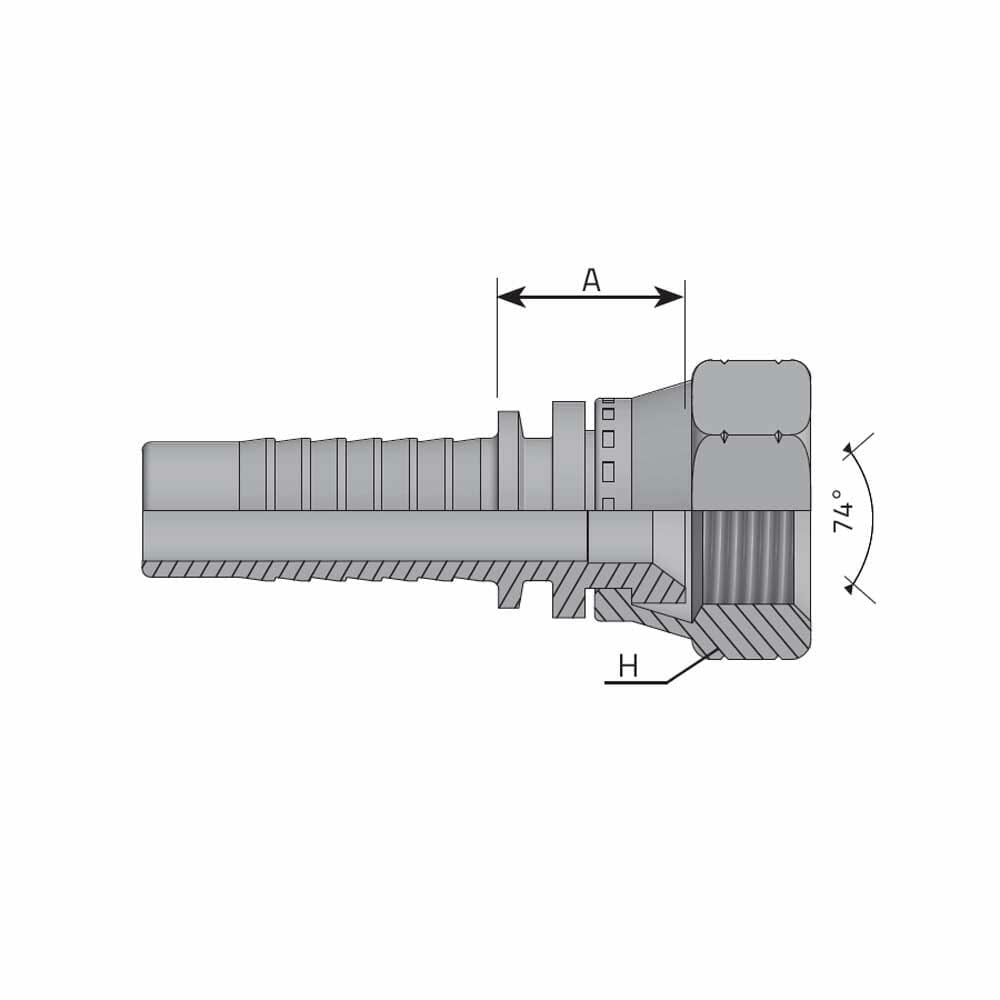

JIC 37° FEMALE
- Type: Standard
- Connector Gender: Female
- Thread: JIC 37°
- Elbow: Straight
Loading...
Description
Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

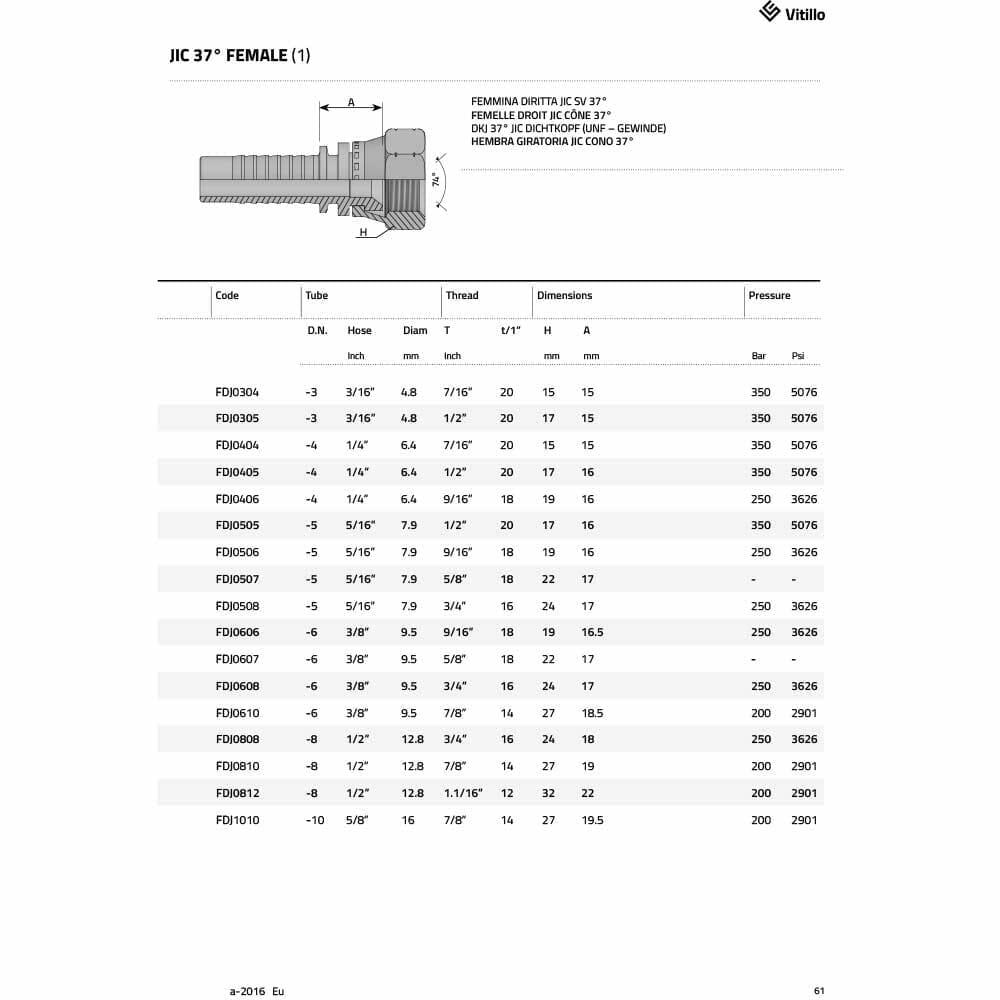

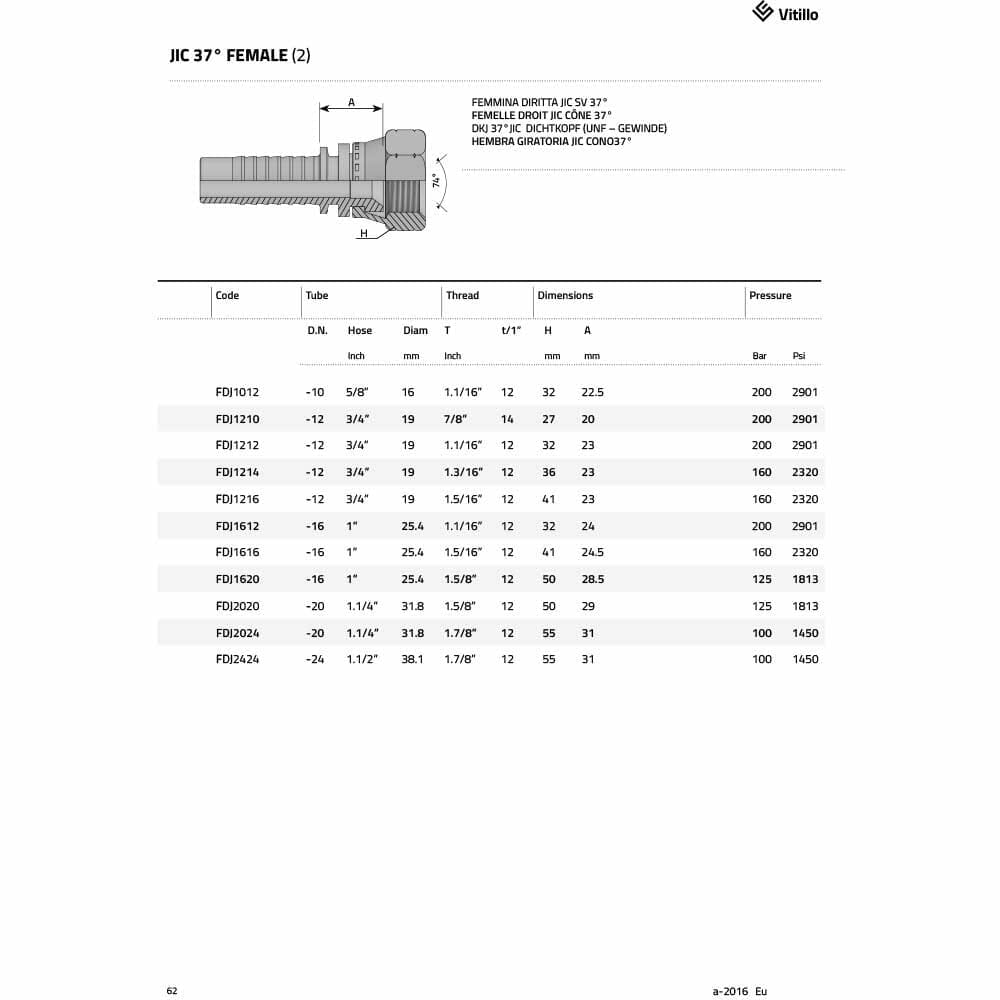

| SKU | D.N. | Hose Size | Diam | Thread | Pressure | Price | Stock | Buy |
|---|---|---|---|---|---|---|---|---|
| 0416452448 | -24 | 1 1 /2"/ 38.1mm | 38.1mm | 1.7/8" | 100 bar 1450 psi | € 49.84 + vat | In stock | |
| 0416452048 | -20 | 1 1/4" / 31.8mm | 31.8mm | 1.7/8" | 100 bar 1450 psi | € 50.22 + vat | In stock | |
| 0416251633 | -16 | 1" / 25.4mm | 25.4mm | 1.5/16" | 160 bar 2320 psi | € 8.37 + vat | In stock | |
| 0416251233 | -12 | 3/4" / 19mm | 19.0mm | 1.5/16" | 160 bar 2320 psi | € 7.75 + vat | In stock | |
| 0416251230 | -12 | 3/4" / 19mm | 19.0mm | 1.3/16 | 160 bar 2320 psi | € 9.61 + vat | In stock | |
| 0416251227 | -12 | 3/4" / 19mm | 19.0mm | 1.1/16" | 200 bar 2900 psi | € 4.54 + vat | In stock | |
| 0416251027 | -10 | 5/8" / 16mm | 16.0mm | 1.1/16" | 200 bar 2900 psi | € 4.17 + vat | In stock | |
| 0416251022 | -10 | 5/8" / 16mm | 16.0mm | 7/8" | 200 bar 2900 psi | € 3.57 + vat | In stock | |
| 0416250827 | -8 | 1/2" / 12.8mm | 12.8mm | 1.1/16" | 200 bar 2900 psi | € 6.04 + vat | In stock | |
| 0416250822 | -8 | 1/2" / 12.8mm | 12.8mm | 7/8" | 200 bar 2900 psi | € 2.72 + vat | In stock | |
| 0416250819 | -8 | 1/2" / 12.8mm | 12.8mm | 3/4" | 250 bar 3625 psi | € 2.79 + vat | In stock | |
| 0416250614 | -6 | 3/8" / 9.5mm | 9.5mm | 9/16" | 250 bar 3625 psi | € 1.81 + vat | In stock | |
| 0416250622 | -6 | 3/8" / 9.5mm | 9.5mm | 7/8" | 200 bar 2900 psi | € 3.71 + vat | In stock | |
| 0416250619 | -6 | 3/8" / 9.5mm | 9.5mm | 3/4" | 250 bar 3625 psi | € 2.15 + vat | In stock | |
| 0416250615 | -6 | 3/8" / 9.5mm | 9.5mm | 5/8" | – | € 2.55 + vat | In stock | |
| 0416250411 | -4 | 1/4" / 6.4mm | 6.4mm | 7/16" | 350 bar 5075 psi | € 1.44 + vat | In stock | |
| 0416250412 | -4 | 1/4" / 6.4mm | 6.4mm | 1/2" | 350 bar 5075 psi | € 1.50 + vat | In stock | |
| 0416250414 | -4 | 1/4" / 6.4mm | 6.4mm | 9/16" | 250 bar 3625 psi | € 1.39 + vat | In stock | |
| 0416250512 | -5 | 5/16" / 7.9mm | 7.9mm | 1/2" | 350 bar 5075 psi | € 1.44 + vat | In stock | |
| 0416250514 | -5 | 5/16" / 7.9mm | 7.9mm | 9/16" | 250 bar 3625 psi | € 1.50 + vat | In stock |
