SWIVEL FEMALE PLUG JIC
- Connector gender F1: Female
- Thread F1: JiC 37°
- Connector gender F2: null
- Elbow: Straight
Loading...
Description
Complete range of mild steel high pressure hydraulic adaptors for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

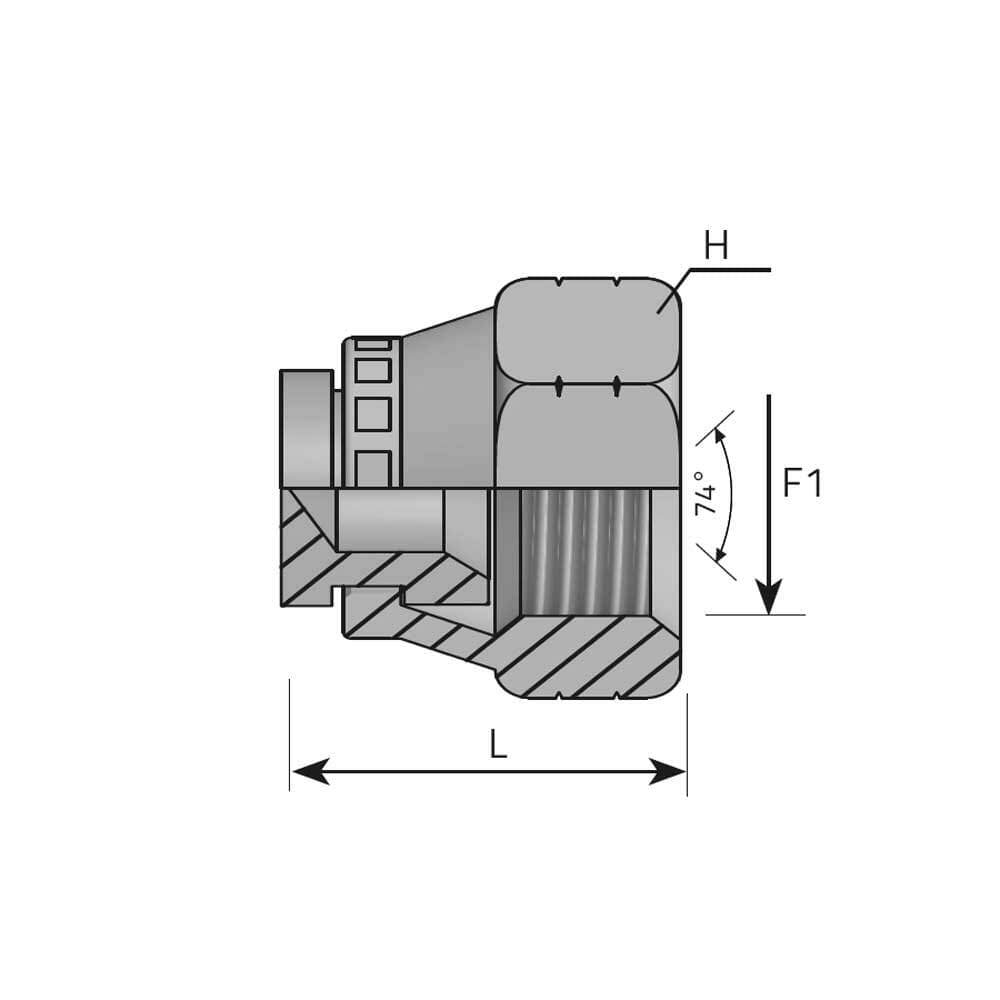

| SKU | F1 | H | L | Pressure | Price | Stock | Buy |
|---|---|---|---|---|---|---|---|
| 2713051111 | 7/16" | 15mm | 18mm | 310 bar 4495 psi | € 2.46 + vat | In stock | |
| 2713054848 | 1 7/8" | 55mm | 39.0mm | 105 bar 1523 psi | € 33.00 + vat | In stock | |
| 2713054141 | 1 5/8" | 50mm | 33mm | 140 bar 2030 psi | € 15.48 + vat | In stock | |
| 2713053333 | 1 5/16" | 41mm | 31.5mm | 170 bar 2466 psi | € 6.26 + vat | In stock | |
| 2713052727 | 1 1/16" | 32mm | 30mm | 210 bar 3046 psi | € 4.96 + vat | In stock | |
| 2713052222 | 7/8" | 27mm | 27mm | 210 bar 3046 psi | € 3.32 + vat | In stock | |
| 2713051919 | 3/4" | 24mm | 24mm | 275 bar 3988 psi | € 2.46 + vat | In stock | |
| 2713051414 | 9/16" | 19mm | 22.0mm | 275 bar 3988 psi | € 2.37 + vat | In stock | |
| 2713051212 | 1/2" | 17mm | 20mm | 275 bar 3988 psi | € 1.98 + vat | In stock |
