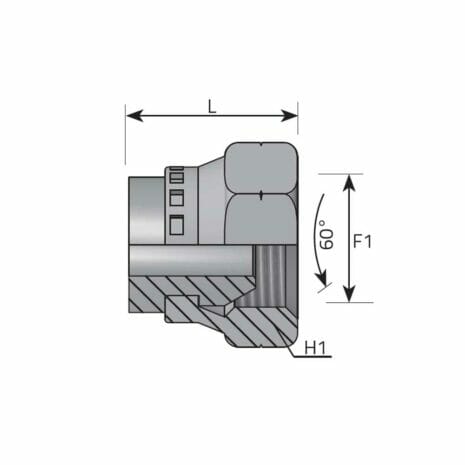

SWIVEL METRIC FEMALE PLUG



  • Connector gender F1: Female
  • Thread F1: METRIC
  • Elbow: Straight
Loading...

Description

Complete range of mild steel high pressure hydraulic adaptors for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUF1H1LPressurePriceStockBuy
C/FM1212X1.517mm18.5mm350 bar 5075 psi 3.93 + vat

In stock

C/FM1414X1.519mm20mm350 bar 5075 psi 4.41 + vat

In stock

C/FM1616X1.522mm21.5mm350 bar 5075 psi 5.19 + vat

In stock

C/FM1818X1.522mm21.5mm350 bar 5075 psi 6.33 + vat

In stock

C/FM2020X1.527mm24mm315 bar 4568 psi 7.00 + vat

In stock

C/FM2222X1.527mm24mm315 bar 4568 psi 7.94 + vat

In stock

C/FM2424X1.530mm26.5mm315 bar 4568 psi 9.83 + vat

In stock

C/FM2626X1.532mm28.5mm250 bar 3625 psi 4.39 + vat

In stock
