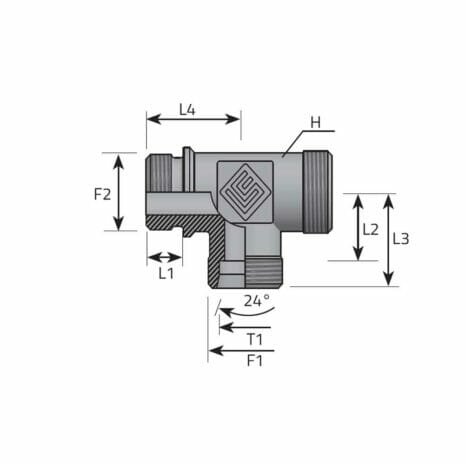

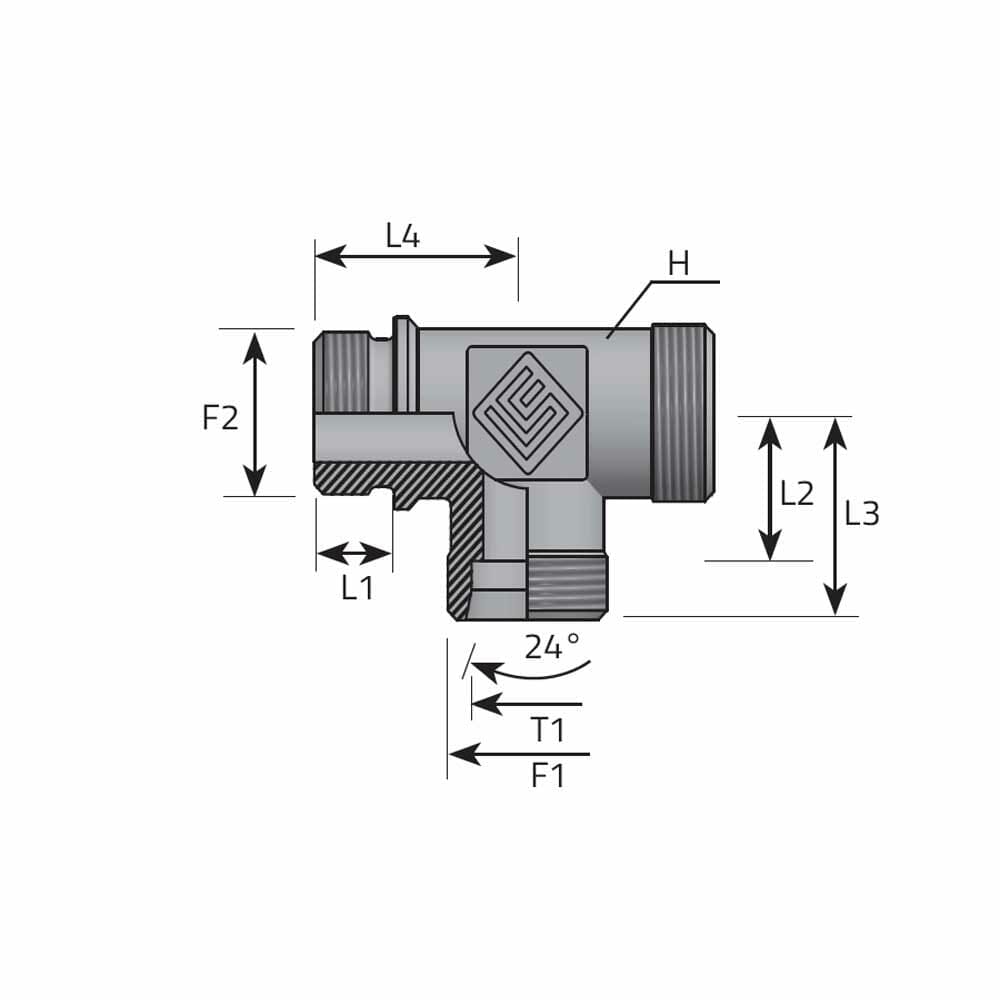

T ADAPTOR DIN MALE/DIN MALE/DIN MALE



  • Connector gender F1: Male
  • Thread F1: DIN
  • Connector gender F2: Male
  • Thread F2: METRIC
  • Elbow: T adapter
Loading...

Description

Complete range of mild steel high pressure hydraulic adaptors for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUF1F2SeriesT1HL1L2PressurePriceStockBuy
TME06L12X1.512X1.5Light6mm12mm12.0mm19.0mm315 bar 4568 psi 5.98 + vat

In stock

TME08L14X1.514X1.5Light8mm12mm14.0mm21.0mm315 bar 4568 psi 7.37 + vat

In stock

TME10L16X1.516X1.5Light10mm14mm15.0mm22.0mm315 bar 4568 psi 8.67 + vat

In stock

TME12L18X1.518X1.5Light12mm17mm17.0mm24.0mm315 bar 4568 psi 10.35 + vat

In stock

TME15L22X1.522X1.5Light15mm19mm21.0mm28mm315 bar 4568 psi 12.00 + vat

In stock

TME18L26X1.526X1.5Light18mm24mm23.5mm31mm315 bar 4568 psi 15.55 + vat

In stock

TME22L30X230X2Light22mm27mm27.5mm35mm160 bar 2320 psi 23.36 + vat

In stock

TME28L36X236X2Light28mm36mm30.5mm38mm160 bar 2320 psi 35.64 + vat

In stock

TME06S14X1.514X1.5Heavy6mm12mm16.0mm23.0mm630 bar 9136 psi 7.52 + vat

In stock

TME08S16X1.516X1.5Heavy8mm14mm17.0mm24.0mm630 bar 9136 psi 8.28 + vat

In stock

TME10S18X1.518X1.5Heavy10mm17mm17.5mm25.0mm630 bar 9136 psi 9.33 + vat

In stock

TME12S20X1.520X1.5Heavy12mm12mm21.5mm29mm630 bar 9136 psi 10.06 + vat

In stock

TME14S22X1.522X1.5Heavy14mm19mm22.0mm30mm630 bar 9136 psi 17.24 + vat

In stock

TME16S24X1.524X1.5Heavy16mm24mm24.5mm33mm400 bar 5801 psi 16.90 + vat

In stock

TME20S30X230X2Heavy20mm27mm26.5mm37mm400 bar 5801 psi 25.40 + vat

In stock

TME25S36X236X2Heavy25mm36mm30.0mm42.0mm400 bar 5801 psi 38.02 + vat

In stock

TME30S42X242X2Heavy30mm41mm35.5mm49mm400 bar 5801 psi 49.07 + vat

In stock

TME38S52X252X2Heavy38mm50mm41mm57.0mm315 bar 4568 psi 73.85 + vat

In stock
