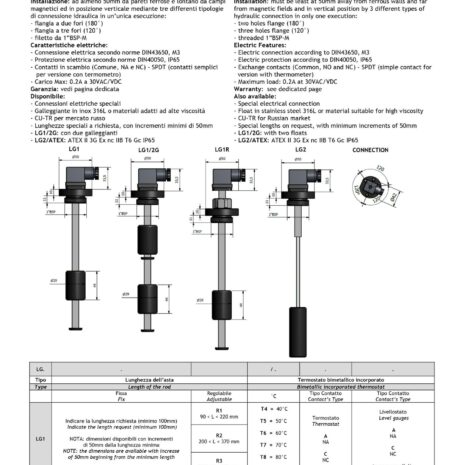

TEMPERATURE & LEVEL INTANK SWITCH

Electromechanical level indicator- temperature intank switch suitable for use with ASA Hydraulik coolers.

Technical Features:
Working temperature: -10°C ÷ +90°C
Maximum inclination: 15°
Max viscosity of the fluid: 150 cSt
Mechanical life: 106
cycles at 20°C
Body: in anodized aluminium with wetted part in stainless steel 316L (rod) and spancil pom (float)
Installation: must be least at 50mm away from ferrous walls and far from magnetic fields and in vertical position by 3 different types of hydraulic connection in only one execution:
– two holes flange (180°)
– three holes flange (120°)
– threaded 1”BSP-M

Electrical Features:
– Electrical connection according to DIN43650, M3
– Electrical protection according to DIN40050, IP65
– Exchange contacts (Common, NO and NC) – SPDT (simple contact for version with thermometer)
– Maximum load: 0.2A at 30VAC/VDC
