Search Results for: tee

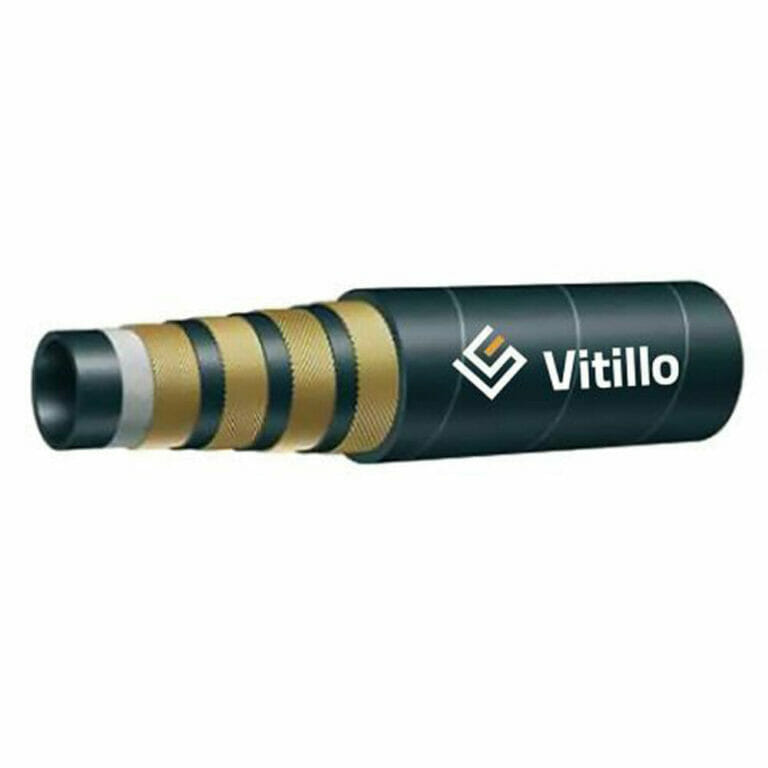

  • VITILLO SPIRAL HOSE 4SH

    • Hose Type: Standard spiral hose
    • Application: Very High Pressure Hydraulic System
    • Available Cover: Standard – Evergreen – Forever
    • Available Cover Color: Black
    • Operating Temperature Range: – 40°C/+100°C (-40°F / +212°F) with peaks of 125°C (257°F)
    • Tube: Oil resistant synthetic rubber
    • Reinforcement: 4 high tensile steel spirals
    • Cover: Standard: synthetic rubber / Evergreen: synthetic rubber with high resistance to abrasion and to flame / Forever: synthetic rubber covered by a polyethylene film with high abrasion resistance
    • Type Approval: MSHA – DNV-GL – RINA – MarED

    Hose features:  High pressure

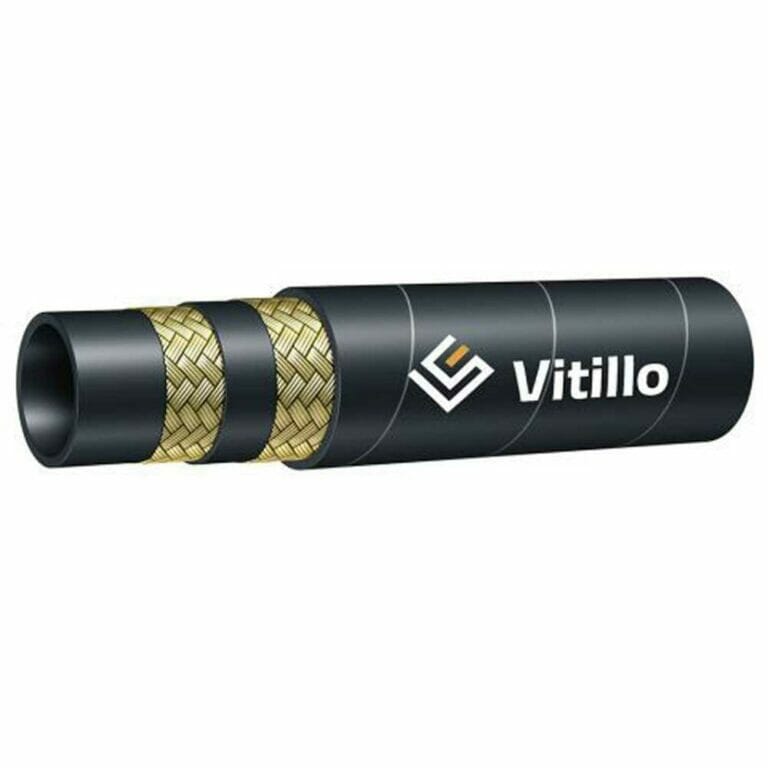

  • VITILLO BRAIDED HYDRAULIC HOSE 2 WIRE 2SC

    • Hose Type: Standard braided hose
    • Application: Medium – High Pressure Hydraulic Lines – Return lines – Suction Lines
    • Available Cover: Standard
    • Available Cover Color: Black
    • Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
    • Tube: Oil resistant synthetic rubber
    • Reinforcement: 2 high tensile steel braids
    • Cover: Standard cover: synthetic rubber
    • Type Approval: MSHA
    • Hose features:  Reduced bending radius
    • Produced in Italy by Vitillo- manufacturer of premium quality hydraulic products.
    • Safe, flexible and reliable with many operating pressure ranges, high performance fluid transfer capabilities and optimal levels of abrasion resistance.Before assembly please refer to crimping parameters in Literature section and confirm ferrule compatibility,Prices are per meter. Please note max single coil lengths and refer to spec sheet for additional information.

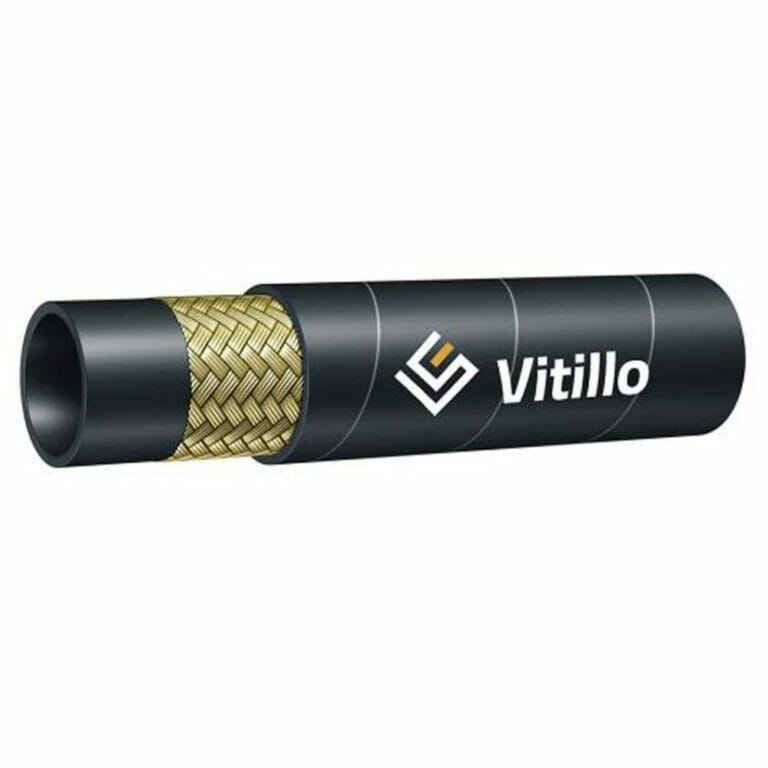

  • VITILLO BRAIDED HYDRAULIC HOSE 1 WIRE 1SC


    CRIMP CHART

    • Hose Type: Standard braided hydraulic hose
    • Application: Return lines – Pilot Lines – Low – Medium Pressure Hydraulic Lines – Installation constraints
    • Available Cover: Standard
    • Available Cover Color: Black
    • Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
    • Tube: Oil resistant synthetic rubber
    • Reinforcement: 1 high tensile steel braid
    • Cover: Standard cover: synthetic rubber
    • Type Approval: MSHA

    Hose features:  Reduced bending radius

    Prices are per meter. Please note max single coil lengths.

    Wide range of high quality, durable hydraulic hoses for a variety of equipment and applications.
    Produced in Italy by Vitillo- manufacturer of premium quality hydraulic products.
    Safe, flexible and reliable with many operating pressure ranges, high performance fluid transfer capabilities and optimal levels of abrasion resistance.
