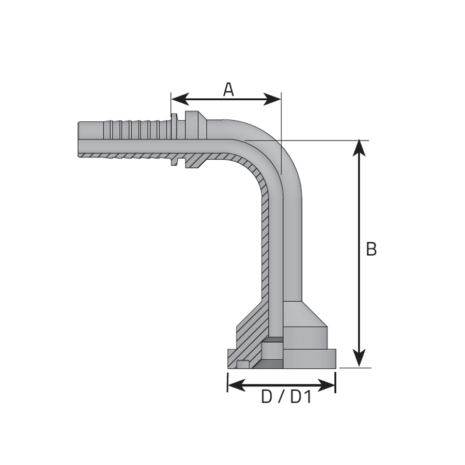

FLANGE CODE 61 – 3000 PSI – 90 ° ELBOW (LONG DROP)

Price range: €35.00 through €68.77 + vat

Type: Standard
Connector Gender: Flange
Thread: None
Elbow: 90° Elbow

Please note this product is supplied without a seal.

3000/6000 FLANGE SEALS

Rapid dispatch for all orders!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

SKU: N/A Categories: Ferrules, Hose Inserts & Adaptors, FLANGE, Vitillo Hose Inserts

Description
Additional information

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

APPLY FOR A TRADE ACCOUNT TO AVAIL FOR SPECIAL DISCOUNTS HERE

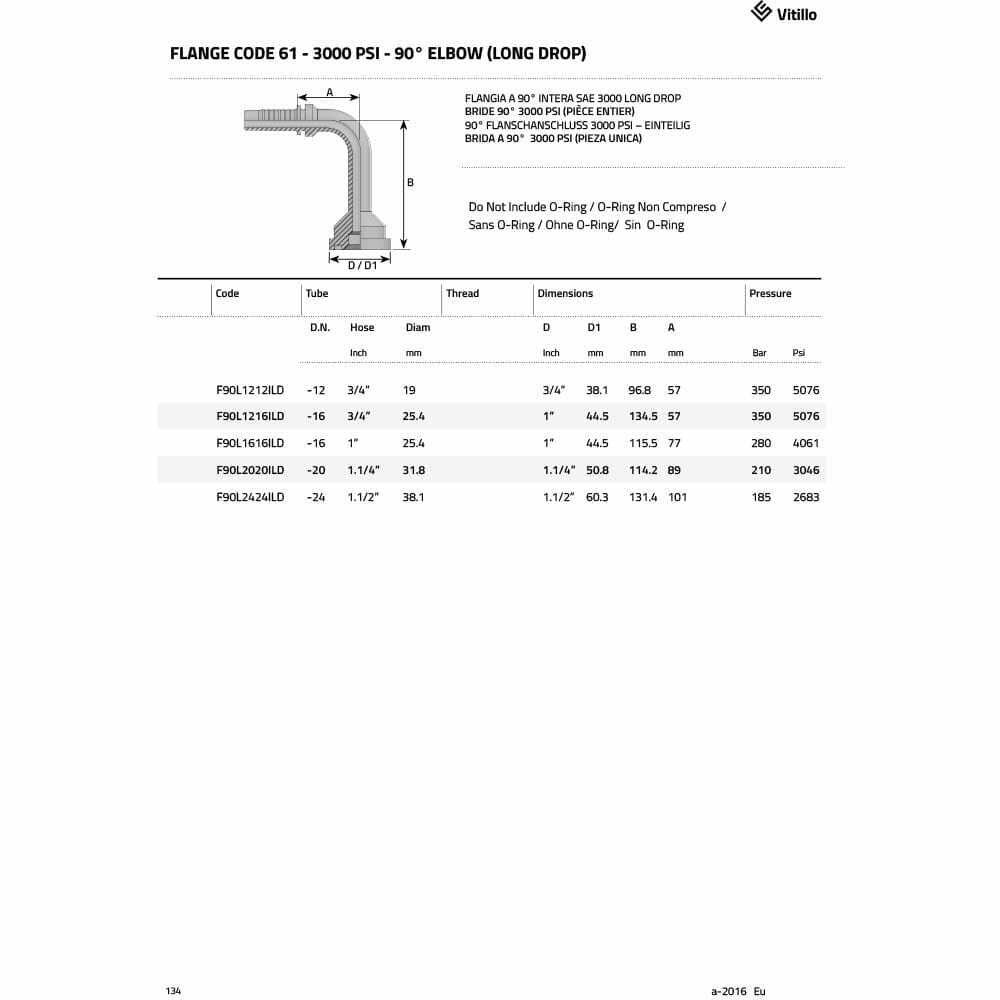

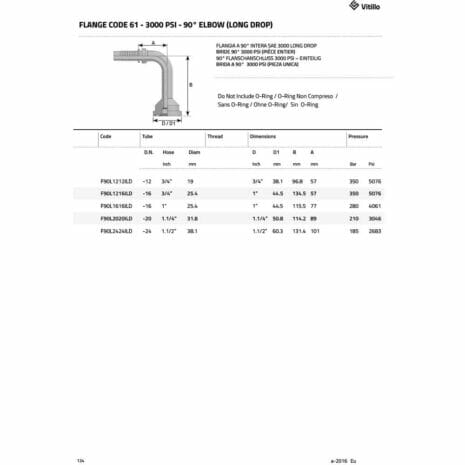

SKU	D n	Hose size	Diam	D	D1	Pressure	Price	Stock	Buy
0455061227-LD	'-12	3/4" / 19mm	19.0mm	3/4"	38.1mm	350 bar 5075 psi	€35.00 + vat	In stock	FLANGE CODE 61 - 3000 PSI - 90 ° ELBOW (LONG DROP) quantity
0455061233-LD	'-12	3/4" / 19mm	25.4mm	1"	44.5mm	350 bar 5075 psi	€68.77 + vat	In stock	FLANGE CODE 61 - 3000 PSI - 90 ° ELBOW (LONG DROP) quantity
0455061633-LD	-16	1" / 25.4mm	25.4mm	1"	44.5mm	280 bar 4061 psi	€68.00 + vat	In stock	FLANGE CODE 61 - 3000 PSI - 90 ° ELBOW (LONG DROP) quantity
0455062042-LD	-20	1 1/4" / 31.8mm	31.8mm	1 1/4"	50.8mm	210 bar 3046 psi	€58.00 + vat	In stock	FLANGE CODE 61 - 3000 PSI - 90 ° ELBOW (LONG DROP) quantity
