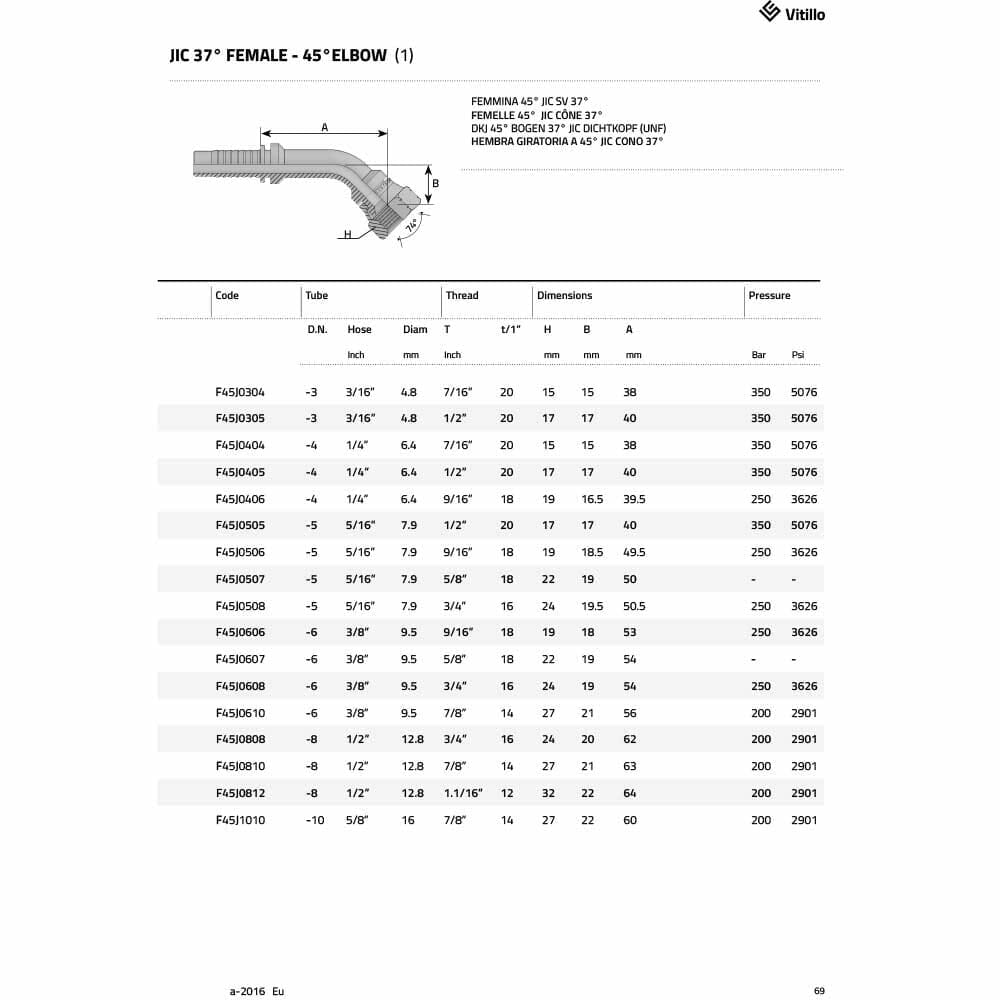

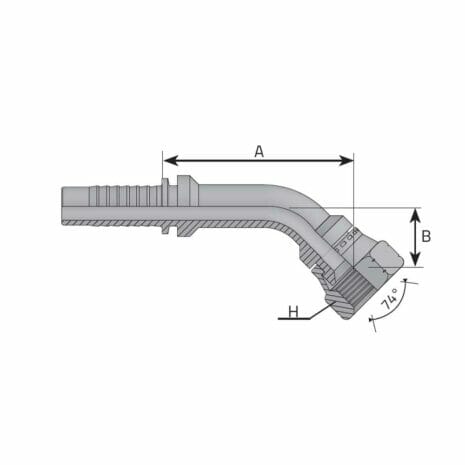

JIC 37° FEMALE – 45° ELBOW



  • Type: Standard
  • Connector Gender: Female
  • Thread: JIC 37°
  • Elbow: 45° Elbow
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUD.N.Hose SizeDiamThreadPressurePriceStockBuy
0428552041-201 1/4" / 31.8mm31.8mm1.5/8"125 bar 1813 psi 37.99 + vat

In stock

0428251233-123/4" / 19mm19.0mm1.5/16"160 bar 2320 psi 15.28 + vat

In stock

0428251230-123/4" / 19mm19.0mm1.3/16160 bar 2320 psi 20.18 + vat

In stock

0428251633-161" / 25.4mm25.4mm1.5/16"160 bar 2320 psi 16.64 + vat

In stock

0428552448-241 1 /2"/ 38.1mm38.1mm1.7/8"100 bar 1450 psi 43.51 + vat

In stock

0428250614-63/8" / 9.5mm9.5mm9/16"250 bar 3625 psi 3.66 + vat

In stock

0428250615-63/8" / 9.5mm9.5mm5/8" 5.07 + vat

In stock

0428250619-63/8" / 9.5mm9.5mm3/4"250 bar 3625 psi 4.79 + vat

In stock

0428250622-63/8" / 9.5mm9.5mm7/8"200 bar 2900 psi 8.48 + vat

In stock

0428250819-81/2" / 12.8mm12.8mm3/4"200 bar 2900 psi 4.65 + vat

In stock

0428250822-81/2" / 12.8mm12.8mm7/8"200 bar 2900 psi 5.76 + vat

In stock

0428250827-81/2" / 12.8mm12.8mm1.1/16"200 bar 2900 psi 13.83 + vat

In stock

0428251022-105/8" / 16mm16.0mm7/8"200 bar 2900 psi 7.29 + vat

In stock

0428251027-105/8" / 16mm16.0mm1.1/16"200 bar 2900 psi 9.07 + vat

In stock

0428251227-123/4" / 19mm19.0mm1.1/16"200 bar 2900 psi 9.09 + vat

In stock

0428250411-41/4" / 6.4mm6.4mm7/16"350 bar 5075 psi 3.45 + vat

In stock

0428250412-41/4" / 6.4mm6.4mm1/2"350 bar 5075 psi 3.38 + vat

In stock

0428250414-41/4" / 6.4mm6.4mm9/16"250 bar 3625 psi 3.57 + vat

In stock

0428250514-55/16" / 7.9mm7.9mm9/16"250 bar 3625 psi 3.29 + vat

In stock
