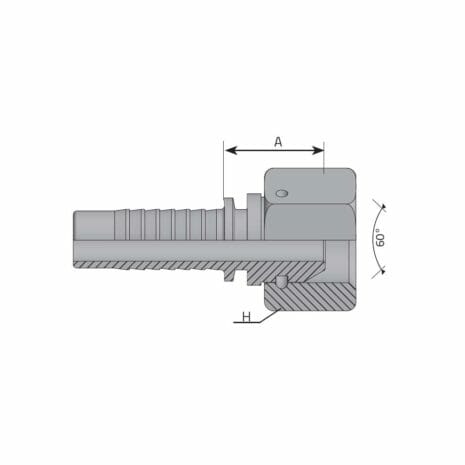

BSPP FEMALE (THRUST WIRE NUT)



  • Type: Standard
  • Connector: Gender: Female
  • Thread: BSPP
  • Elbow: Straight
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts  for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

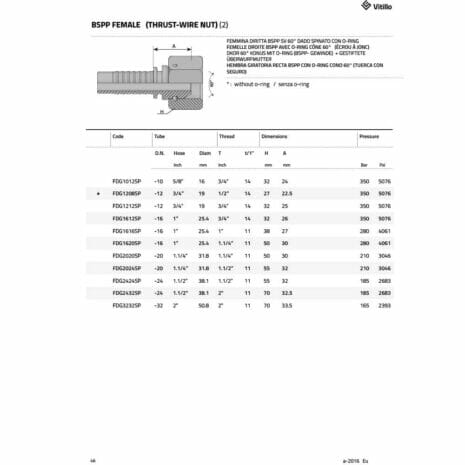

SKUD.N.Hose SizeDiamThreadPressurePriceStockBuy
FDG1212SP-123/4" / 19mm19.0mm3/4"350 bar 5075 psi 6.55 + vat

In stock

FDG1612SP-161" / 25.4mm25.4mm3/4"350 bar 5075 psi 19.00 + vat

In stock

FDG1616SP-161" / 25.4mm25.4mm1"280 bar 4061 psi 8.67 + vat

In stock

FDG1620SP-161" / 25.4mm25.4mm1.1/4"280 bar 4061 psi 18.42 + vat

In stock

FDG2020SP-201 1/4" / 31.8mm31.8mm1.1/4"210 bar 3046 psi 15.39 + vat

In stock

FDG2024SP-201 1/4" / 31.8mm31.8mm1.1/2"210 bar 3046 psi 29.51 + vat

In stock

FDG2424SP-241 1 /2"/ 38.1mm38.1mm1.1/2"185 bar 2683 psi 25.26 + vat

In stock

FDG2432SP-241 1 /2"/ 38.1mm38.1mm2"185 bar 2683 psi 37.54 + vat

In stock

FDG3232SP-322" / 51mm50.8mm2"165 bar 2393 psi 40.08 + vat

In stock
