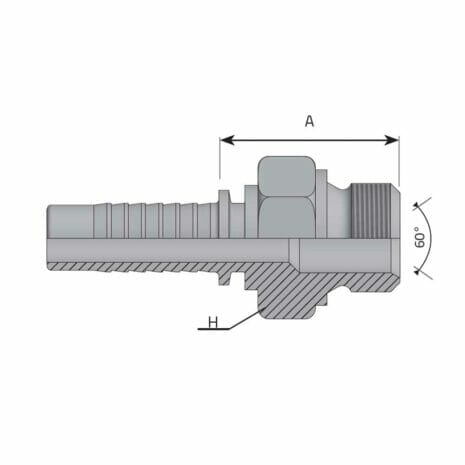

BSPP MALE – 60° CONE
- Type: Standard
- Connector Gender: Male
- Thread: BSPP
- Elbow: Straight
Loading...
Description
Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.
| SKU | D.N. | Hose Size | Diam | Thread | Pressure | Price | Stock | Buy |
|---|---|---|---|---|---|---|---|---|
| 0402002448 | -24 | 1 1 /2"/ 38.1mm | 38.1mm | 1.1/2" | 185 bar 2683 psi | € 26.96 + vat | In stock | |
| 0402000410 | -4 | 1/4" / 6.4mm | 6.4mm | 1/8" | 350 bar 5075 psi | € 2.63 + vat | In stock | |
| 0402000413 | -4 | 1/4" / 6.4mm | 6.4mm | 1/4" | 450 bar 6526 psi | € 1.65 + vat | In stock | |
| 0402000417 | -4 | 1/4" / 6.4mm | 6.4mm | 3/8" | 450 bar 6526 psi | € 2.79 + vat | In stock | |
| 0402000421 | -4 | 1/4" / 6.4mm | 6.4mm | 1/2" | 450 bar 6526 psi | € 4.70 + vat | In stock | |
| 0402000513 | -5 | 5/16" / 7.9mm | 7.9mm | 1/4" | 350 bar 5075 psi | € 2.92 + vat | In stock | |
| 0402000517 | -5 | 5/16" / 7.9mm | 7.9mm | 3/8" | 350 bar 5075 psi | € 2.02 + vat | In stock | |
| 0402000521 | -5 | 5/16" / 7.9mm | 7.9mm | 1/2" | 350 bar 5075 psi | € 3.34 + vat | In stock | |
| 0402000613 | -6 | 3/8" / 9.5mm | 9.5mm | 1/4" | 450 bar 6526 psi | € 2.83 + vat | In stock | |
| 0402000617 | -6 | 3/8" / 9.5mm | 9.5mm | 3/8" | 450 bar 6526 psi | € 2.30 + vat | In stock | |
| 0402000621 | -6 | 3/8" / 9.5mm | 9.5mm | 1/2" | 450 bar 6526 psi | € 2.83 + vat | In stock | |
| 0402000817 | -8 | 1/2" / 12.8mm | 12.8mm | 3/8" | 415 bar 6019 psi | € 3.45 + vat | In stock | |
| 0402000821 | -8 | 1/2" / 12.8mm | 12.8mm | 1/2" | 415 bar 6019 psi | € 2.98 + vat | In stock | |
| 0402000823 | -8 | 1/2" / 12.8mm | 12.8mm | 5/8" | 415 bar 6019 psi | € 5.51 + vat | In stock | |
| 0402000827 | -8 | 1/2" / 12.8mm | 12.8mm | 3/4" | 415 bar 6019 psi | € 5.67 + vat | In stock | |
| 0402001021 | -10 | 5/8" / 16mm | 16.0mm | 1/2" | 350 bar 5075 psi | € 6.43 + vat | In stock | |
| 0402001023 | -10 | 5/8" / 16mm | 16.0mm | 5/8" | 350 bar 5075 psi | € 5.28 + vat | In stock | |
| 0402001027 | -10 | 5/8" / 16mm | 16.0mm | 3/4" | 350 bar 5075 psi | € 5.39 + vat | In stock | |
| 0402001227 | -12 | 3/4" / 19mm | 19.0mm | 3/4" | 350 bar 5075 psi | € 6.04 + vat | In stock | |
| 0402001233 | -12 | 3/4" / 19mm | 19.0mm | 1" | 350 bar 5075 psi | € 11.70 + vat | In stock | |
| 0402001633 | -16 | 1" / 25.4mm | 25.4mm | 1" | 280 bar 4061 psi | € 10.68 + vat | In stock | |
| 0402001642 | -16 | 1" / 25.4mm | 25.4mm | 1.1/4" | 280 bar 4061 psi | € 26.20 + vat | In stock | |
| 0402002042 | -20 | 1 1/4" / 31.8mm | 31.8mm | 1.1/4" | 210 bar 3046 psi | € 20.13 + vat | In stock |
