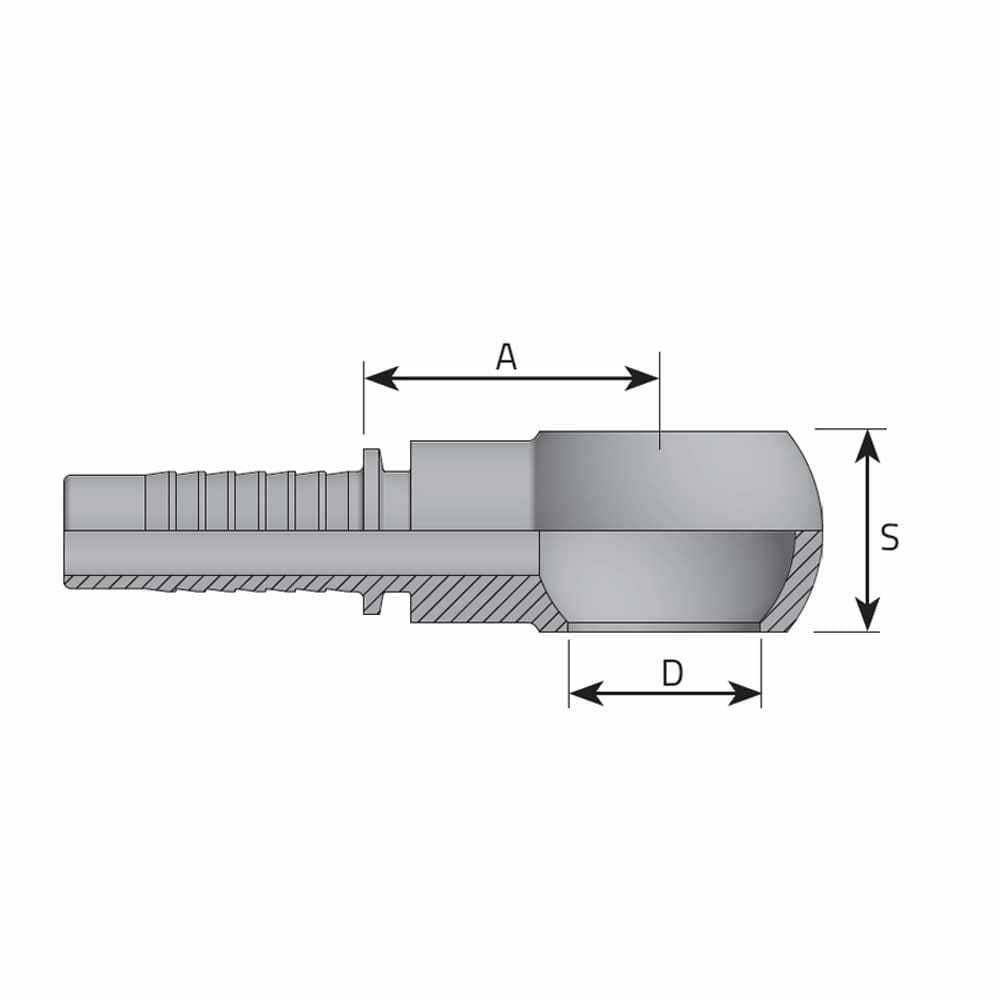

METRIC BANJO



  • Type: Standard
  • Connector Gender: Banjo
  • Thread: None
  • Elbow: Straight
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

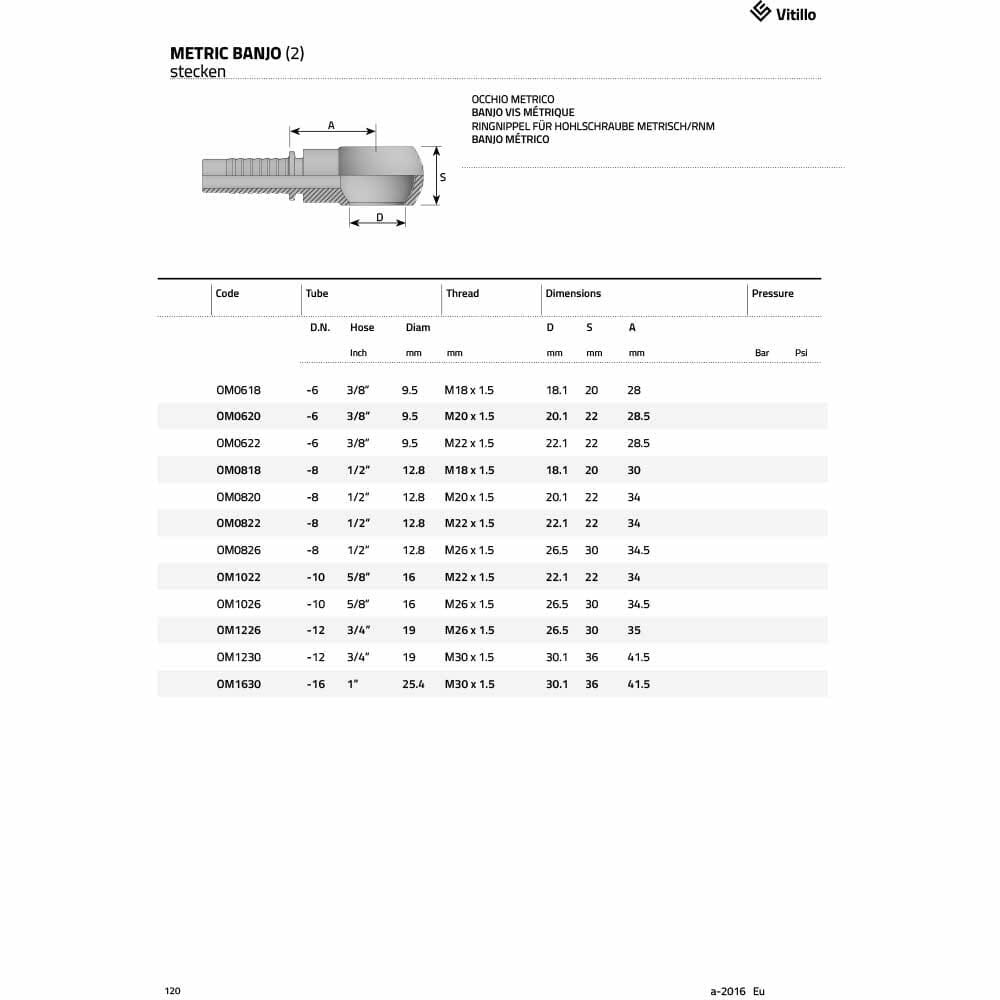

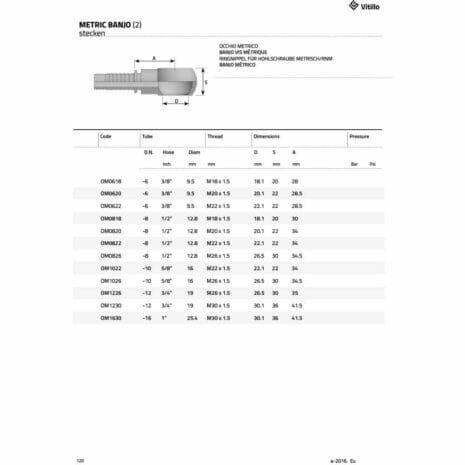

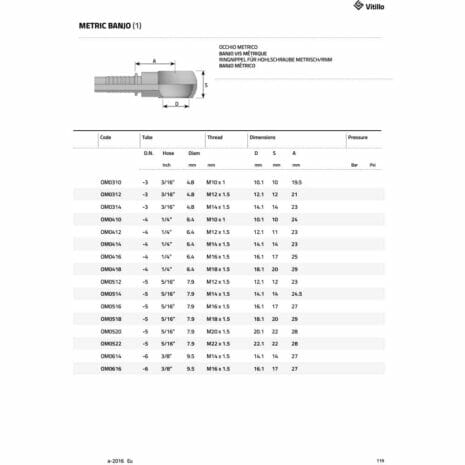

SKUD.N.Hose SizeDiamThreadPriceStockBuy
OM0614-63/8" / 9.5mm9.5mmM14 x 1.5 3.88 + vat

In stock

OM618-63/8" / 9.5mm9.5mmM18 x 1.5 3.82 + vat

In stock

OM820-81/2" / 12.8mm12.8mmM20 x 1.5 9.07 + vat

In stock

OM822-81/2" / 12.8mm12.8mmM22 x 1.5 5.24 + vat

In stock

OM1026-105/8" / 16mm16.0mmM26 x 1.5 16.07 + vat

In stock

OM1630-161" / 25.4mm25.4mmM30 x 1.5 33.59 + vat

In stock

OM0310-33/16" / 4.8mm4.8mmM10 X 1 2.72 + vat

In stock

OM0410-41/4" / 6.4mm6.4mmM10 X 1 2.79 + vat

In stock

OM0412-41/4" / 6.4mm6.4mmM12 x 1.5 2.55 + vat

In stock

OM0414-41/4" / 6.4mm6.4mmM14 x 1.5 3.89 + vat

In stock

OM416-41/4" / 6.4mm6.4mmM16 x 1.5 4.28 + vat

In stock

OM0514-55/16" / 7.9mm7.9mmM14 x 1.5 5.47 + vat

In stock

OM616-63/8" / 9.5mm9.5mmM16 x 1.5 3.34 + vat

In stock
