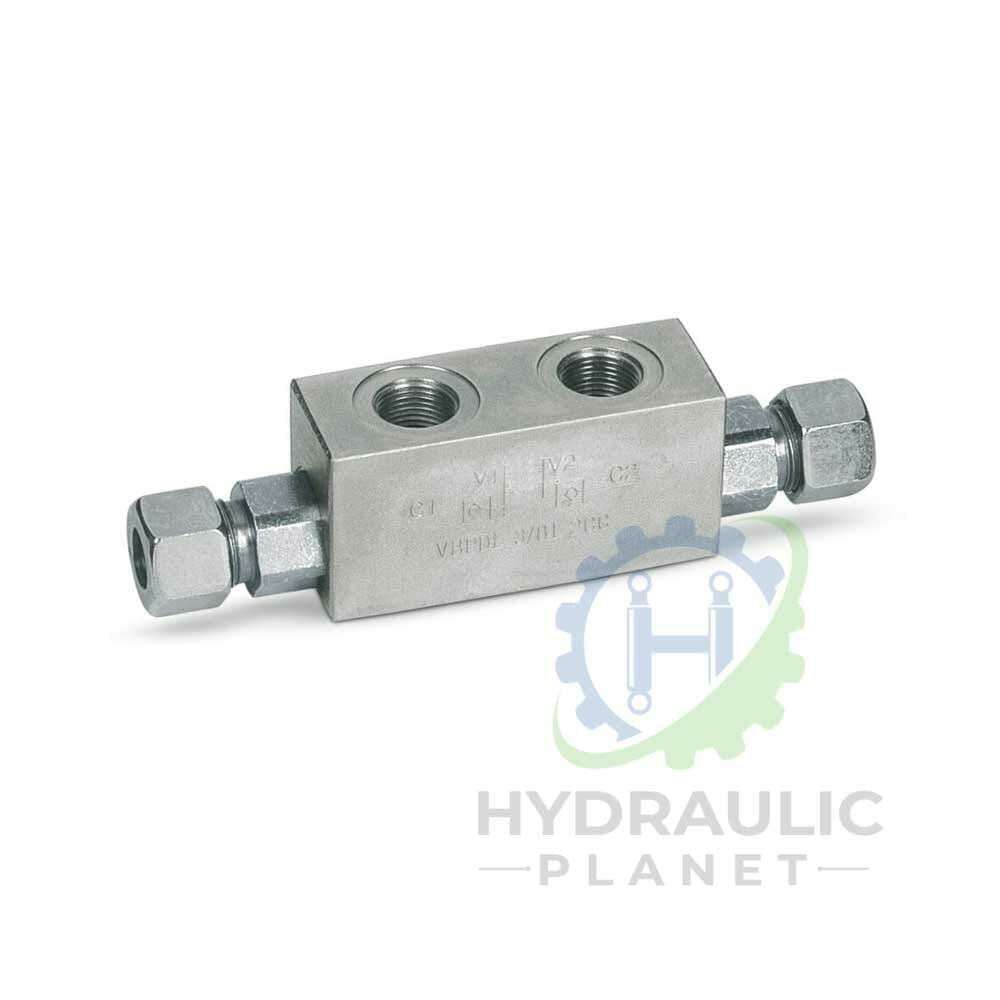

DOUBLE PILOT OPERATED CHECK VALVE FOR 12mm BANJO MOUNTING

TYPE: VBPDE

Use and Operation
Pilot check valves are used to block the actuator in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. Easily assembled on a cylinder.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications
Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator with a banjo.

Loading...

Description

Wide range of superior quality hydraulic valves designed to suit a wide range of applications. Delivering unsurpassed quality performance and high efficiency. Exceptionally durable in even the most demanding industrial and mobile applications.


SKUValve typePilot RatioMax Flow RateMax Working PressureCracking PressurePriceStockBuy
V0130VBPDE 3/8" L 2 CC1 : 5,535 l/min350 bar3 bar 52.64 + vat

In stock
