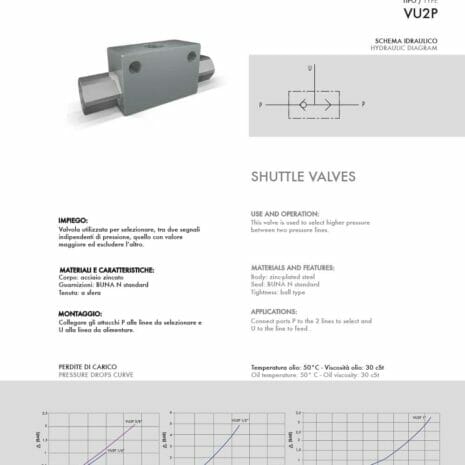

Use and Operation
This valve is used to select higher pressure between two pressure lines.
Materials and Features
- Body: zinc-plated steel
- Seal@ Buna N standard
- Tightness: ball type
Connect ports P to the 2 lines to select and U to the line to feed.
Wide range of superior quality hydraulic valves designed to suit a wide range of applications.
Delivering unsurpassed quality performance and high efficiency.
Exceptionally durable in even the most demanding industrial and mobile applications.
|SKU||Valve type||Max Flow Rate||Max Working Pressure||Price||Stock||Buy|
|V0680||VU2P 3/4"||110 l/min||350 bar||€ 68.71 + vat|
|V0668||VU2P 3/8"||45 l/min||450 bar||€ 43.98 + vat|
