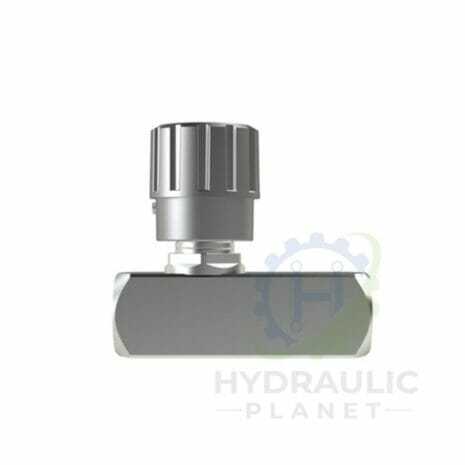

ONE DIRECTION ADJUSTABLE FLOW CONTROL VALVE – STU

€26.04 – €70.55 + vat

STU flow control valve is a one direction adjustable valve/ restrictor for in line installations. The passage on the opposite side is free.

It allows for a flow adjustment of oil passing through and lets you control the speed of hydraulic cylinder or a motor. The valves do not have an integrated hydraulic compensator and the set flow is affected by the pressure drops across the valve. The valves can be easily installed inline inside the hydraulic circuit through the two BPSS threads ports. Depending on the chosen size, the STU-BSPP valves can be installed inside circuits with max working pressure of 400 bar (5800 PSI).

The external body is made of steel, and it is protected from oxidation by zinc plating treatment. The inner components are made of steel, hardened and ground where necessary. The knobs are made of aluminum.

Rapid dispatch for all orders!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Stripe
  • Visa Card
  • MasterCard
  • PayPal
SKU: N/A Categories: ,
Share

APPLY FOR A TRADE ACCOUNT TO AVAIL FOR SPECIAL DISCOUNTS HERE

SKUD nThreadMax flow rateMax working pressurePriceStockBuy
STU3403/4"80 l/min400 bar€70.55 + vat

In stock

STU1201/2"50 l/min400 bar€37.80 + vat

In stock

STU3803/8"30 l/min400 bar€26.04 + vat

In stock

STU1401/4"15 l/min400 bar€30.24 + vat

In stock

Weight N/A
