VEQ 2 WAY 50/50 FLOW DIVIDER

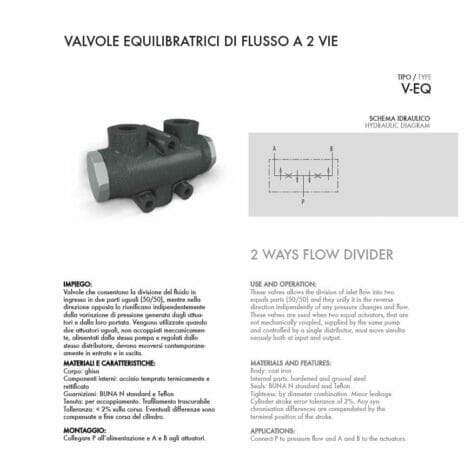

Allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction independently of any pressure changes and flow.

Body: cast iron – steel
Internal parts: hardened and ground steel
Seals: BUNA N standard and Teflon
Poppet Type: By diameter combination. Minor leakage. Cylinder stroke error tolerance of 2%. Any synchronization differences are compensated by the terminal position of the stroke.
Loading...

Description

Top quality hydraulic flow dividers to suit a wide range of applications, delivering unsurpassed quality performance and high efficiency. Exceptionally durable in even the most demanding industrial and mobile applications.

SKUValve typeMin Flow RateMax Flow RateWorking PressureMax Working PressurePriceStockBuy
V1005V-EQ 2525 l/min40 l/min250 bar300 bar 271.22 + vat

In stock

V1003V-EQ 2010 l/min20 l/min250 bar300 bar 259.64 + vat

In stock
