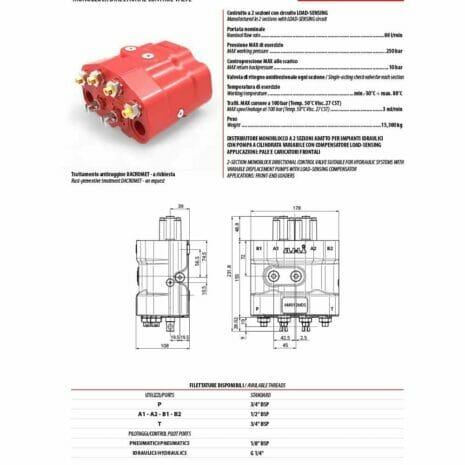

TRACTOR FRONT LOADER VALVE- LOAD SENSING FOR CLOSED CENTRE SYSTEMS

2 section monoblock directional control valve suitable for hydraulic systems with variable displacement pumps with load sensing compensator.

Applications: Front end loader

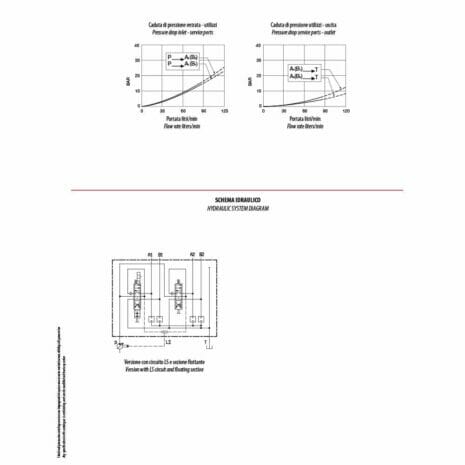

• Manufactured in 2 sections with load sensing circuit
• Nominal flow rate 80 l/min
• Max working pressure 250 bar
• Max return back pressure 10 bar
• Including check valve for each section
• Working temperature -30°C ÷ max. 80°C
• Max spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) is 3 ml/min
• Weight 15,300 kg

Read more about closed and open hydraulic systems.
