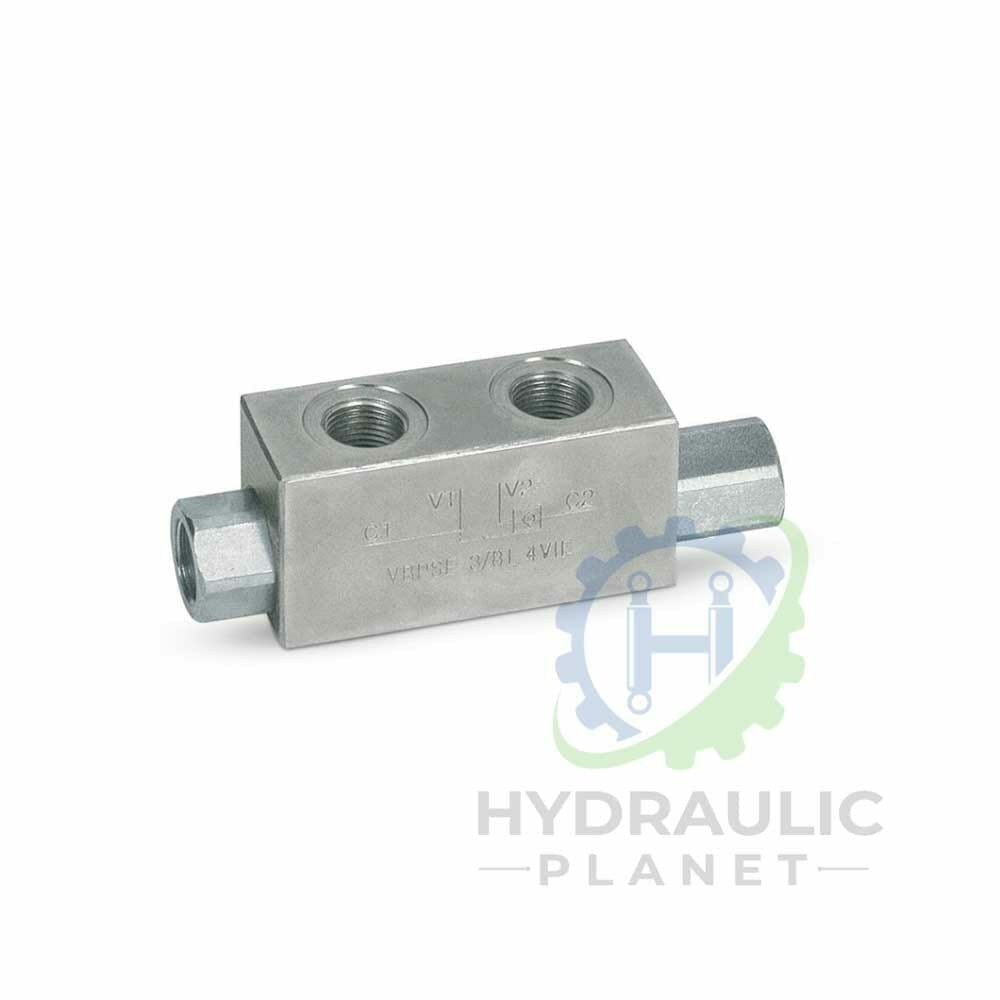

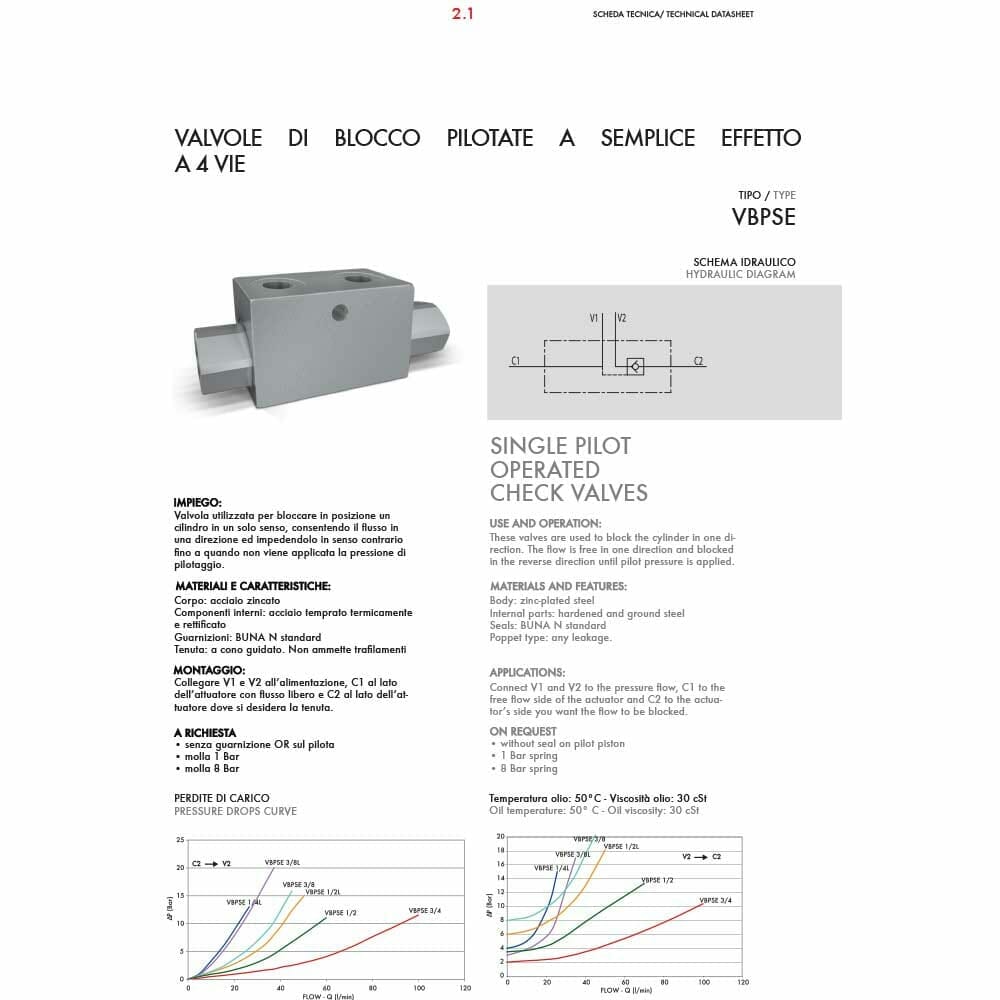

SINGLE PILOT OPERATED CHECK VALVE

TYPE: VBPSE

Use and Operation
These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  any leakage

Applications
Connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and C2 to the actuator’s side you want the flow to be blocked.

Loading...

Description

Wide range of superior quality hydraulic valves designed to suit a wide range of applications.

Delivering unsurpassed quality performance and high efficiency.

Exceptionally durable in even the most demanding industrial and mobile applications.

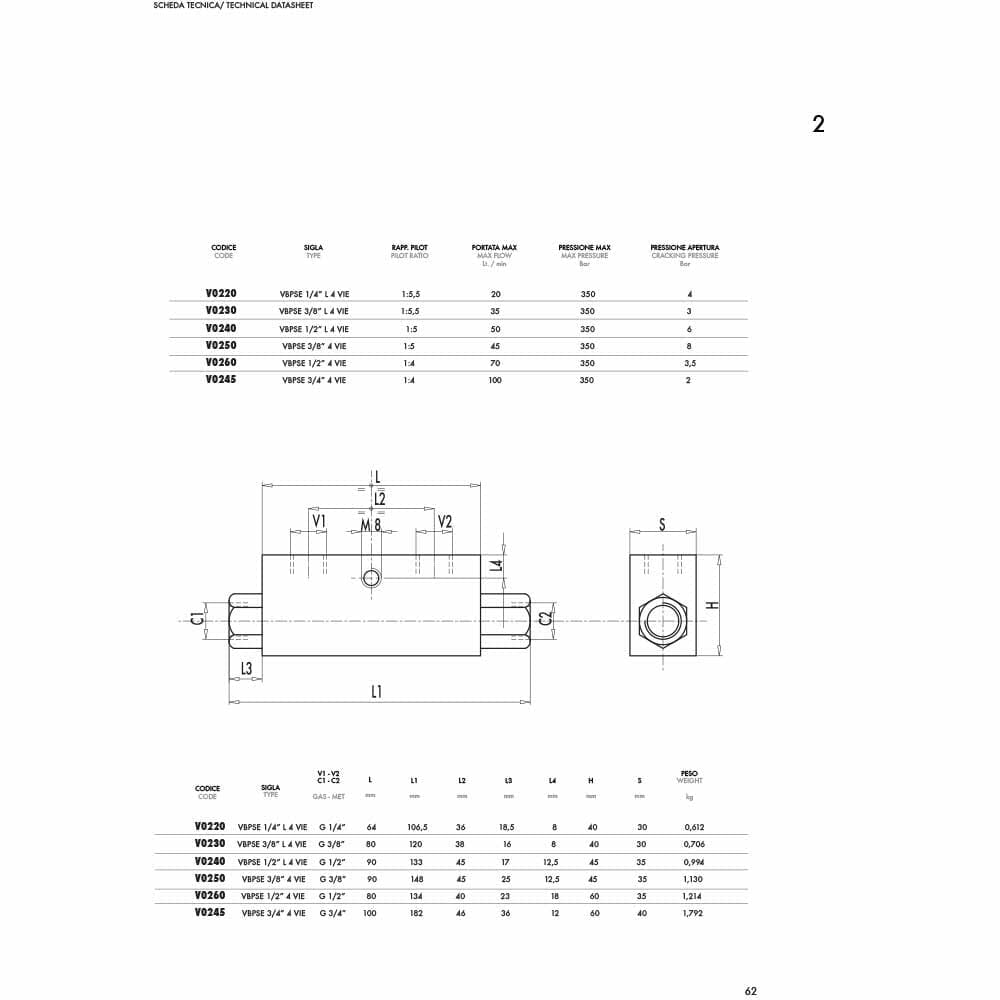

SKUValve typePilot RatioMax Flow RateMax Working PressureCracking PressurePriceStockBuy
V0250VBPDE 3/8" 4 VIE1 : 545 l/min350 bar8 bar 53.24 + vat

Out of stock

V0260VBPDE 1/2" 4 VIE1 : 470 l/min350 bar3.5 bar 53.58 + vat

In stock
