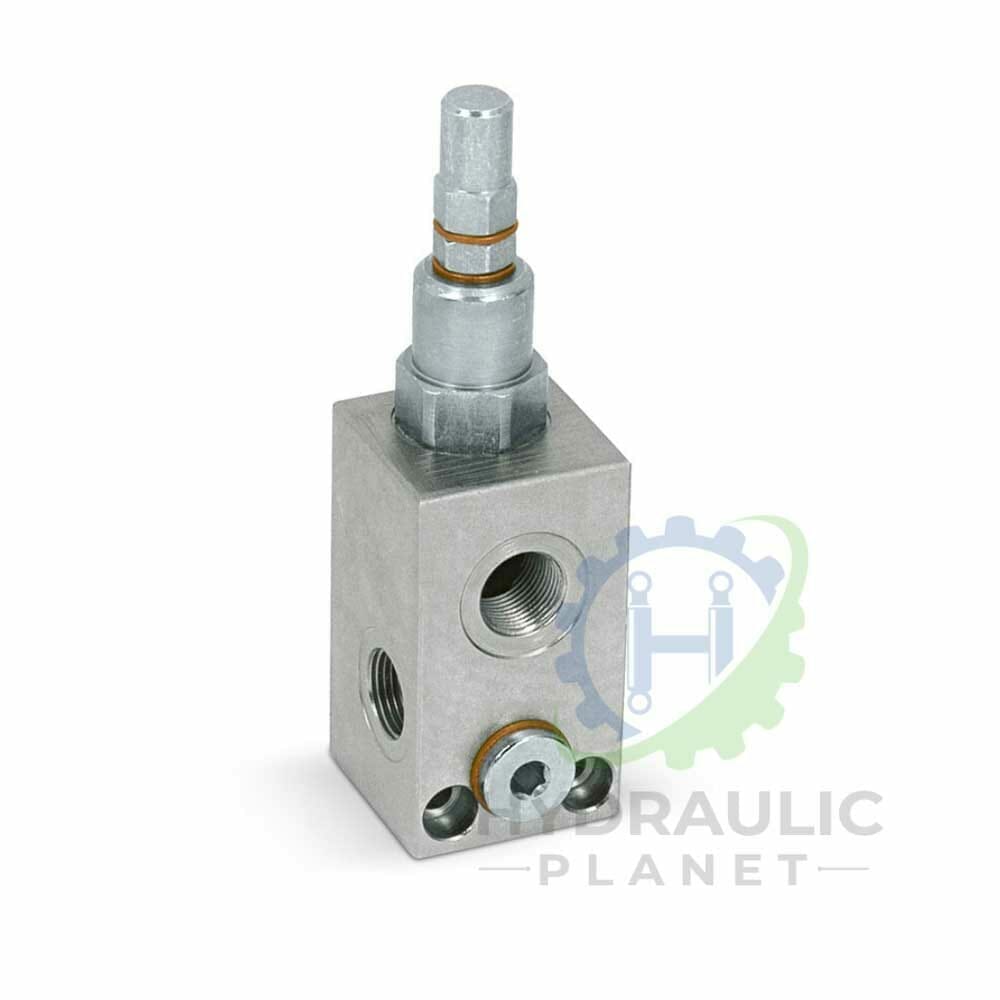

RELIEF VALVE

VMP

Use and Operation
The relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve open allowing pressure relief in order not to exceed this setting.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

Applications
Connect circuit port with pressure to P and tank port to T. Port P is reversible..

Loading...

Description

Wide range of superior quality hydraulic valves designed to suit a wide range of applications.

Delivering unsurpassed quality performance and high efficiency.

Exceptionally durable in even the most demanding industrial and mobile applications.

SKUValve typeMax Flow RatePriceStockBuy
V0720-230BARVMP 3/4"90 l/min 90.92 + vat

In stock

V0710VMP 1/2"70 l/min 50.85 + vat

In stock

V0700VMP 3/8"45 l/min 42.04 + vat

In stock
