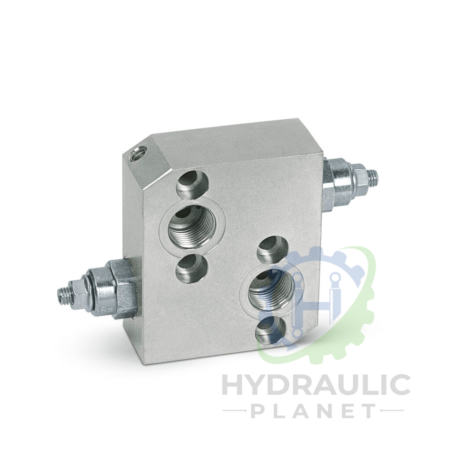

DUAL CROSS RELIEF VALVE FLANGABLE ON DANFOSS MOTORS OMP/OMR

TYPE: VAU OMP/OMR

Use and Operation
Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/hydraulic motor. It’s ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well. Direct flange is ideal for Danfoss motors type OMP-OMR  and provides a maximum safety, very low pressure drops and solid installation.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

Applications
Flange M1 and M2 directly to the motor and connect ports V1 and V2 to pressure flow.

Loading...

Description

Wide range of superior quality hydraulic valves designed to suit a wide range of applications.

Delivering unsurpassed quality performance and high efficiency.

Exceptionally durable in even the most demanding industrial and mobile applications.

SKUValve typeMax Flow RatePriceStockBuy
V0500VAU 1/2" DE OMP/ OMR60 l/min 84.47 + vat

In stock
