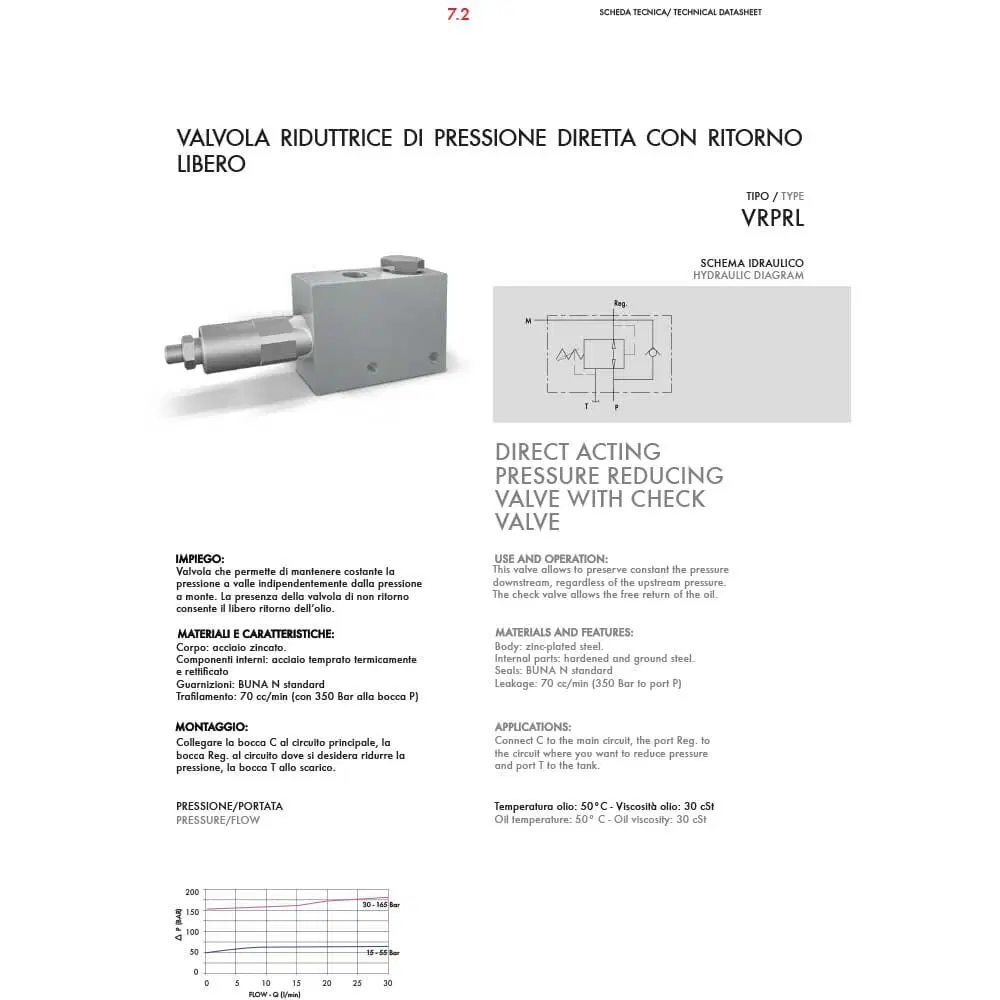

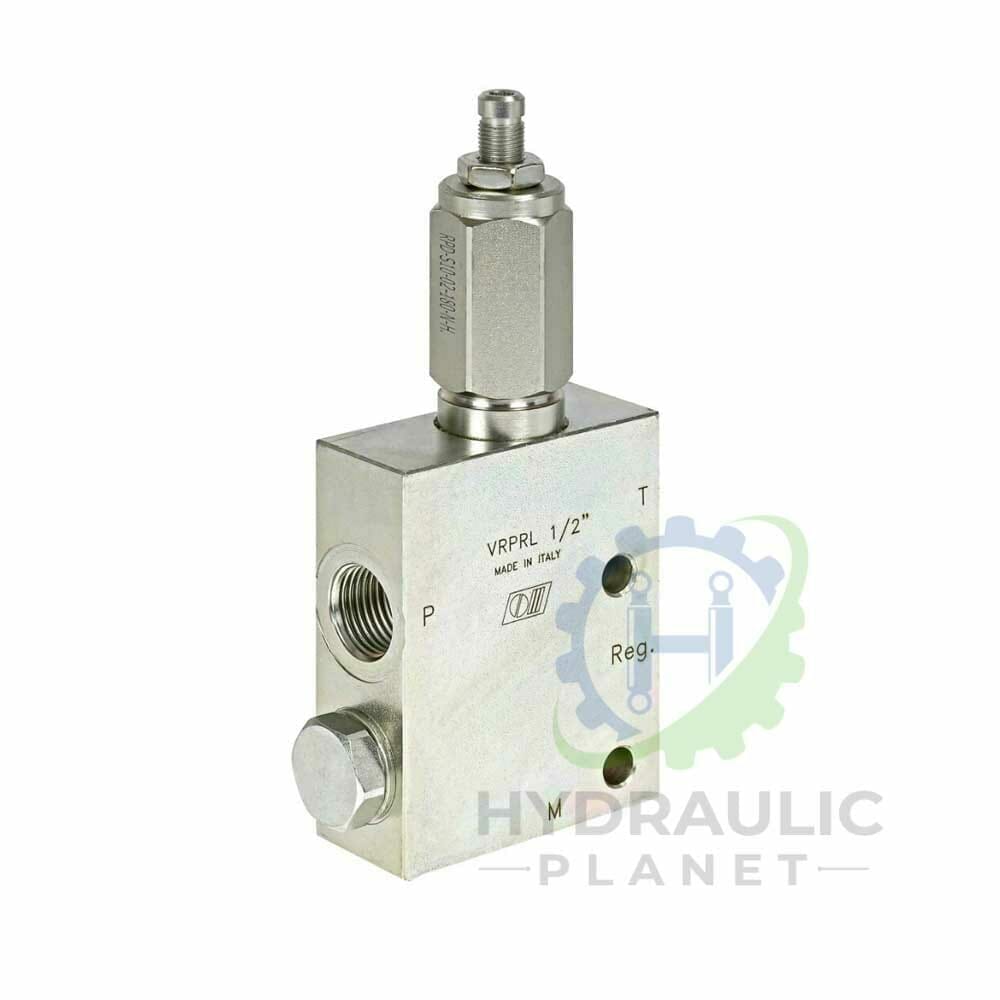

DIRECT ACTING PRESSURE REDUCING VALVE WITH CHECK VALVE
Use and Operation
This valve allows to preserve constant the pressure downstream, regardless of the upstream pressure. The check valve allows the free return of the oil.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: 70 cc/min (350 Bar to port P)
Connect P to the main circuit, the port Reg. to the circuit where you want to reduce pressure and port T to the tank.
Wide range of superior quality hydraulic valves designed to suit a wide range of applications.
Delivering unsurpassed quality performance and high efficiency.
Exceptionally durable in even the most demanding industrial and mobile applications.
|SKU||Max Flow Rate||Max Working Pressure||Pressure Reducing||Price||Stock||Buy|
|V0705-T-40BAR||30 l/min||350 bar||40 bar||€ 270.03 + vat|
