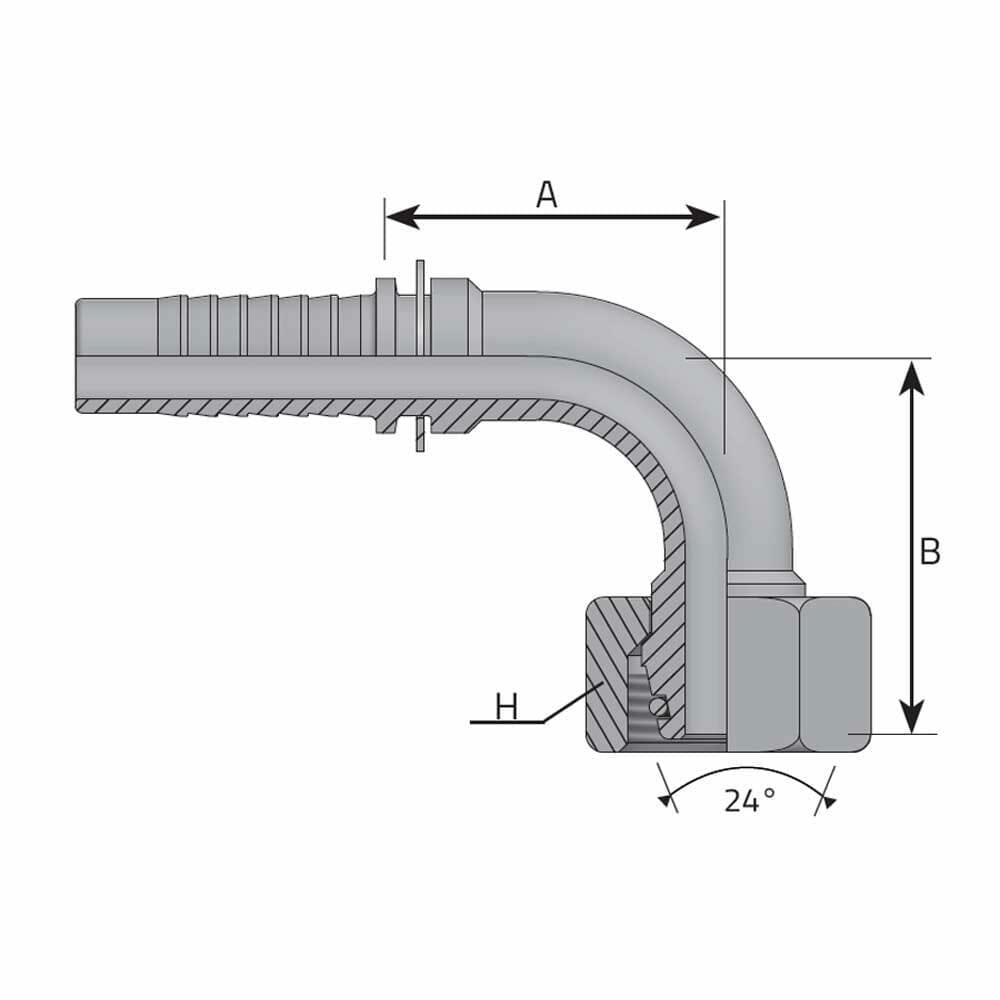

METRIC FEMALE 24° CONE – 90° ELBOW – L TYPE...



  • Type: Standard
  • Connector Gender: Female
  • Thread: DIN
  • Elbow: 90° Elbow
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUD.N.Hose SizeDiamThreadPressurePriceStockBuy
0434240826-81/2" / 12.8mm12.8mmM26 x 1.5160 bar 2320 psi 10.15 + vat

In stock

0434240516-55/16" / 7.9mm7.9mmM16 x 1.5250 bar 3625 psi 2.72 + vat

In stock

0434240616-63/8" / 9.5mm9.5mmM16 x 1.5250 bar 3625 psi 4.59 + vat

In stock

0434240618-63/8" / 9.5mm9.5mmM18 x 1.5250 bar 3625 psi 3.29 + vat

In stock

0434240622-63/8" / 9.5mm9.5mmM22 x 1.5250 bar 3625 psi 5.51 + vat

In stock

0434240822-81/2" / 12.8mm12.8mmM22 x 1.5250 bar 3625 psi 4.96 + vat

In stock

0434241026-105/8" / 16mm16.0mmM26 x 1.5160 bar 2320 psi 5.90 + vat

In stock

0434241226-123/4" / 19mm19.0mmM26 x 1.5160 bar 2320 psi 12.33 + vat

In stock

0434241230-123/4" / 19mm19.0mmM30 x 2160 bar 2320 psi 9.07 + vat

In stock

0434241636-161" / 25.4mm25.4mmM36 x 2100 bar 1450 psi 17.21 + vat

In stock

0434242045-201 1/4" / 31.8mm31.8mmM45 x 2100 bar 1450 psi 29.40 + vat

In stock

0434242452-241 1 /2"/ 38.1mm38.1mmM52 x 2100 bar 1450 psi 31.53 + vat

In stock

0434240312-33/16" / 4.8mm4.8mmM12 x 1.5250 bar 3625 psi 4.28 + vat

In stock

0434240314-33/16" / 4.8mm4.8mmM14 x 1.5250 bar 3625 psi 4.96 + vat

In stock

0434240412-41/4" / 6.4mm6.4mmM12 x 1.5250 bar 3625 psi 3.89 + vat

In stock

0434240414-41/4" / 6.4mm6.4mmM14 x 1.5250 bar 3625 psi 3.09 + vat

In stock

0434240418-41/4" / 6.4mm6.4mmM18 x 1.5250 bar 3625 psi 3.18 + vat

In stock

0434240416-41/4" / 6.4mm6.4mmM16 x 1.5250 bar 3625 psi 3.34 + vat

In stock
