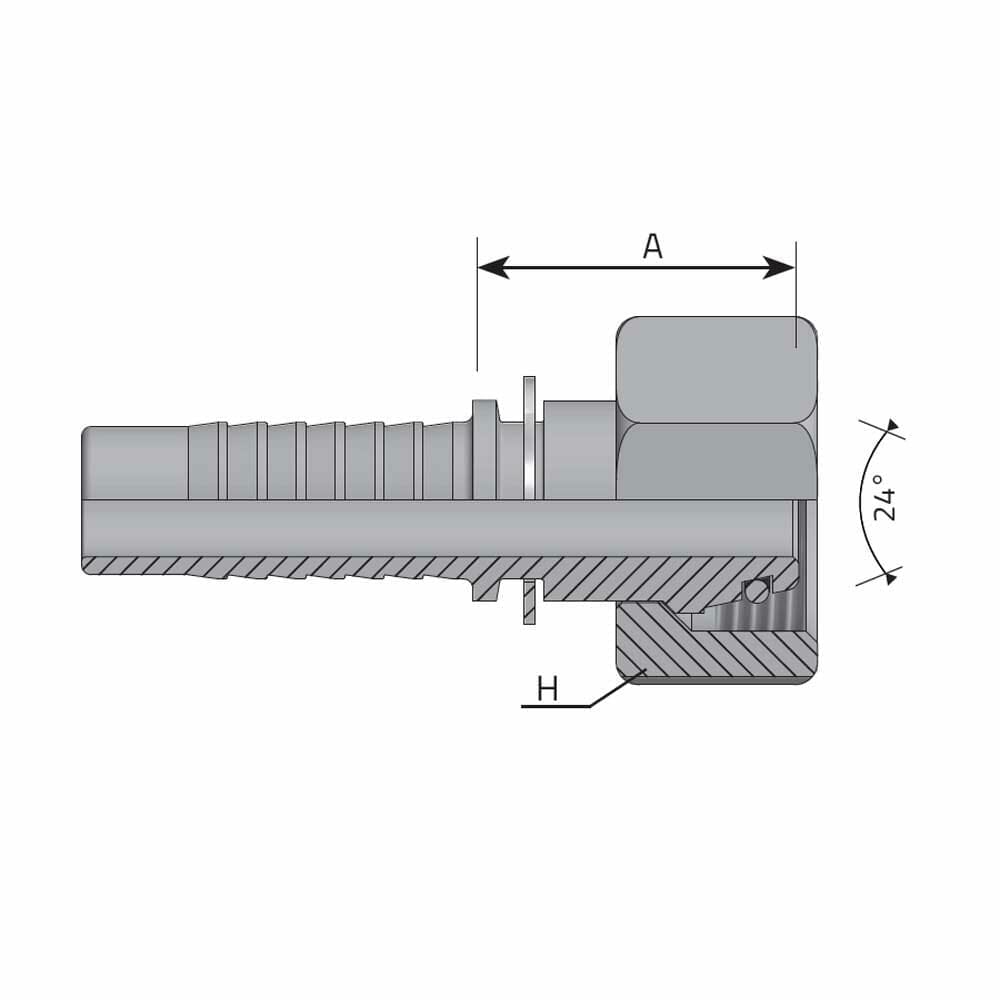

METRIC FEMALE 24° CONE – L TYPE (LIGHT)



  • Type: Standard
  • Connector Gender: Female
  • Thread: DIN
  • Elbow: Straight
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

* CRIMPED NUT

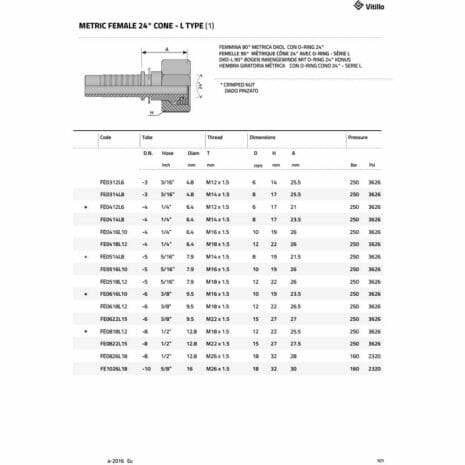

SKUD.N.Hose SizeDiamThreadPressurePriceStockBuy
0422240616-63/8" / 9.5mm9.5mmM16 x 1.5250 bar 3625 psi 2.83 + vat

In stock

0422240312-33/16" / 4.8mm4.8mmM12 x 1.5250 bar 3625 psi 2.26 + vat

In stock

0422240314-33/16" / 4.8mm4.8mmM14 x 1.5250 bar 3625 psi 2.72 + vat

In stock

0422240412-41/4" / 6.4mm6.4mmM12 x 1.5250 bar 3625 psi 3.38 + vat

In stock

0422240414-41/4" / 6.4mm6.4mmM14 x 1.5250 bar 3625 psi 1.65 + vat

In stock

0422240416-41/4" / 6.4mm6.4mmM16 x 1.5250 bar 3625 psi 1.50 + vat

In stock

0422240418-41/4" / 6.4mm6.4mmM18 x 1.5250 bar 3625 psi 2.26 + vat

In stock

0422240516-55/16" / 7.9mm7.9mmM16 x 1.5250 bar 3625 psi 1.50 + vat

In stock

0422240518-55/16" / 7.9mm7.9mmM18 x 1.5250 bar 3625 psi 1.85 + vat

In stock

0422240618-63/8" / 9.5mm9.5mmM18 x 1.5250 bar 3625 psi 1.67 + vat

In stock

0422240622-63/8" / 9.5mm9.5mmM22 x 1.5250 bar 3625 psi 2.95 + vat

In stock

0422240822-81/2" / 12.8mm12.8mmM22 x 1.5250 bar 3625 psi 2.52 + vat

In stock

0422240826-81/2" / 12.8mm12.8mmM26 x 1.5160 bar 2320 psi 3.93 + vat

In stock

0422241026-105/8" / 16mm16.0mmM26 x 1.5160 bar 2320 psi 4.17 + vat

In stock

0422241226-123/4" / 19mm19.0mmM26 x 1.5160 bar 2320 psi 6.38 + vat

In stock

0422241230-123/4" / 19mm19.0mmM30 x 2160 bar 2320 psi 5.44 + vat

In stock

042224163-161" / 25.4mm25.4mmM36 x 2100 bar 1450 psi 10.09 + vat

In stock

0422242045-201 1/4" / 31.8mm31.8mmM45 x 2100 bar 1450 psi 12.92 + vat

In stock

0422242452-241 1 /2"/ 38.1mm38.1mmM52 x 2100 bar 1450 psi 22.46 + vat

In stock
