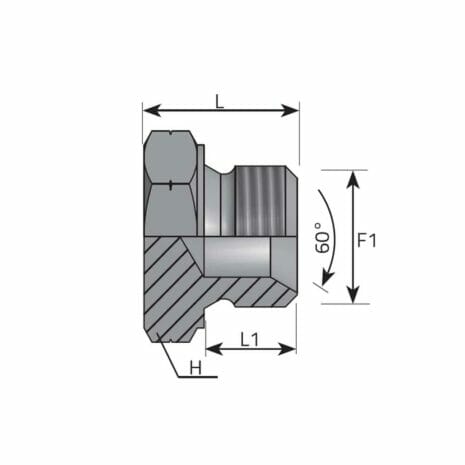

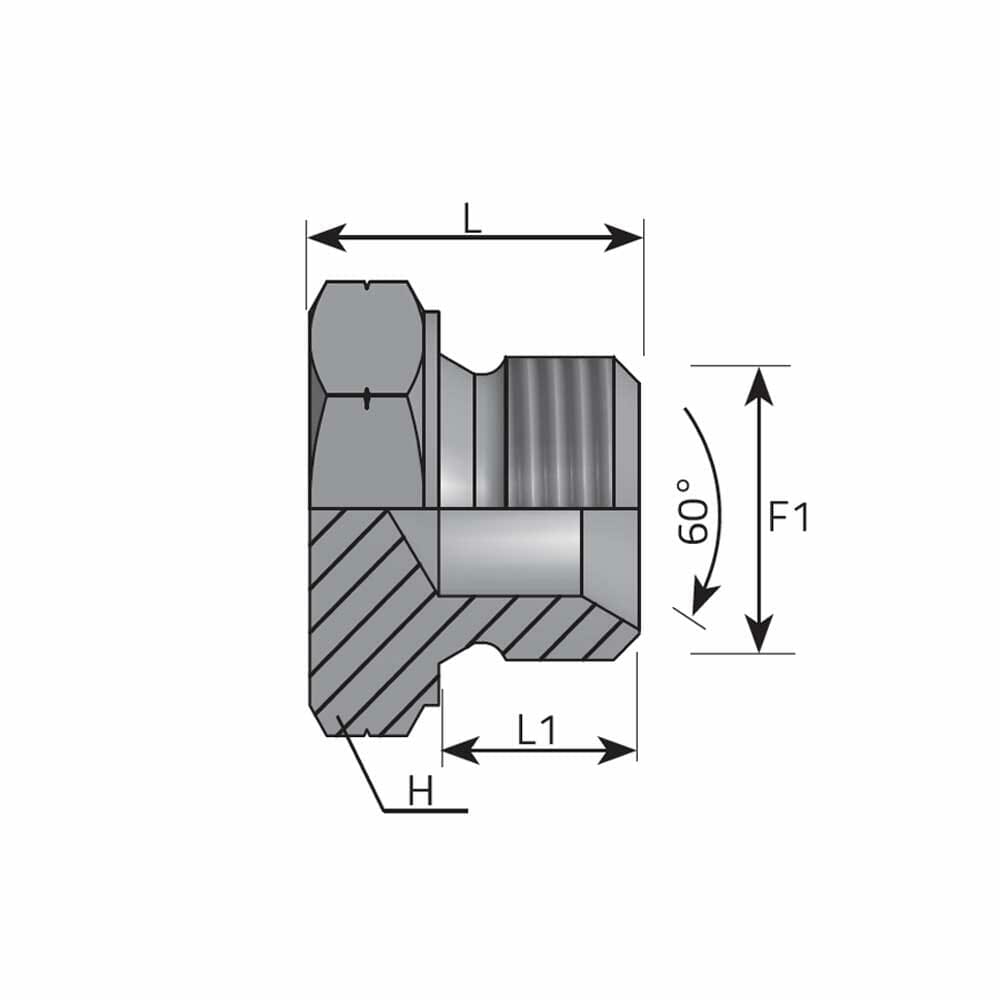

METRIC MALE PLUG



  • Connector gender F1: Male
  • Thread F1: METRIC
  • Elbow: Straight
Loading...

Description

Complete range of mild steel high pressure hydraulic adaptors for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUF1HL1LPressurePriceStockBuy
152713000030X1.538mm18.0mm29mm200 bar 2900 psi 4.11 + vat

In stock

152711000010X114mm9.50mm15.5mm350 bar 5075 psi 0.94 + vat

In stock

152711200012X1.517mm11.0mm18mm350 bar 5075 psi 0.94 + vat

In stock

152711400014X1.519mm11.0mm18mm350 bar 5075 psi 0.91 + vat

In stock

152711600016X1.522mm12.50mm20.5mm350 bar 5075 psi 1.19 + vat

In stock

152711800018X1.524mm14.0mm22.0mm315 bar 4568 psi 1.33 + vat

In stock

152712000020X1.527mm14.0mm24mm315 bar 4568 psi 1.50 + vat

In stock

152712200022X1.527mm14.0mm24mm315 bar 4568 psi 1.42 + vat

In stock

152712400024X1.530mm16.0mm25mm315 bar 4568 psi 2.55 + vat

In stock

152712600026X1.532mm16.0mm26mm250 bar 3625 psi 2.37 + vat

In stock
