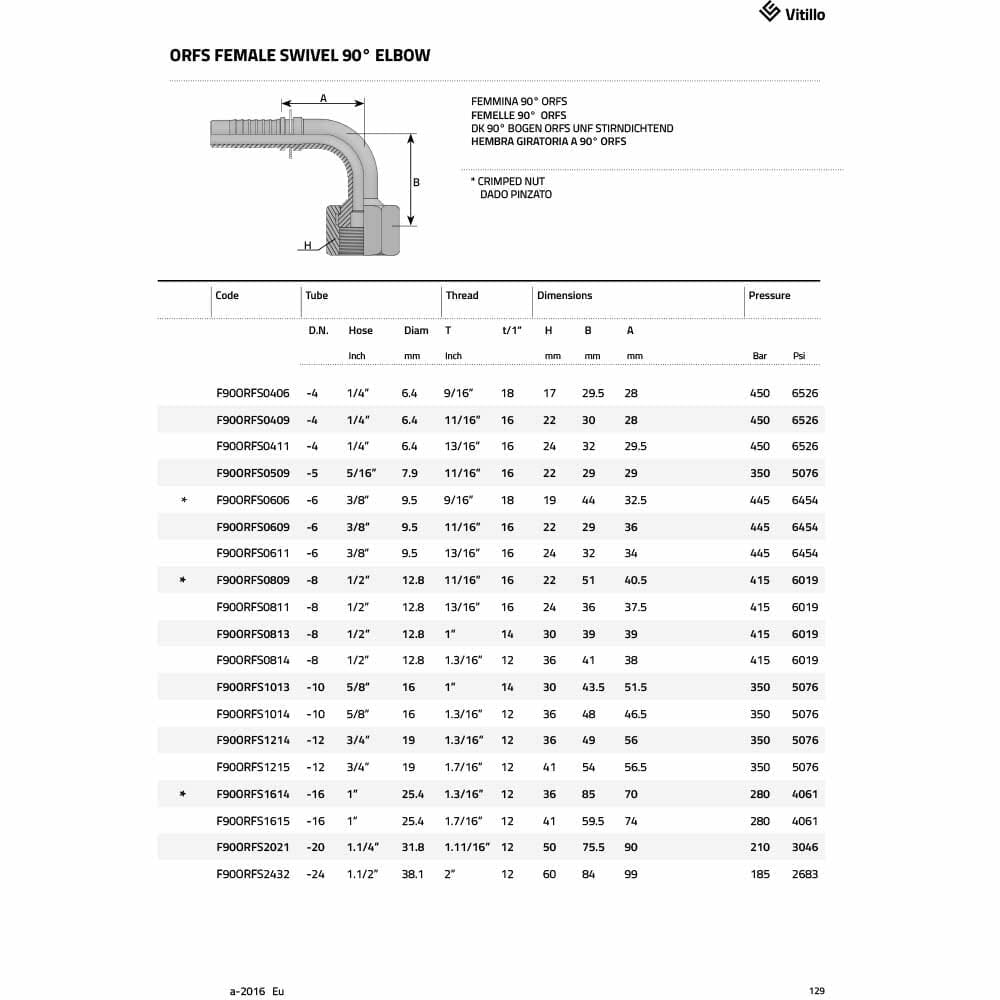

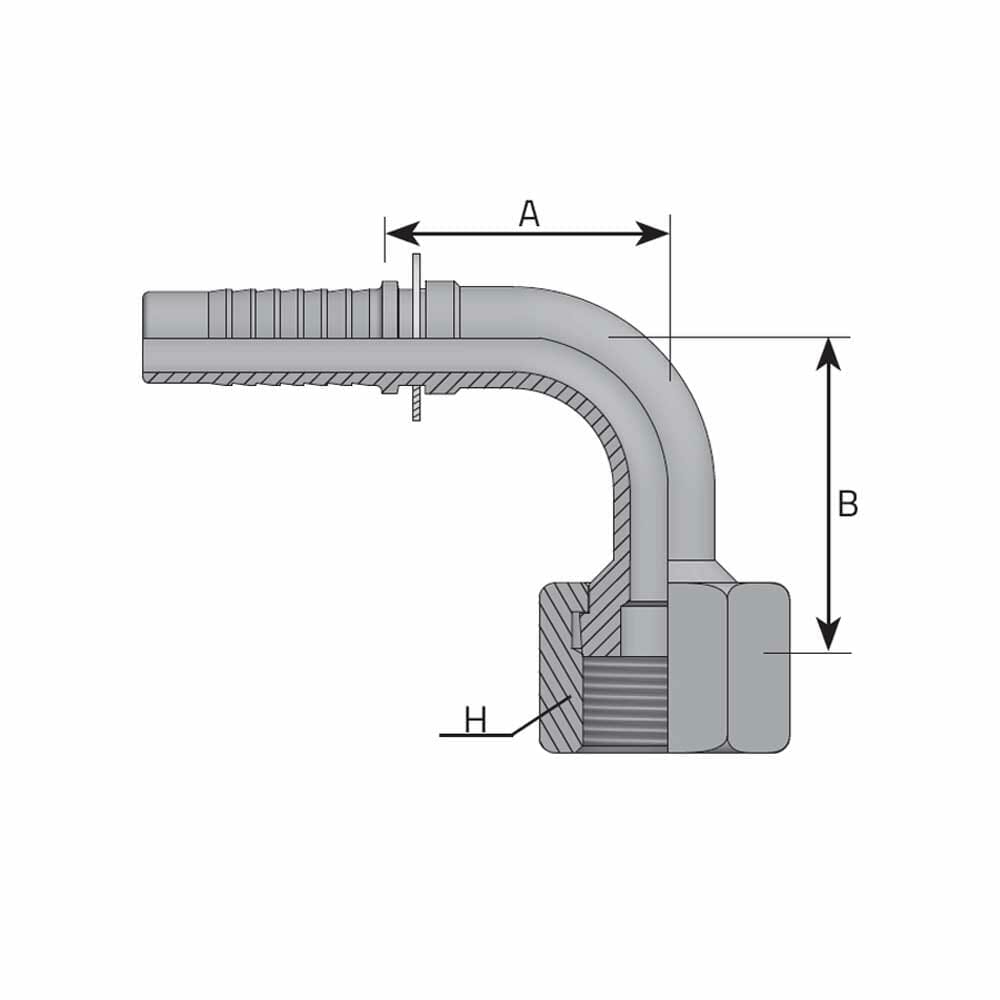

ORFS FEMALE SWIVEL 90° ELBOW



  • Type: Standard
  • Connector Gender: Female
  • Thread: ORFS
  • Elbow: 90° Elbow
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUD.N.Hose SizeDiamThreadPressurePriceStockBuy
0485030617-63/8" / 9.5mm9.5mm11/16"445 bar 6454 psi 5.58 + vat

In stock

0485030621-63/8" / 9.5mm9.5mm13/16"445 bar 6454 psi 8.37 + vat

In stock

0485030821-81/2" / 12.8mm12.8mm13/16"415 bar 6019 psi 7.09 + vat

In stock

0485030825-81/2" / 12.8mm12.8mm1"415 bar 6019 psi 7.22 + vat

In stock

0485030830-81/2" / 12.8mm12.8mm1 3/16"415 bar 6019 psi 9.55 + vat

In stock

0485031025-105/8" / 16mm16.0mm1"350 bar 5075 psi 7.96 + vat

In stock

0485031030-105/8" / 16mm16.0mm1 3/16"350 bar 5075 psi 37.54 + vat

In stock

0485031230-123/4" / 19mm19.0mm1 3/16"350 bar 5075 psi 16.51 + vat

In stock

0485031234-123/4" / 19mm19.0mm1.7/16"350 bar 5075 psi 18.03 + vat

In stock

0485031634-161" / 25.4mm25.4mm1.7/16"280 bar 4061 psi 20.99 + vat

In stock

0485032042-201 1/4" / 31.8mm31.8mm1.11/16"210 bar 3046 psi 31.27 + vat

In stock

0485030414-41/4" / 6.4mm6.4mm9/16"450 bar 6526 psi 10.42 + vat

In stock

0485030417-41/4" / 6.4mm6.4mm11/16"450 bar 6526 psi 12.32 + vat

In stock
