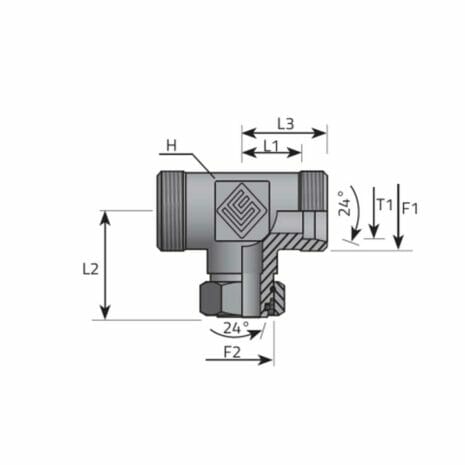

T ADAPTOR DIN MALE/ DIN MALE/ DIN FEMALE



No O-RING

  • Connector gender F1: Male
  • Thread F1: DIN
  • Connector gender F2: Female
  • Thread F2: DIN
  • Elbow: T adapter
Loading...

Description

Complete range of mild steel high pressure hydraulic adaptors for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

SKUF1F2SeriesT1HPressurePriceStockBuy
TME25SFE25SP36X236X2Heavy25mm36mm400 bar 5801 psi 73.17 + vat

In stock

TME20SFE20SP30X230X2Heavy20mm27mm400 bar 5801 psi 49.18 + vat

In stock

TME16SFE16SP24X1.524X1.5Heavy16mm24mm400 bar 5801 psi 31.55 + vat

In stock

TME14SFE14SP22X1.522X1.5Heavy14mm19mm630 bar 9136 psi 32.97 + vat

In stock

TME12SFE12SP20X1.520X1.5Heavy12mm17mm630 bar 9136 psi 21.65 + vat

In stock

TME10SFE10SP18X1.518X1.5Heavy10mm17mm630 bar 9136 psi 17.44 + vat

In stock

TME08SFE08SP16X1.516X1.5Heavy8mm14mm630 bar 9136 psi 17.35 + vat

In stock

TME06SFE06SP14X1.514X1.5Heavy6mm12mm630 bar 9136 psi 16.16 + vat

In stock

TME06LFE06LP12X1.512X1.5Light6mm12mm315 bar 4568 psi 13.74 + vat

In stock

TME08LFE08LP14X1.514X1.5Light8mm12mm315 bar 4568 psi 14.38 + vat

In stock

TME10LFE10LP16X1.516X1.5Light10mm14mm315 bar 4568 psi 16.51 + vat

In stock

TME12LFE12LP18X1.518X1.5Light12mm17mm315 bar 4568 psi 16.90 + vat

In stock

TME15LFE15LP22X1.522X1.5Light15mm19mm315 bar 4568 psi 22.09 + vat

In stock

TME18LFE18LP26X1.526X1.5Light18mm24mm315 bar 4568 psi 29.81 + vat

In stock

TME22LFE22LP30X230X2Light22mm27mm160 bar 2320 psi 44.11 + vat

In stock

TME28LFE28LP36X236X2Light28mm36mm160 bar 2320 psi 68.26 + vat

In stock

TME35LFE35LP45X245X2Light35mm41mm160 bar 2320 psi 90.70 + vat

In stock
