TOYOTA STYLE FEMALE – 90° ELBOW



  • Type: Standard
  • Connector Gender: Female
  • Thread: JIS
  • Elbow: 90° Elbow
Loading...

Description

Complete range of mild steel high pressure hydraulic hose inserts for flexible hydraulic hoses in accordance with the standards ISO 12151 SAE J516. Wide variety of threads, types and sizes.

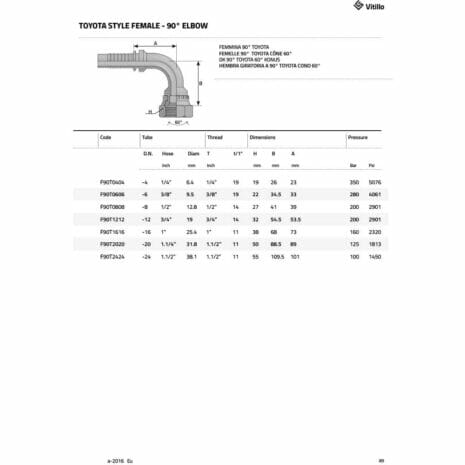

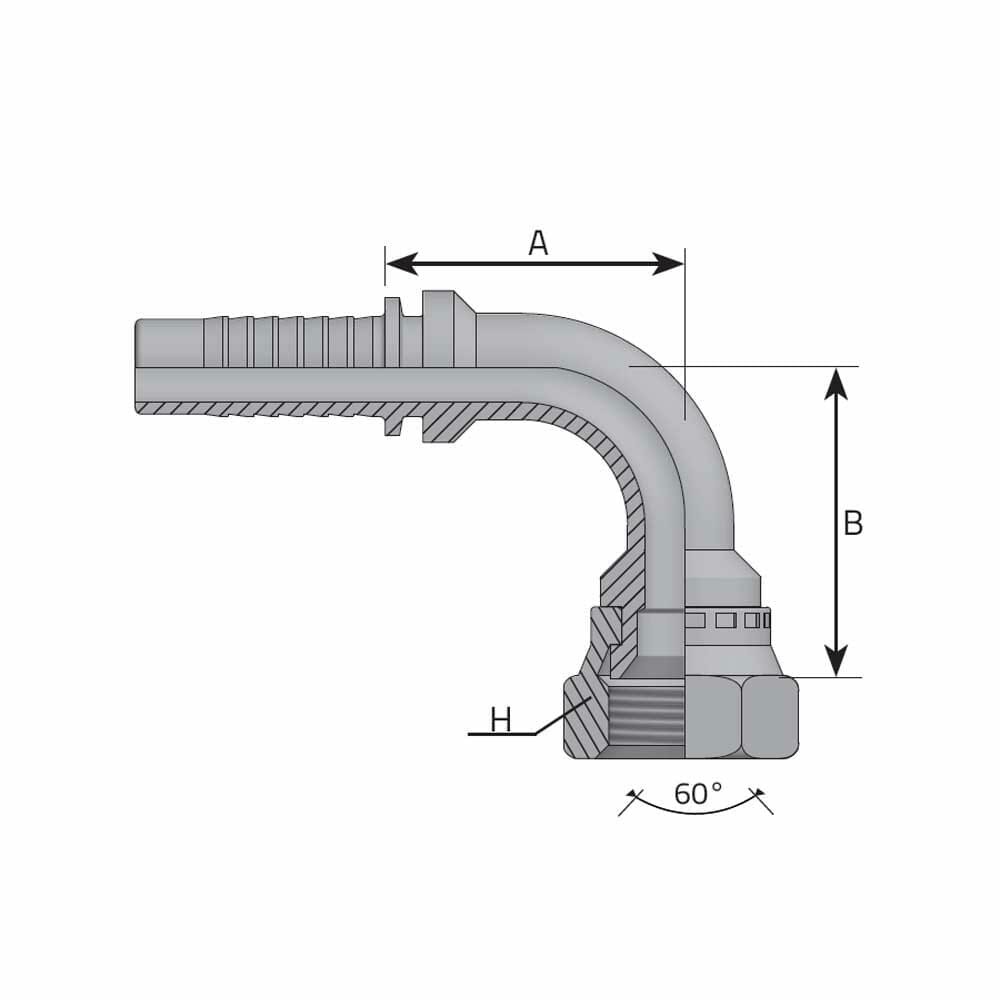

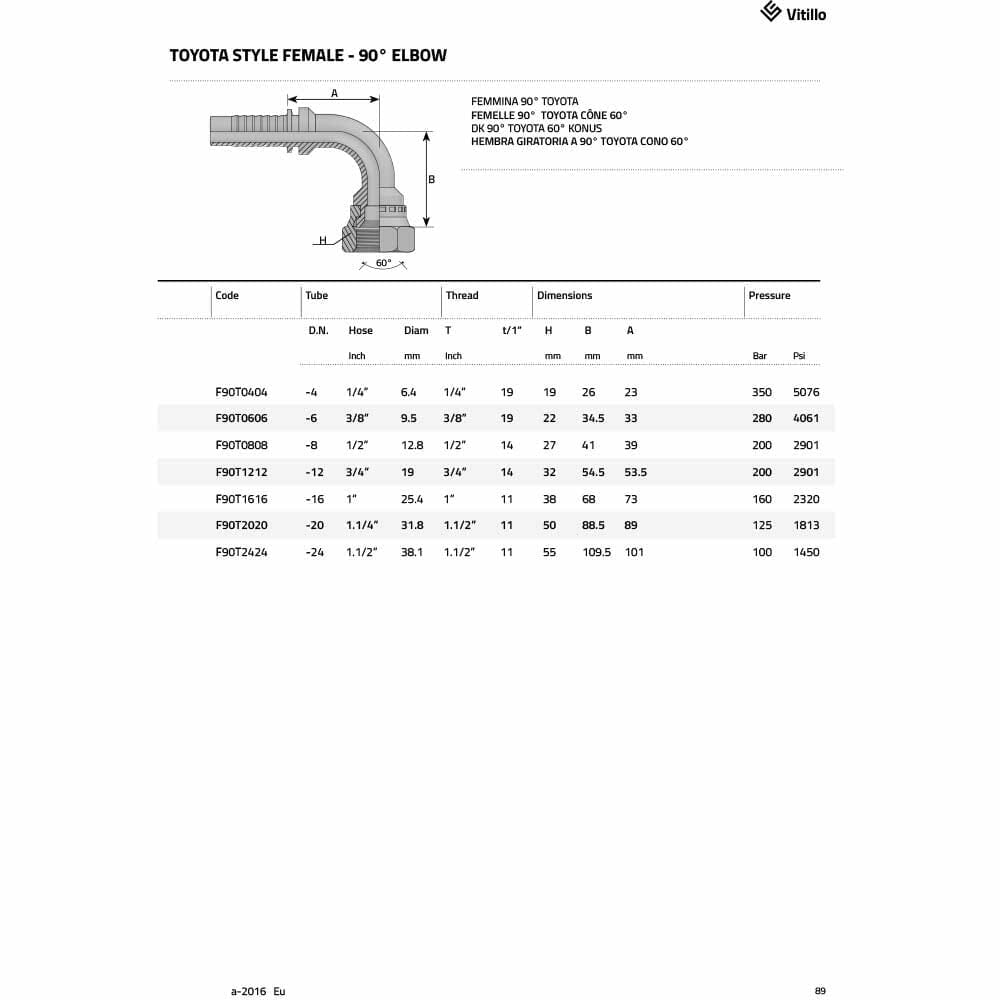

SKUD.N.Hose SizeDiamThreadHBAPressurePriceStockBuy
F90T0404-41/4" / 6.4mm6.4mm1/4"19mm26mm23mm350 bar 5075 psi 6.04 + vat

In stock

F90T0606-63/8" / 9.5mm9.5mm3/8"22mm34.5mm33mm280 bar 4061 psi 6.41 + vat

In stock

F90T0808-81/2" / 12.8mm12.8mm1/2"27mm41mm39mm200 bar 2900 psi 7.18 + vat

In stock

F90T1212-123/4" / 19mm19.0mm3/4"32mm54.5mm53.5mm200 bar 2900 psi 9.58 + vat

In stock

F90T1616-161" / 25.4mm25.4mm1"38mm68mm73mm160 bar 2320 psi 25.05 + vat

In stock
