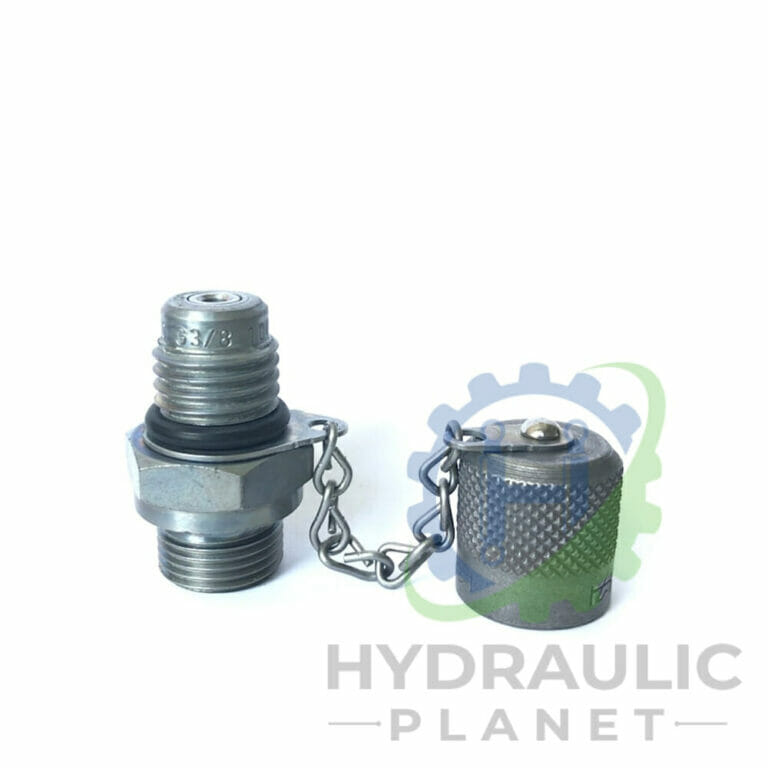

TEST POINT
June12,2020November18,2024
1620 Minimess test point with metal cap and anti vibration O-ring.
- Max. working pressure: 63 Mpa (630 bar) according to ISO 15171-2
- Material: Free cutting steel coupling body and cap (1.0718)
- Sealing: NBR
- Vibration: NBR
- Screw in thread: BSP
- Media application: hydraulic and other oils of a mineral oil basis
- Temperature ranges for applications with metal cap (standard): -25°C to +100°C, for a short time, can be also used up to +120°C
Read More TEST POINT

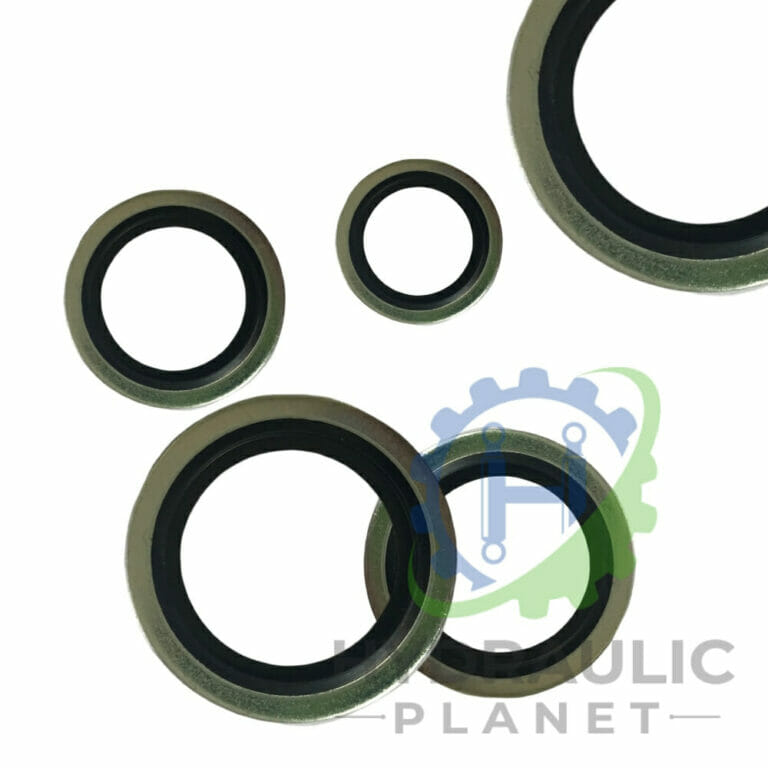

BONDED SEAL BSP & METRIC
June10,2020November18,2024

Self centered bonded seal.

Outside Ring: Zinc Plated Mild Steel

Inner Ring: Rubber Elastomer

Read More BONDED SEAL BSP & METRIC

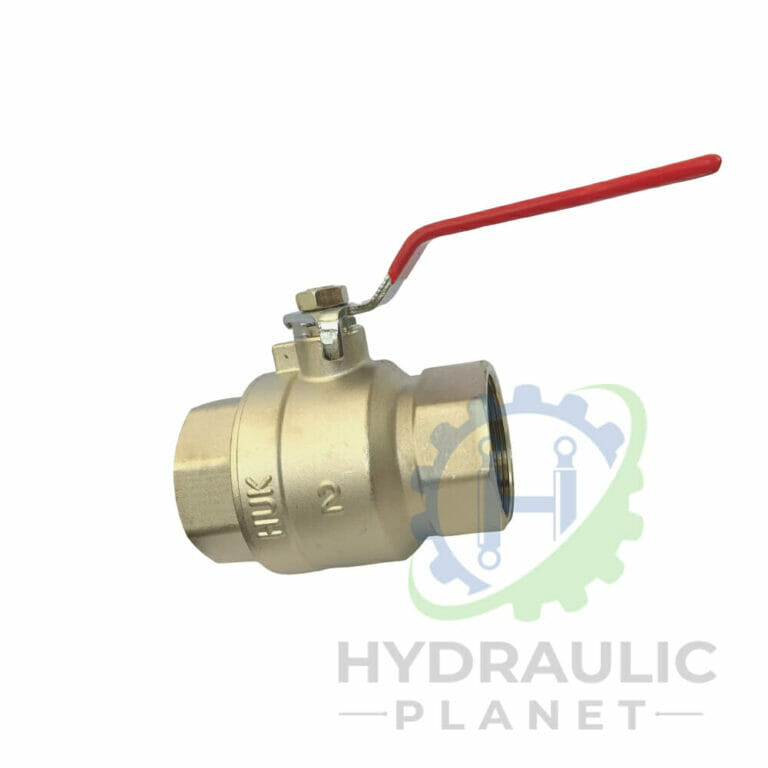

BALL VALVE BSP FEMALE- BSP FEMALE LEVER BV12
May28,2020November18,2024
- Nickel plated brass body
- Lever handle in steel with plastic sleeve
- PTFE seats
- NBR O-rings
- Working temperature: 0°C to +90°C
- Maximum working pressure: 40 bar
Read More BALL VALVE BSP FEMALE- BSP FEMALE LEVER BV12

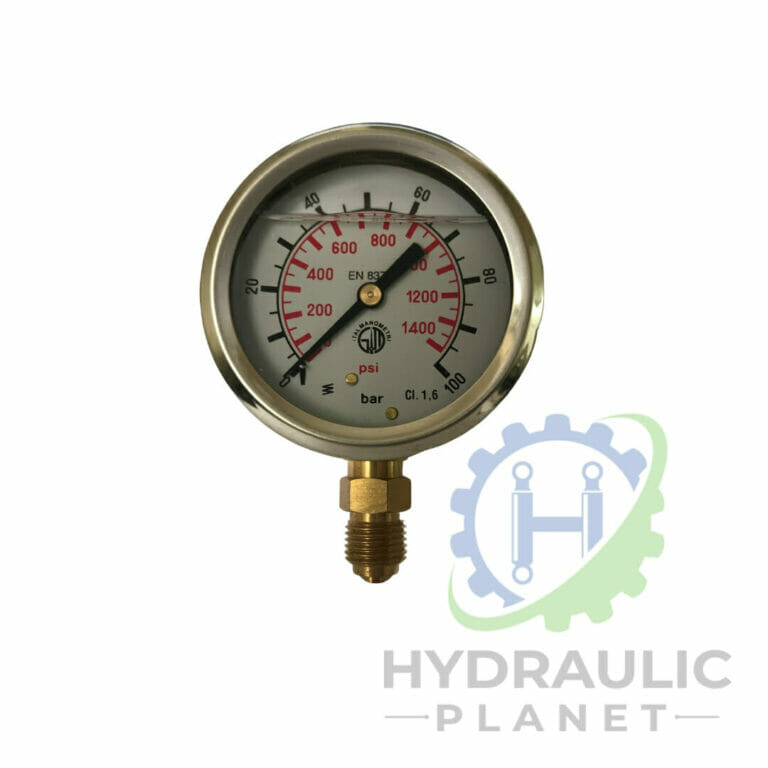

63MM DIAMETER GLYCERINE FILLED PRESSURE GAUGE
May19,2020March14,2025
- Case and bezel: stainless steel AISI 304.
- Window: shatter resistant acrylic.
- Damping Liquid: bidistilled glycerine.
- Connection: brass. G1/4″ BSP or NPT Male threaded.
- Sensitive element: Copper alloy Bourdon tube up to 70 bar, phosphor bronze for pressure from 100 to 690 bar.
- Mechanism: high precision watchmakers brass.
- Joints: soldered in tin alloy or silver alloy for pressure above 60 bar.
- Indicator: tempered steel.
- Dial: stoved enamel on aluminium.
- Accuracy: class 1.6.
- Scale: PSI/ bar
- Operating temperature: -20°C/ + 60°C
Read More 63MM DIAMETER GLYCERINE FILLED PRESSURE GAUGE

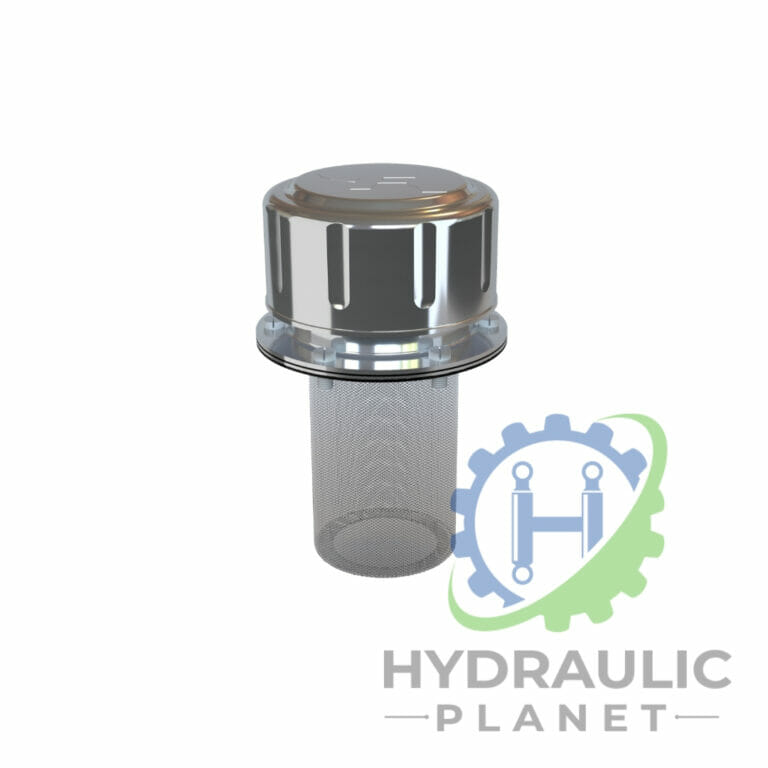

FILLER BREATHER WITH FLANGE FT SERIES
May18,2020October22,2025

Filler breather with flange.

Filter Media: polyurethane (air filtration 10 µm)

Cover: chrome plated steel, Ø75

Mounting Type: flange

Basket: zinc plated steel, H: 80mm

Flange: zinc plated steel

No valve included

No padlock holder included

Gaskets: NBR

Read More FILLER BREATHER WITH FLANGE FT SERIES

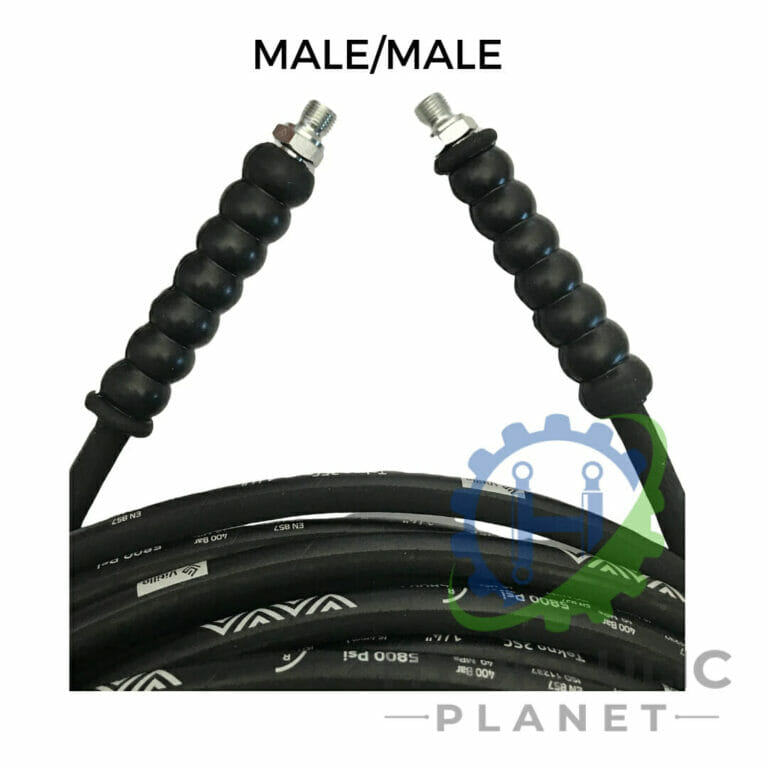

1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP MALE FITTINGS
May14,2020November12,2024
1/4″ 2 wire 420 bar hose complete with 3/8″ BSP Male fittings and protective cuffs.

Ready made pressure washer hose assemblies.

Available lengths: 10mt, 20mt, 30mt

Hose Type: Standard 1/4″ (6.4 mm I.D.) braided hose
- Max Working Pressue: 420bar
- Available Cover Color: Black
- Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
- Tube: Oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel braids
- Cover: Standard cover: synthetic rubber
- Type Approval: MSHA
- Hose features: Reduced bending radius
- Fittings: BSP Male
- Featuring protective rubber cuffs
Read More 1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP MALE FITTINGS

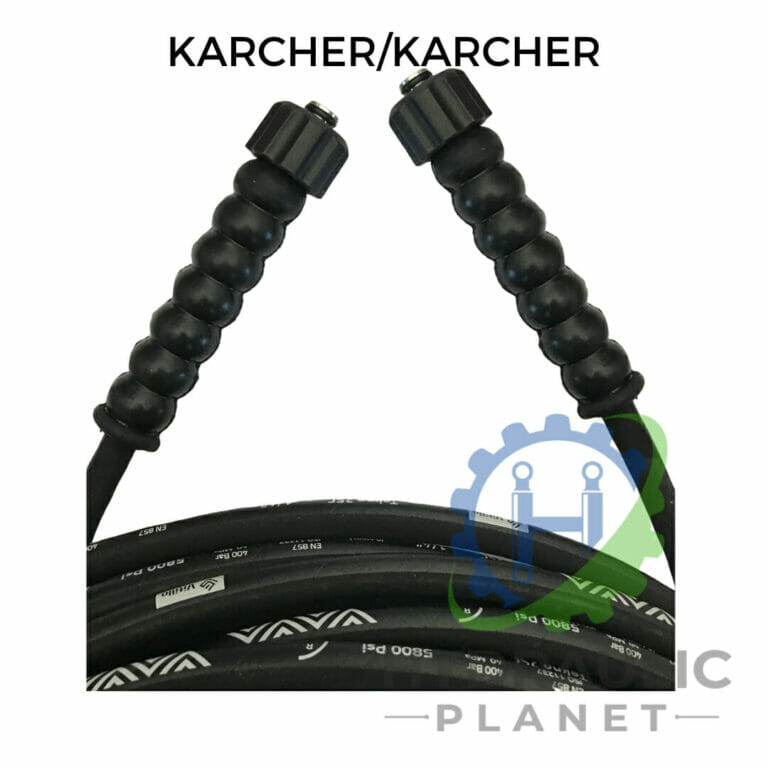

1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH FEMALE KARCHER FITTINGS
May14,2020November12,2024
1/4″ 2 wire 420 bar hose complete with M22 Female Karcher fittings and protective cuffs.

Ready made pressure washer hose assemblies.

Available lengths: 10mt, 20mt, 30mt

Hose Type: Standard 1/4″ (6.4 mm I.D.) braided hose
- Max Working Pressue: 420bar
- Available Cover Color: Black
- Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
- Tube: Oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel braids
- Cover: Standard cover: synthetic rubber
- Type Approval: MSHA
- Hose features: Reduced bending radius
- Fittings: Female Karcher
- Featuring protective rubber cuffs
Read More 1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH FEMALE KARCHER FITTINGS

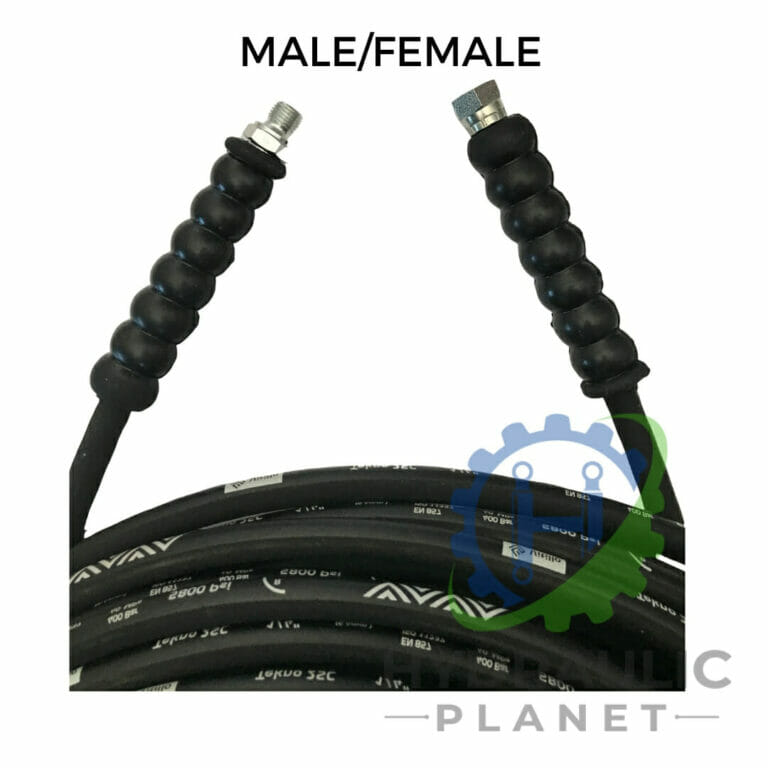

1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP MALE + BSP FEMALE
May14,2020November12,2024
1/4″ 2 wire 420 bar hose complete with 3/8″ BSP Male and 3/8″ BSP Female fittings and protective cuffs.

Ready made pressure washer hose assemblies.

Available lengths: 10mt, 20mt, 30mt

Hose Type: Standard 1/4″ (6.4 mm I.D.) braided hose
- Max Working Pressue: 420bar
- Available Cover Color: Black
- Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
- Tube: Oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel braids
- Cover: Standard cover: synthetic rubber
- Type Approval: MSHA
- Hose features: Reduced bending radius
- Fittings: BSP Male + BSP Female
- Featuring protective rubber cuffs
Read More 1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP MALE + BSP FEMALE

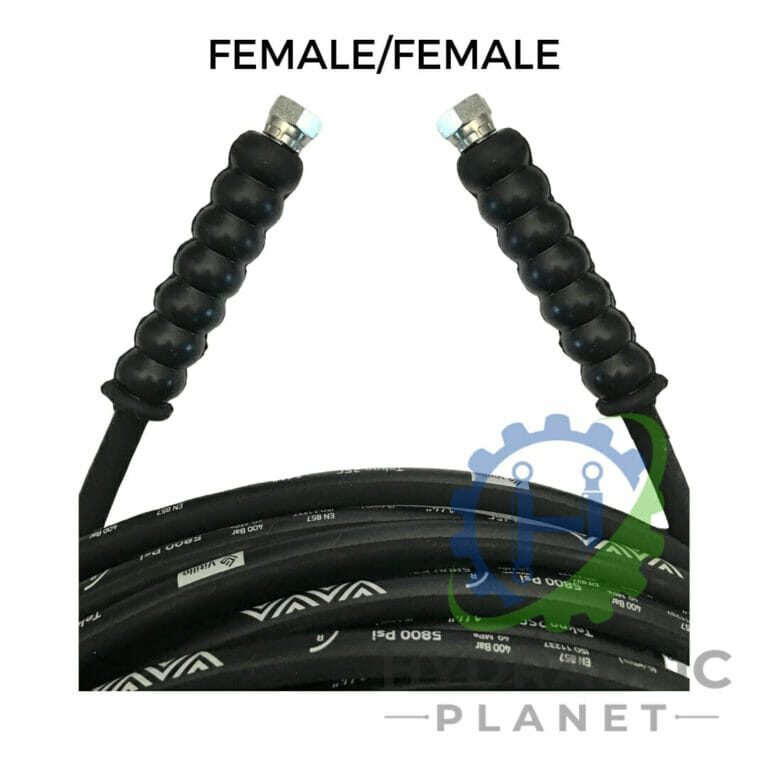

1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP FEMALE FITTINGS
May14,2020November12,2024
1/4″ 2 wire 420 bar hose complete with 3/8″ BSP Female fittings and protective cuffs.

Ready made pressure washer hose assemblies.

Available lengths: 10mt, 20mt, 30mt

Hose Type: Standard 1/4″ (6.4 mm I.D.) braided hose
- Max Working Pressue: 420bar
- Available Cover Color: Black
- Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
- Tube: Oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel braids
- Cover: Standard cover: synthetic rubber
- Type Approval: MSHA
- Hose features: Reduced bending radius
- Fittings: BSP Female
- Featuring protective rubber cuffs
Read More 1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH BSP FEMALE FITTINGS

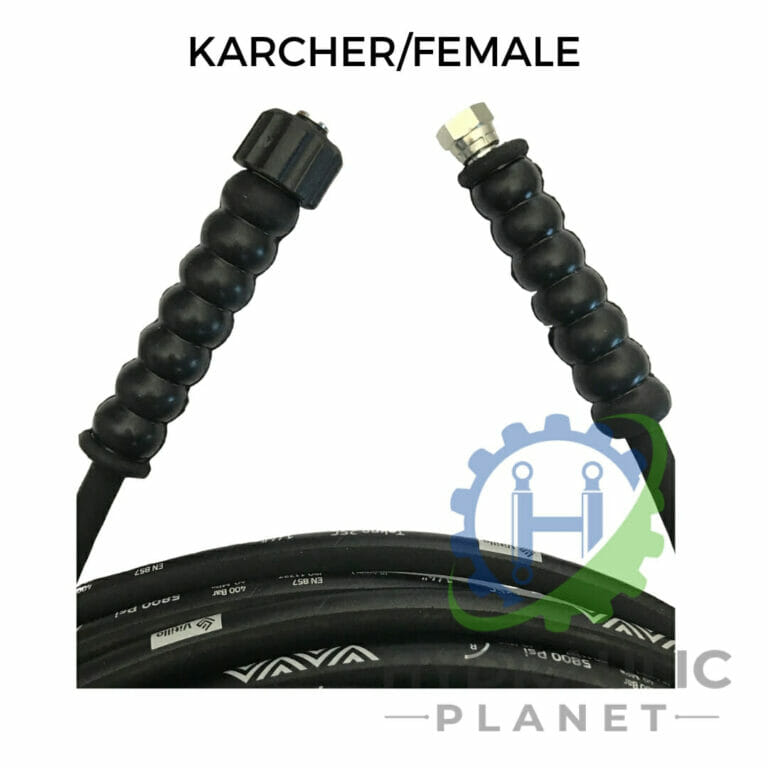

1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH FEMALE KARCHER + BSP FEMALE
May14,2020November12,2024
1/4″ 2 wire 420 bar hose complete with M22 with Female Karcher + 3/8″ BSP Female fittings and protective cuffs.

Ready made pressure washer hose assemblies.

Available lengths: 10mt, 20mt, 30mt

Hose Type: Standard 1/4″ (6.4 mm I.D.) braided hose
- Max Working Pressue: 420bar
- Available Cover Color: Black
- Operating Temperature Range: – 40°C/+100°C (-40°F to +212°F) with peak of +125°C (257°F)
- Tube: Oil resistant synthetic rubber
- Reinforcement: 2 high tensile steel braids
- Cover: Standard cover: synthetic rubber
- Type Approval: MSHA
- Hose features: Reduced bending radius
- Fittings: Female Karcher + BSP Female
- Featuring protective rubber cuffs
Read More 1/4″ 2 WIRE BLACK PRESSURE WASHER HOSE ASSEMBLY WITH FEMALE KARCHER + BSP FEMALE
