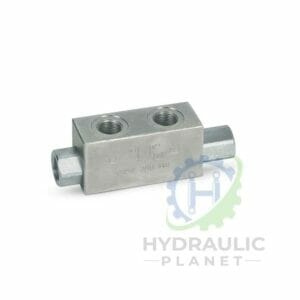

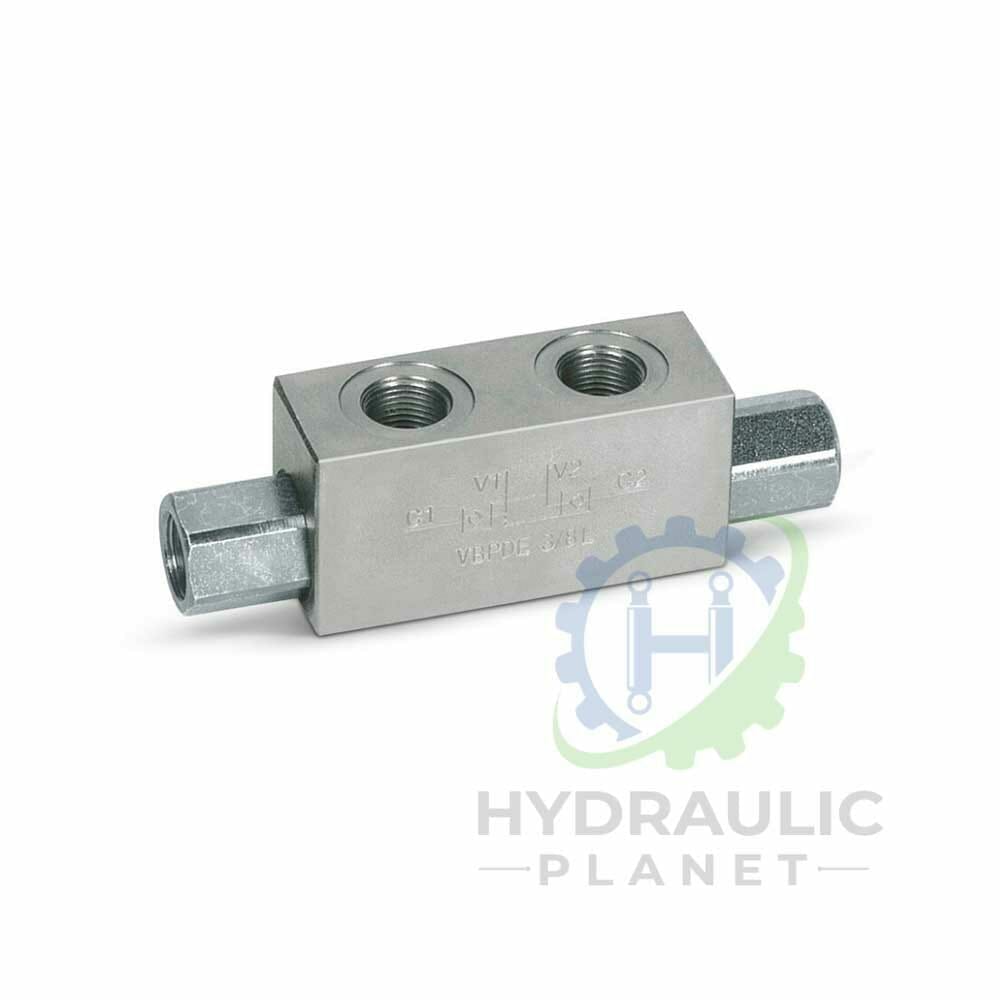

DOUBLE PILOT OPERATED CHECK VALVE
Price range: €16.55 through €25.00 + vat
TYPE: VBPDE

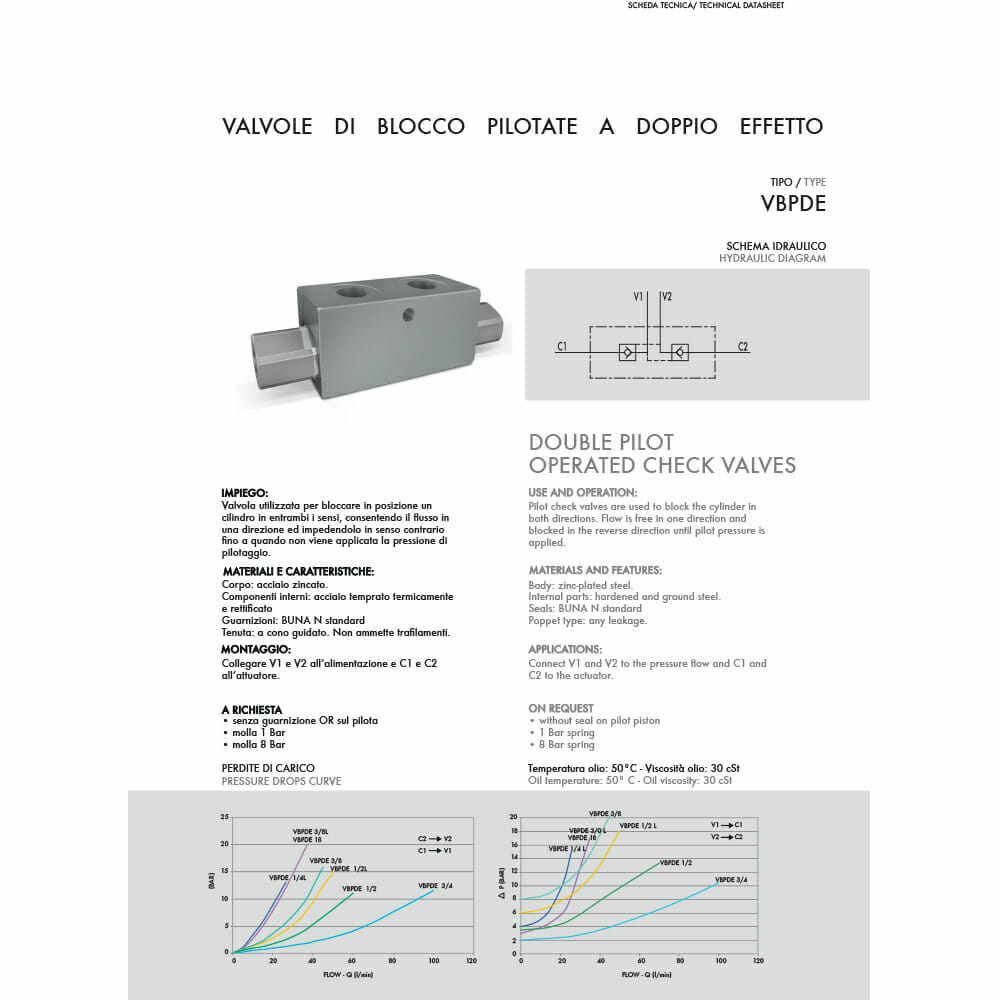

Use and Operation
Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: any leakage
Applications
Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator.
Rapid dispatch for all orders!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Premium Double Pilot Check Valve for Precise Flow Control
Upgrade your hydraulic systems with the advanced VBPDE double pilot check valve, available at Hydraulic Planet. This pilot operated valve is engineered to deliver exceptional performance in flow management.
Reliable Flow Control with Pilot Operation
The VBPDE double pilot check valve is an essential component for controlling flow direction in hydraulic systems. Designed with precision, it ensures smooth flow in one direction while preventing reverse flow until pilot pressure is applied.
Durable Construction and Leak-Free Design
Crafted from robust zinc-plated steel, the body of the valve guarantees durability and longevity, even in demanding environments. The internal parts, made of hardened and ground steel, contribute to the valve’s resilience. The BUNA N seals further enhance its leak-free design, minimizing fluid loss and maximizing efficiency.
Versatile Applications in Hydraulic Systems
Whether it’s pressure flow regulation or actuator connection, the VBPDE valve excels in various applications. Connect V1 and V2 to pressure flow and C1 and C2 to the actuator for seamless operation.
Elevate your hydraulic systems with the VBPDE double pilot check valve. Its quality construction, reliable operation, and versatile applications make it an indispensable choice for hydraulic flow control. Choose Hydraulic Planet for premium hydraulic components that deliver performance you can trust.
APPLY FOR A TRADE ACCOUNT TO AVAIL FOR SPECIAL DISCOUNTS HERE

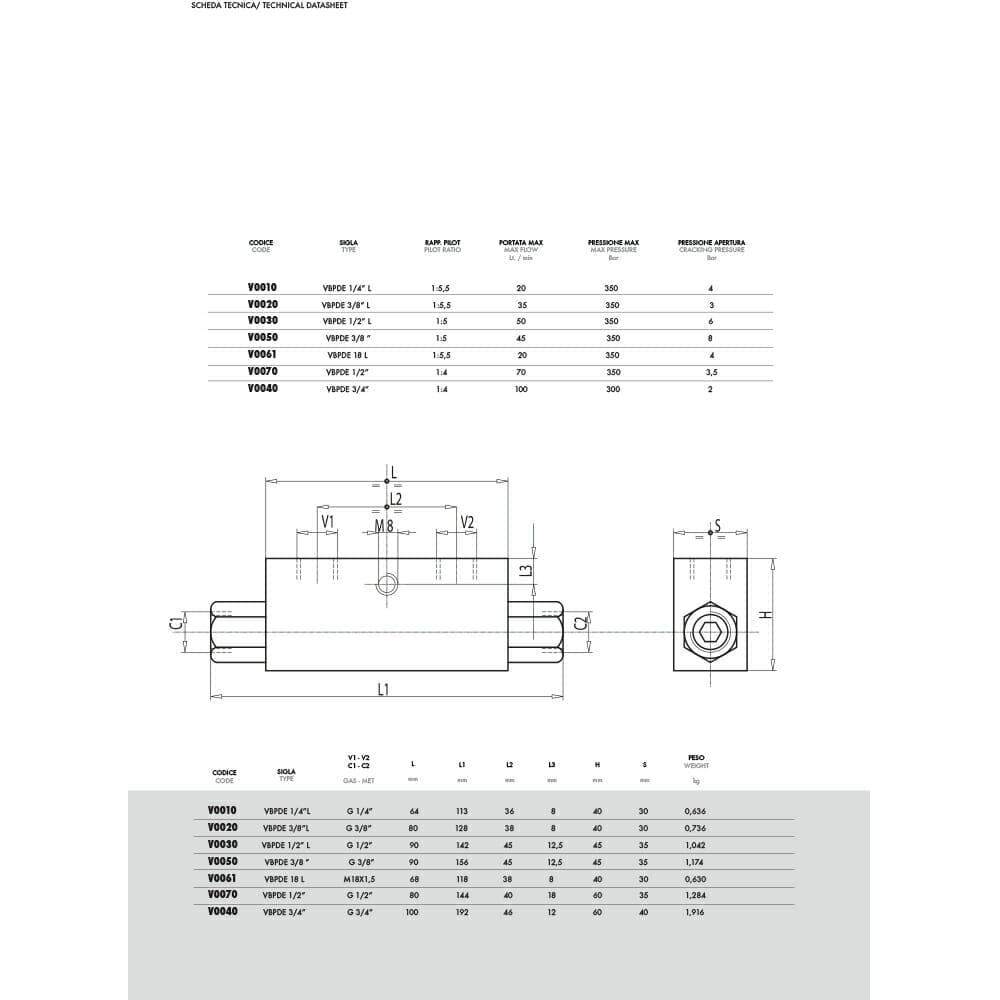

| SKU | Valve type | Pilot ratio | Max flow rate | Max working pressure | Cracking pressure | Price | Stock | Buy |
|---|---|---|---|---|---|---|---|---|
| V0070 | VBPDE 1/2" | 1 : 4 | 70 l/min | 350 bar | 3.5 bar | €22.50 + vat | In stock | |
| V0050 | VBPDE 3/8" | 1 : 5 | 45 l/min | 350 bar | 8 bar | €25.00 + vat | In stock | |
| V0020 | VBPDE 3/8" L | 1 : 5,5 | 35 l/min | 350 bar | 3 bar | €16.55 + vat | In stock |
| Weight | N/A |
|---|
