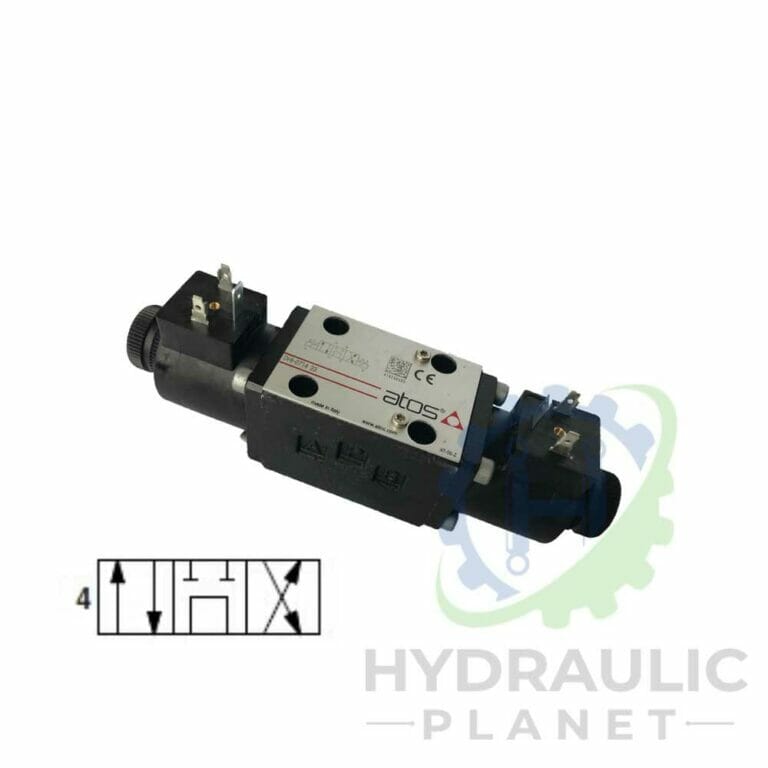

  • ATOS SDHL-0714 12VDC CETOP 3 SIZE 06 DOUBLE SOLENOID VALVE P-T SPOOL 4

    CETOP 3 SIZE 06 DOUBLE SOLENOID VALVE P-T SPOOL 4

    • 12V or 24V
    • Mounting surface: ISO 4401 size 06
    • Max Flow: 60 l/min
    • Max Pressure: 350 bar
    • Spool type
    • Double solenoid, 3 positions, spring centered
    • Solenoid certified according to the North American standard cURus.
    • Wet type flanged tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools.
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    Manufactured by Atos Italy

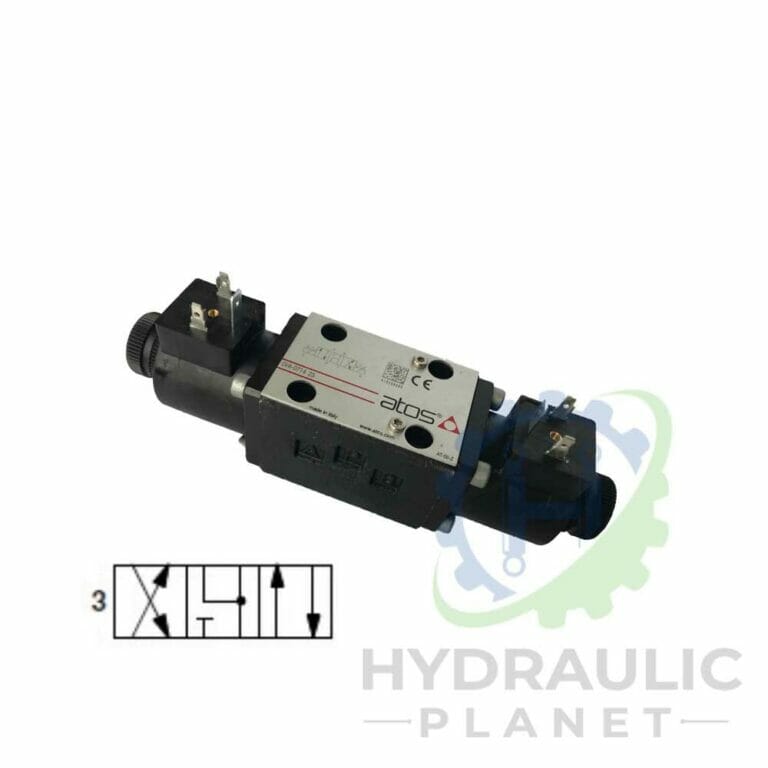

  • ATOS SDHL-0713 12/24DC CETOP 3 SIZE 06 DOUBLE SOLENOID VALVE MOTOR SPOOL 3

    CETOP 3 12VDC DOUBLE SOLENOID MOTOR SPOOL 3

    • Mounting surface: ISO 4401 size 06
    • Max Flow: 60 l/min
    • Max Pressure: 350 bar
    • Spool type
    • Double solenoid, 3 positions, spring centered
    • Solenoid certified according to the North American standard cURus.
    • Wet type flanged tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools.
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    Manufactured by Atos Italy.

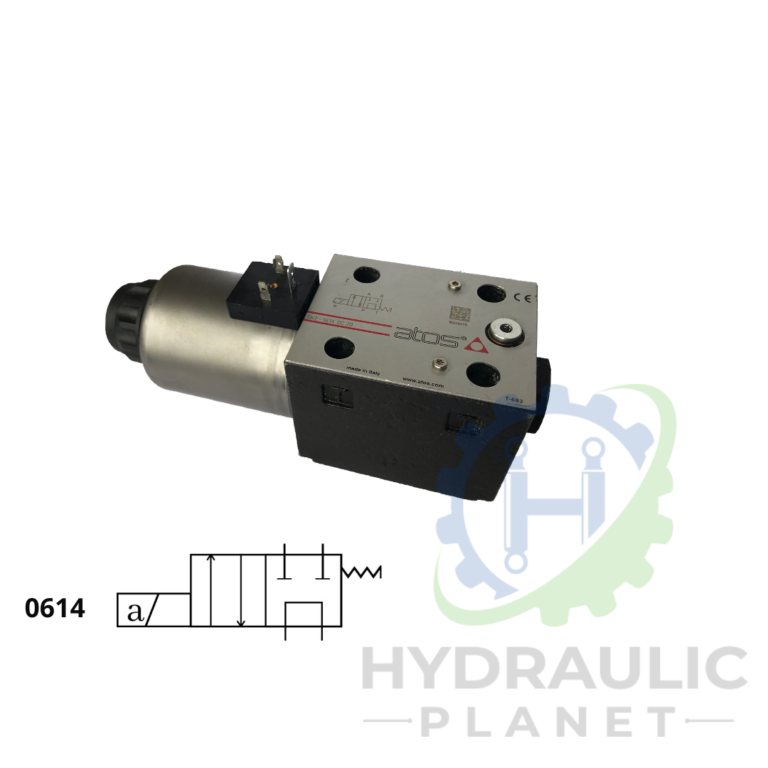

  • ATOS SDKE-1614 12/24VDC CETOP 5 SIZE 10 SINGLE SOLENOID VALVE P-T SPOOL 4

    CETOP 5  SINGLE SOLENOID VALVE P-T SPOOL 4

    • 12V or 24V
    • Mounting surface: ISO 4401 size 10
    • Max Flow: 150 l/min
    • Max Pressure: 350 bar
    • Spool type
    • Single solenoid, center plus external position, spring centered
    • Solenoid certified according to the North American standard cURus.
    • Wet type screwed tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    Manufactured by ATOS Italy.

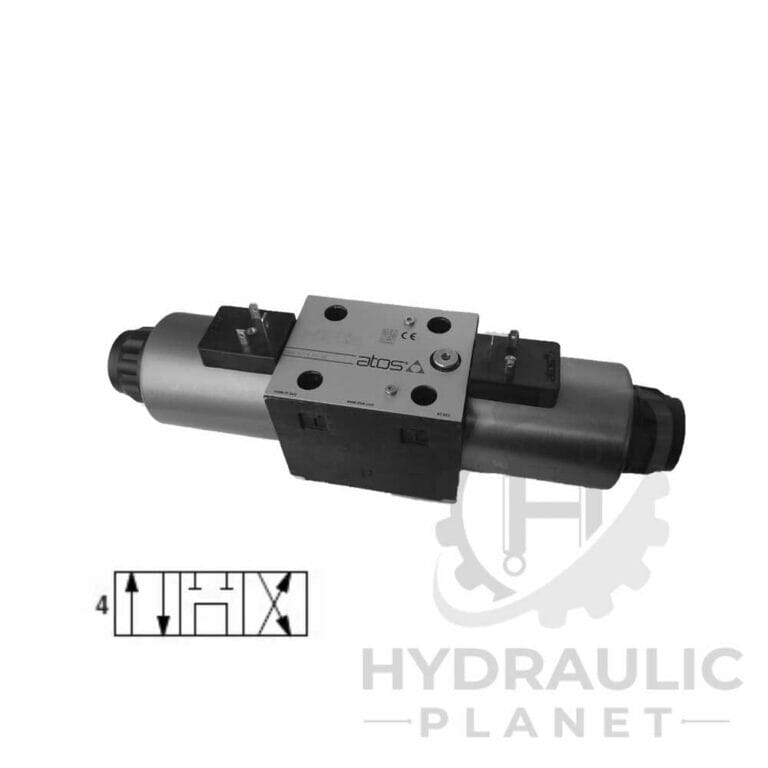

  • ATOS SDKE-1714 12/24VDC CETOP 5 SIZE 10 DOUBLE SOLENOID VALVE P-T SPOOL 4

    CETOP 5 DOUBLE SOLENOID VALVE P-T SPOOL 4

    • 12V or 24V
    • Mounting surface: ISO 4401 size 10
    • Max Flow: 150 l/min
    • Max Pressure: 350 bar
    • Spool type
    • Double solenoid, 3 positions, spring centered
    • Solenoids certified according to the North American standard cURus.
    • Wet type screwed tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    Manufactured by Atos Italy.

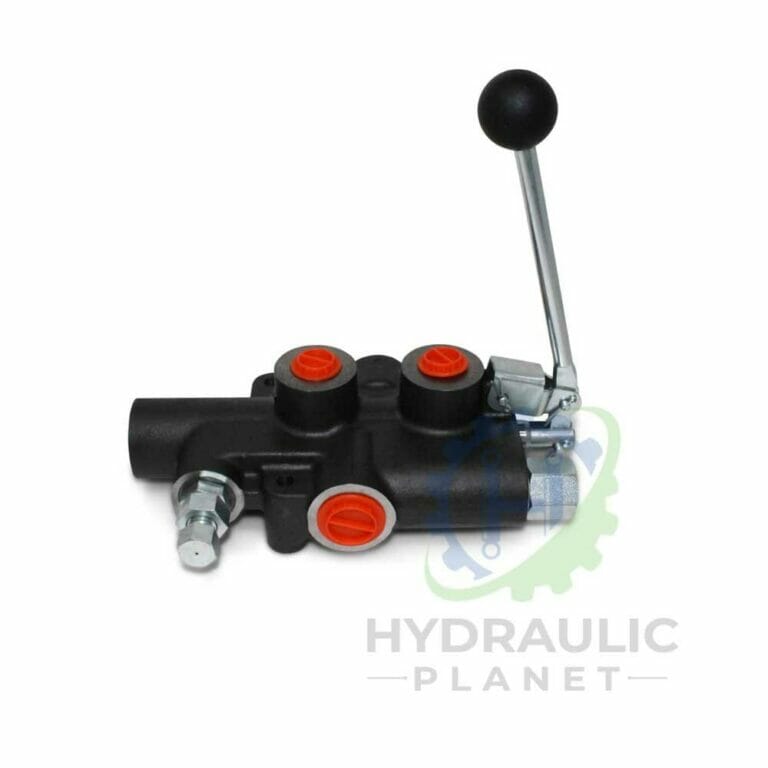

  • P81 SERIES LOG SPLITTER VALVE

    On/Off directional control mono-block valve- P81 log splitter valve is directing the working fluid between pumps and consumers (hydraulic cylinders, motors, etc.) and the tank.

    Spring centered in one direction with pressure released detent in the other direction. It automatically kicks back to neutral when the cylinder completes the stroke. Also includes a built-in adjustable inlet relief valve.

    Hydraulically balanced, hard chrome plated spool

    Lever system in which the handle can be installed in up or down position

    Detent release pressure adjustable from 70 to 140 bar

    In neutral position both work ports are blocked and the pump unloads to the tank.



    • Nominal flow rate: 80 liter/min
    • Inlet: 3/4″ BSP
    • Outlet: 3/4″ BSP
    • Max. Pressure: P: 250 bar, T: 10 bar, A-B: 300 bar
    • Spool type: Standard open center spool (A spool)
    • Number of spools: Single lever
    • Leakage: 20 cm3/min at 120 bar (From A,B to T)
    • Fluid temperature range: -10 oC … +80 oC
    • Working fluid: Mineral based hydraulic oil
    • Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
    • Filtration: 10 to NAS 1638

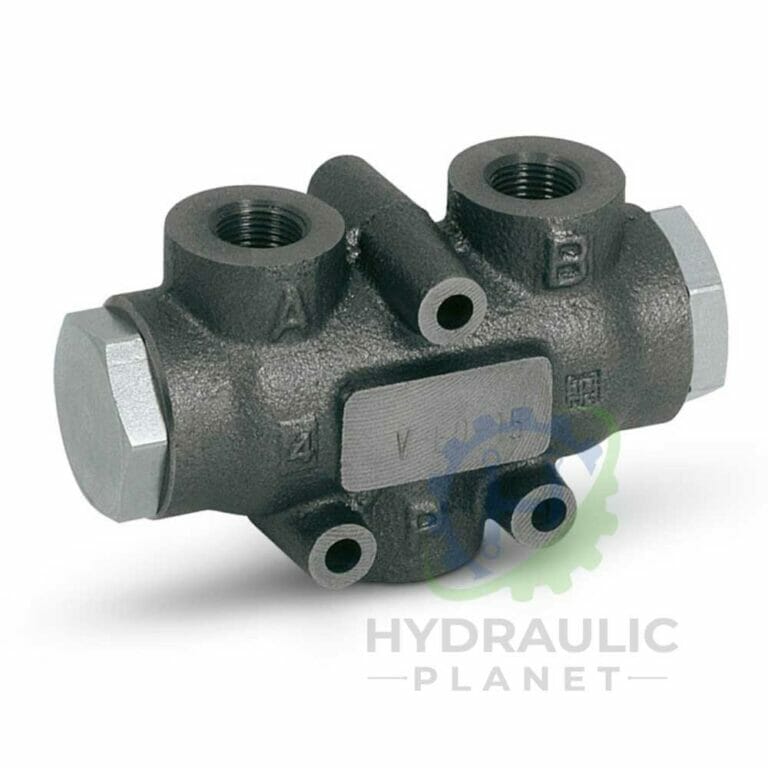

  • VEQ 2 WAY 50/50 FLOW DIVIDER

    Allows the division of inlet flow into two equals parts (50/50) and they unify it in the reverse direction independently of any pressure changes and flow.

    Body: cast iron – steel
    Internal parts: hardened and ground steel
    Seals: BUNA N standard and Teflon
    Poppet Type: By diameter combination. Minor leakage. Cylinder stroke error tolerance of 2%. Any synchronization differences are compensated by the terminal position of the stroke.

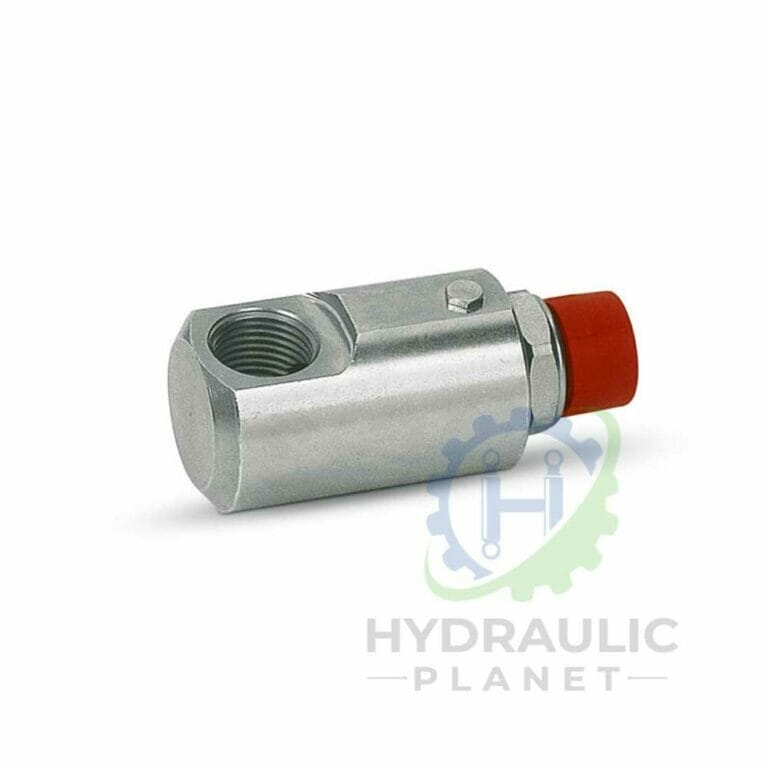

  • 90° Inline Rotating Coupling

    Use and Operation
    For mounting between the end of a flexible hose and a fixed component to compensate hose’s rotations and torsion and to prevent its damaging. Not suitable for fast and continuous rotations. Used in every production field where systems have flexible moving hose. In line mounting.

    Materials and Features

    • Body: zinc-plated steel
    • Poppet Type: low friction seals

    Applications
    Connect ports P to the uses.
