Use and Operation

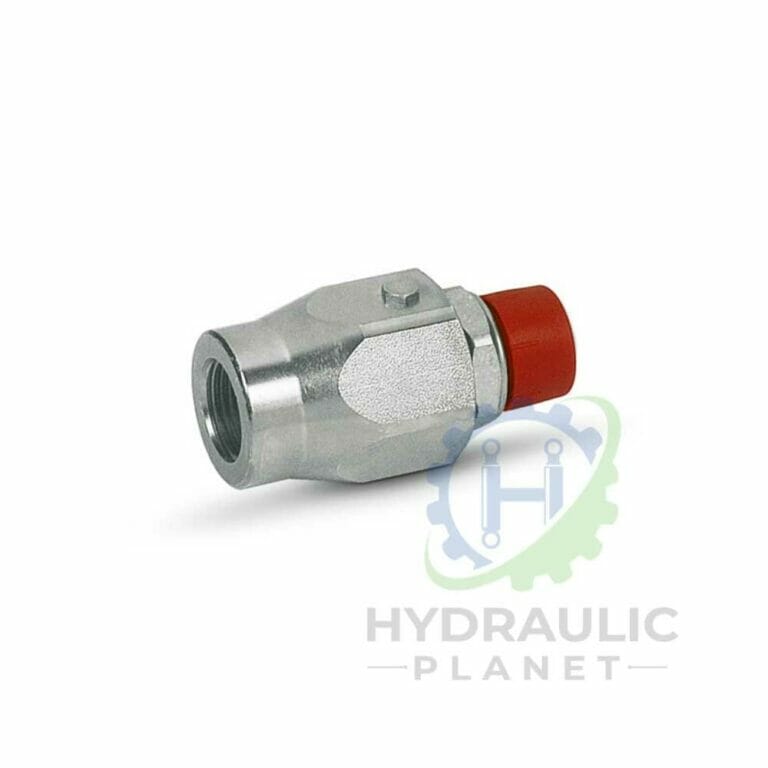

For mounting between the end of a flexible hose and a fixed component to compensate hose’s rotations and torsion and to prevent its damaging. Not suitable for fast and continuous rotations. Used in every production field where systems have flexible moving hose. In line mounting.
Materials and Features
Applications
Connect ports P to the uses.

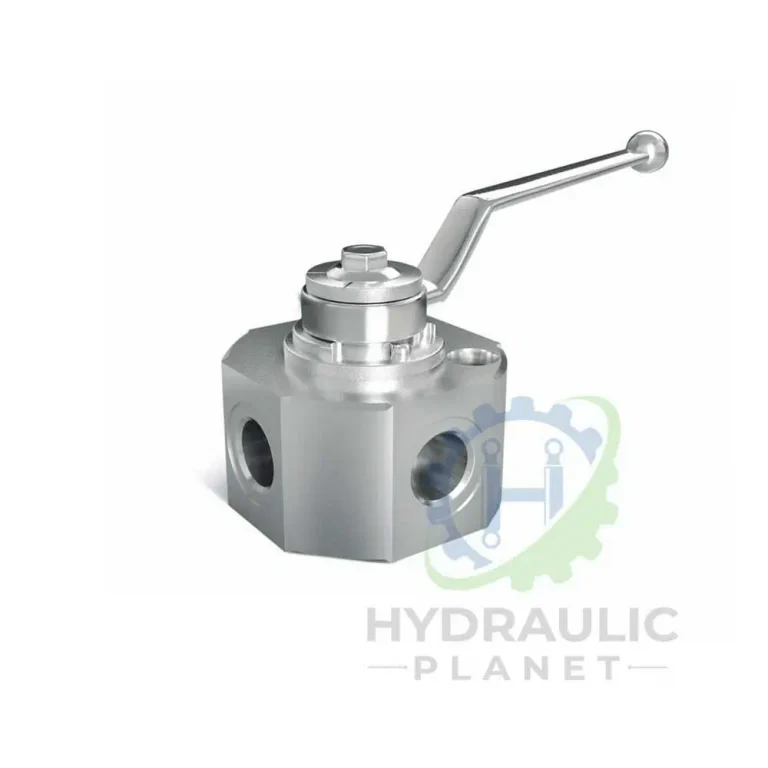

Use and Operation
Diverter flow is used to divert the flow towards 2 different outlets.
Materials and Features
Applications
Connect P to the pressure flow, A and P to the ports of the hydraulic circuit where flow has to be diverted. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).

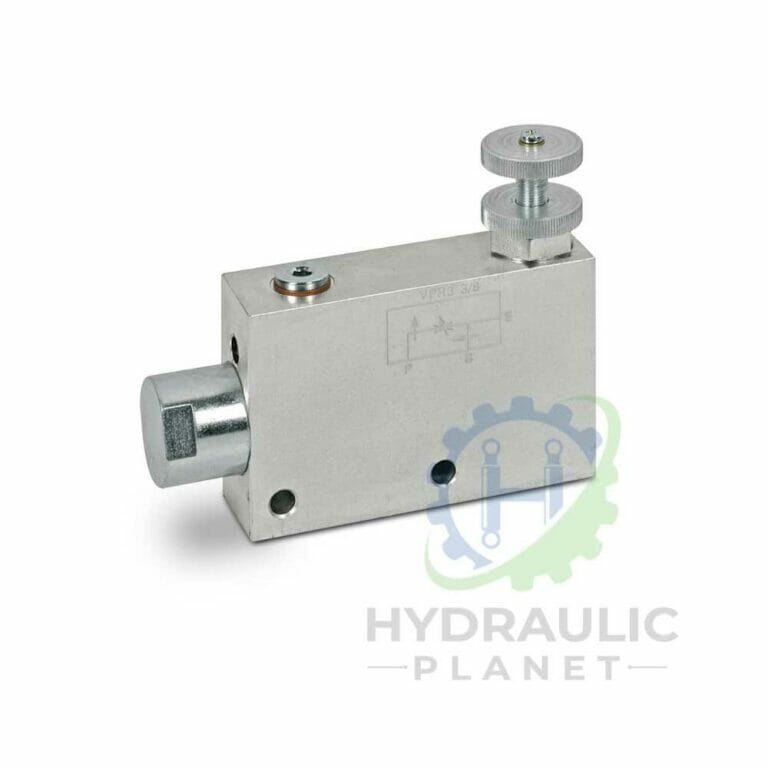

Use and Operation
This valve enables to keep “P” flow constant to a certain setting, independently of the required pressure or the inlet flow of the valve.
Exceeded flow is drained in “B” and it is available for a second use.
Port “B” is insensitive to pressure changes but not to flow changes.
Materials and Features
Applications
Connect E to the pressure flow. Connect P to the actuator or to a line of an hydraulic circuit where flow adjustment is needed.
Connect B to the tank or to a second actuator.
To adjust inlet pressure in P screw in or off hand wheel after loosening the locknut.

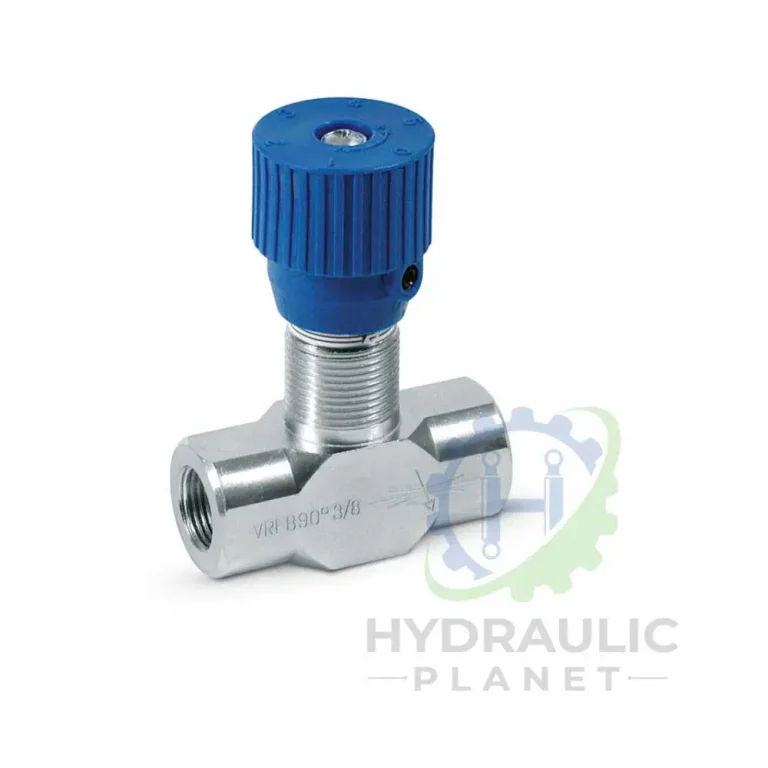

Use and Operation
This valve is used to adjust flow speed of actuators in both directions. As pressure compensation is not provided, flow adjustment depends on pressure and fluid viscosity. High adjustment sensitivity.
Materials and Features
Applications
Connect a port to the pressure. Flow will be adjusted in the other one. When used on actuator with double pilot check valve, VRFU 90° has to be mounted between the actuator and the double pilot check valve. Flow adjustment is made by rotating the plastic hand knob after loosening the side locking screw. This particular configuration allows an accurate and sensitive adjustment.
Use and Operation
This valve is used to adjust flow speed of actuators in one direction; flow is free in the reverse one. As pressure compensation is not provided, flow adjustment depends on pressure and fluid viscosity. High adjustment sensitivity.
Materials and Features
Applications
Connect V to the pressure flow and C to the actuator to set; flow is adjust from C to V and is free in the reverse direction. When used on actuator with double pilot check valve, VRFU 90° has to be mounted between the actuator and the double pilot check valve. Flow adjustment is made by rotating the plastic hand knob after loosening the side locking screw. This particular configuration allows an accurate and sensitive adjustment.

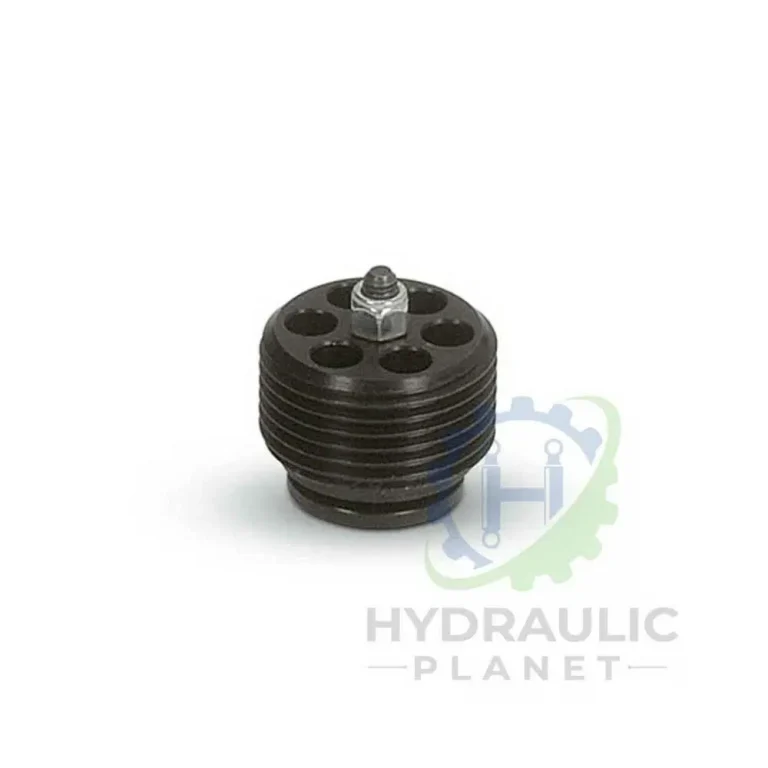

TYPE: VUBA
Use and Operation
These valves are used to prevent uncontrolled descent of a load in case of hose failure.
When the flow exceeds the valve setting (reaction flow), this valve is designed to block it.
Materials and Features
Applications
Screw in the valve connecting V to the pressure flow and C to the actuator. The use together with a flow control valve is recommended.

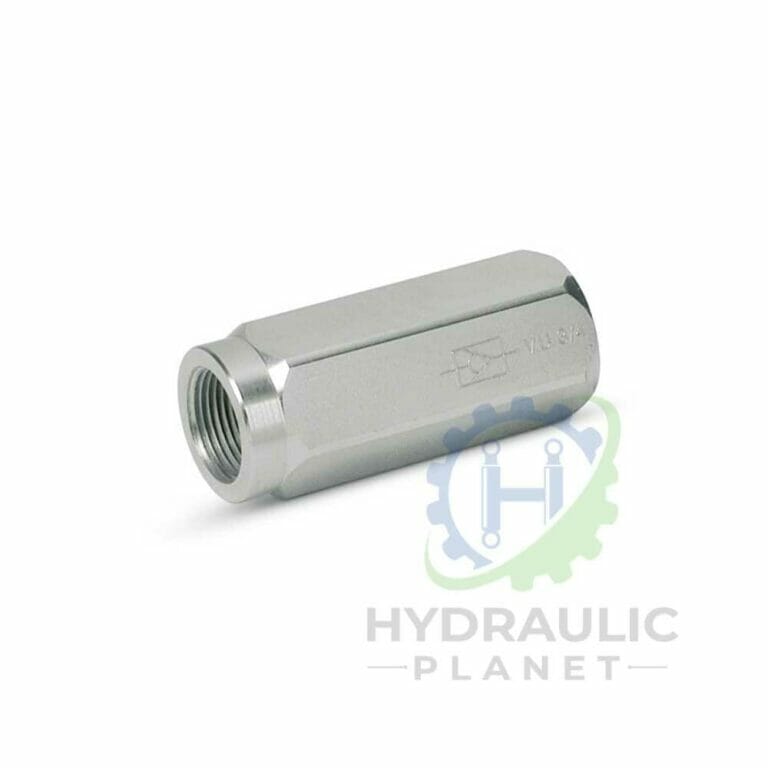

TYPE: VU
Use and Operation
In the check valves flow is free in one direction and blocked in the reverse one.
Materials and Features
Applications
Connect V to the pressure flow and C to the actuator. Flow is free from V to C and blocked in the reverse direction.
