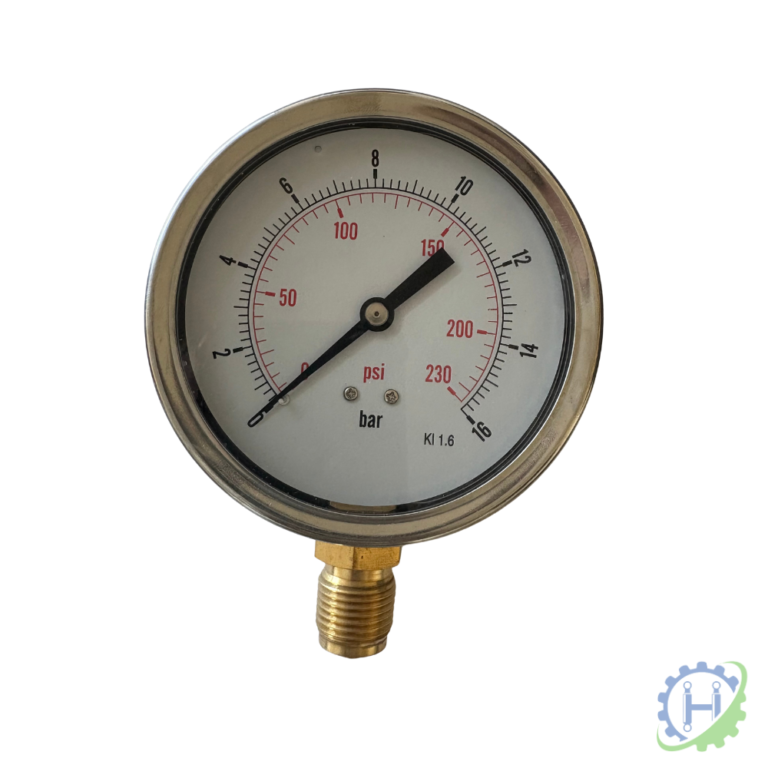

  • 100MM DIAMETER GLYCERINE FILLED PRESSURE GAUGE

    • Case and bezel : stainless steel AISI 304
    • Window : shatter resistant acrylic
    • Damping liquid : bi-distilled glycerine
    • Connection : brass. G1/2″ BSP male threaded
    • Sensitive element : copper alloy bourdon tube up to 70 bar, phosphor bronze for pressure from 100 to 690 bar.
    • Mechanism : high-precision watchmakers’ brass
    • Joints : soldered in tin alloy or silver alloy for pressure above 60 bar
    • Indicator : tempered steel
    • Dial : stoved enamel on aluminium
    • Accuracy : class 1.6
    • Scale : psi (outer) + bar (inner)

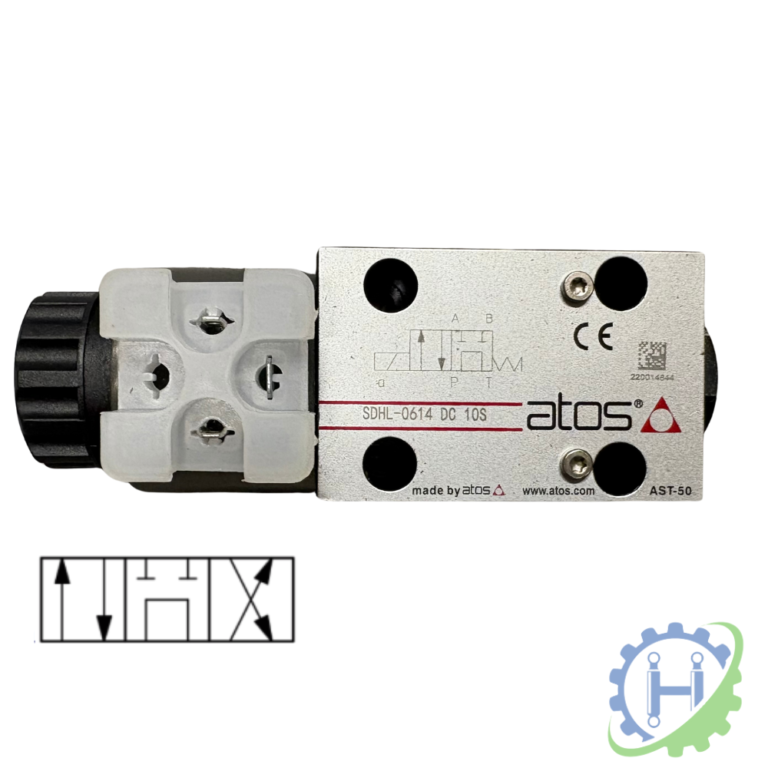

  • ATOS SDHL-0614 12/24DC SINGLE SOLENOID VALVE- CETOP 3

    • Available in 12v and 24v
    • Size: 6
    • Mounting surface: ISO 4401 size 6
    • Max Flow: 60 l/min
    • Max Pressure: 350 bar
    • Spool type
    • Standard coil without connector
    • Single solenoid, center plus external position, spring centered
    • Wet type flanged tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools.
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    SPOOL 4sdke atos valve spool image

    SDHL-HP SPEC SHEET

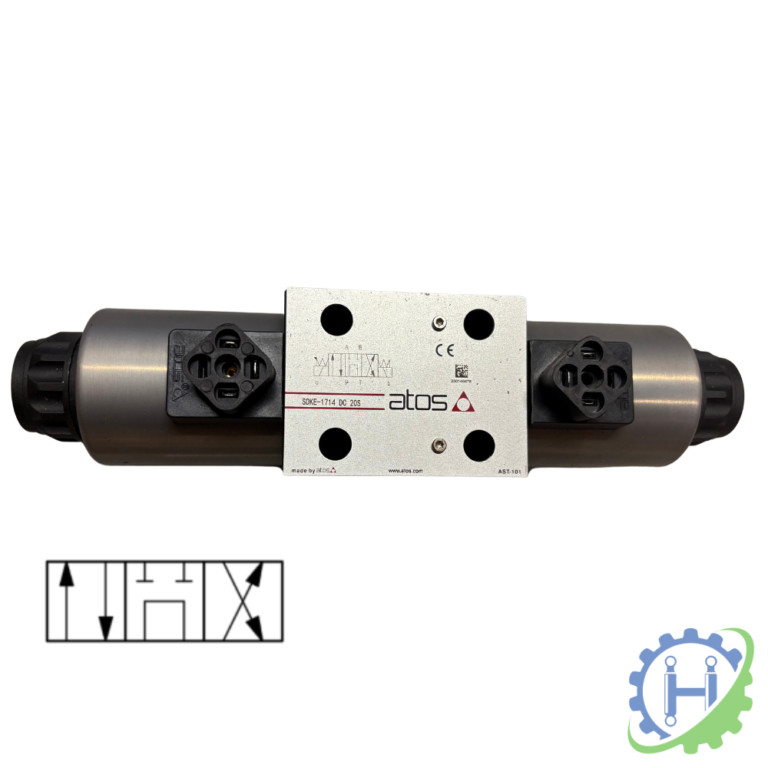

  • ATOS SDKE-1714 12/24DC DOUBLE SOLENOID VALVE- CETOP 5

    • Types: SDKE-1714-X-12DC-10, SDKE-1714-X-24DC
    • Available in 12v and 24v
    • Size: 20
    • Mounting surface: ISO 4401 size 10
    • Max Flow: 150 l/min
    • Max Pressure: 350 bar
    • Spool type: 4
    • Standard coil without connector
    • Double solenoid, 3 positions, spring centered
    • Solenoid certified according to the North American standard cURus.
    • Wet type flanged tube with integrated manual override pin.
    • Interchangeable coils, specific for DC power supply, easily replaceable without tools.
    • Standard coil protection IP65
    • Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.

    SPOOL4sdke atos valve spool image

    SDKE-HP SPEC SHEET

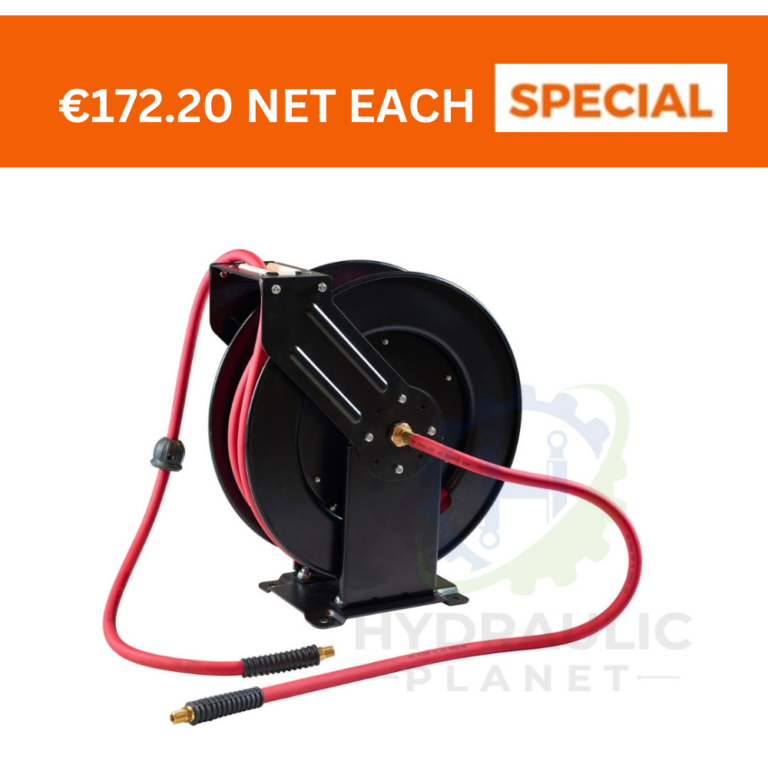

  • RETRACTABLE AIR HOSE REEL 15MT X 3/8″

    Retractable air hose reel

    Length: 15mt

    Hose Size: 3/8″

    Working Pressure: 20 bar

    Maximum Pressure: 60 bar

    Heavy-duty steel construction with power-coated for the highest quality paint adhesion.

    Integrated and strengthened main axis provide better pressure bearing capacity.

    5-layer industrial heavy duty nitrile rubber hose.

    Non-snag four direction rollers reduce hose wear abrasion.

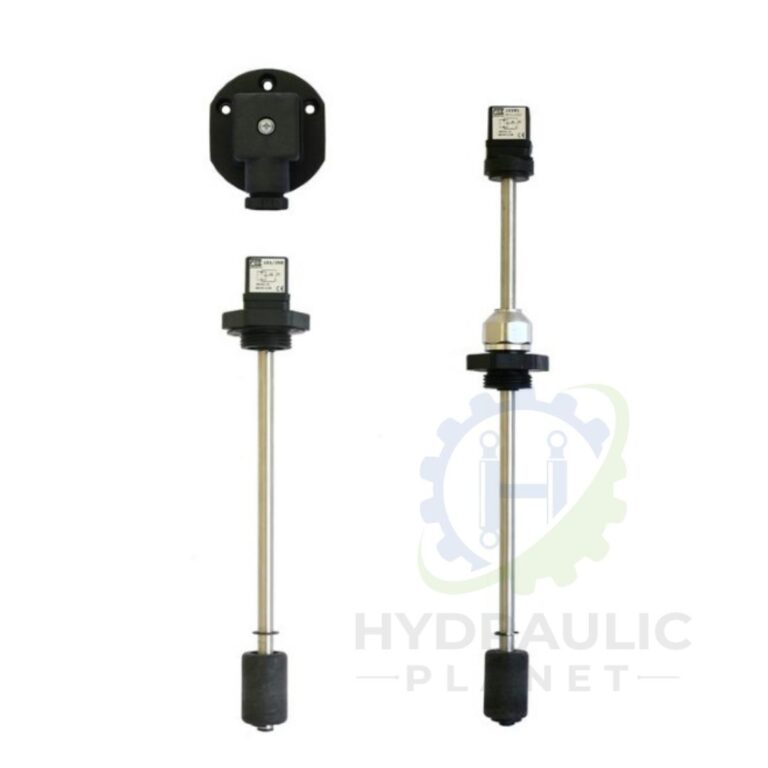

  • TEMPERATURE & LEVEL INTANK SWITCH

    Electromechanical level indicator- temperature intank switch suitable for use with ASA Hydraulik coolers.

    Technical Features:
    Working temperature: -10°C ÷ +90°C
    Maximum inclination: 15°
    Max viscosity of the fluid: 150 cSt
    Mechanical life: 106
    cycles at 20°C
    Body: in anodized aluminium with wetted part in stainless steel 316L (rod) and spancil pom (float)
    Installation: must be least at 50mm away from ferrous walls and far from magnetic fields and in vertical position by 3 different types of hydraulic connection in only one execution:
    – two holes flange (180°)
    – three holes flange (120°)
    – threaded 1”BSP-M

    Electrical Features:
    – Electrical connection according to DIN43650, M3
    – Electrical protection according to DIN40050, IP65
    – Exchange contacts (Common, NO and NC) – SPDT (simple contact for version with thermometer)
    – Maximum load: 0.2A at 30VAC/VDC

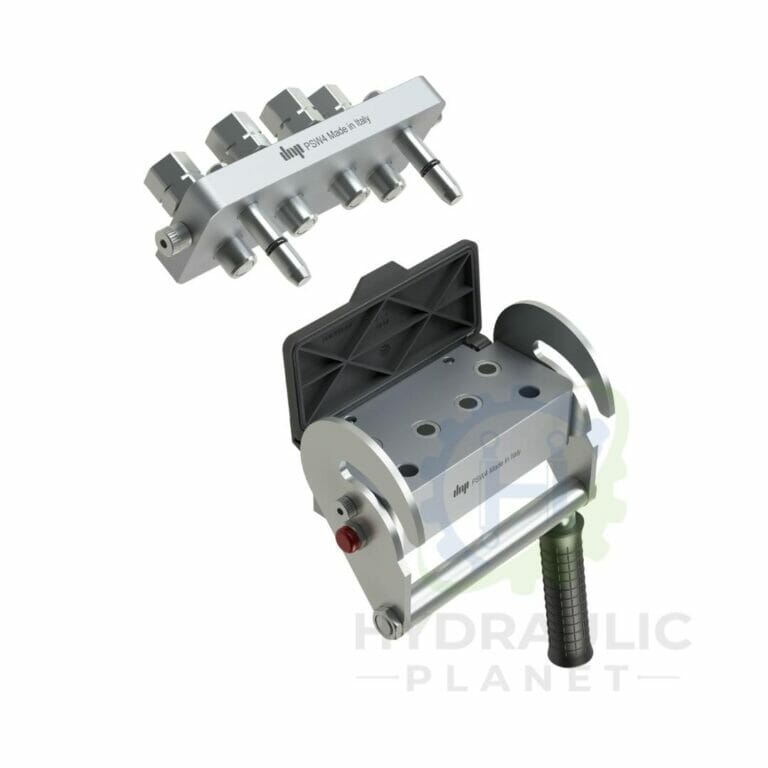

  • DNP MULTI DOCK QUICK RELEASE SET – 4 LINE

    Manufactured by DNP Italy, steel and aluminum multi dock quick release set for use on loaders.

    Multi dock set includes both fixed and mobile part:

    • Part: PSW4.4CCG.2 (fixed)
    • Part: PSW4.4CCG.3 (mobile)

    Standard: DIN3852-2

    Details:

    • Interchange: Faster PS06
    • Occlusion: flat face
    • Locking: lever with safety device
    • Material: steel and aluminum
    • Finishing: Zn-Fe (Cr III), Anodizing
    • Threads: BSP – NPT – SAE – METRICS
    • Standard seals: NBR and PU
    • Working temperature: -25 °C +100 °C
    • Optional seals: FKM, EPDM or more.
    • Working pressure: 250 bar
    • Connection under residual pressure: allowed (male side only)

    Quick release couplings are supplied separately.
