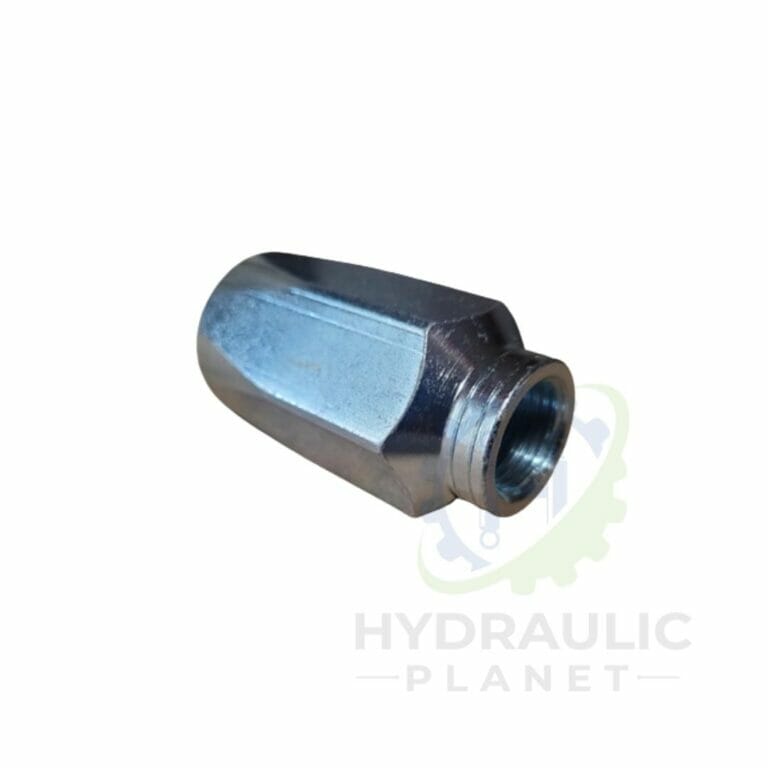

REUSABLE FERRULE FOR 2SC
Mild steel reusable ferrules suitable for 2 wire hydraulic hose. Field attachable hydraulic hose inserts and ferrules do not require the use of crimper and can be tightened by hand or hand tools.
Suitable for multiple uses.
-
-

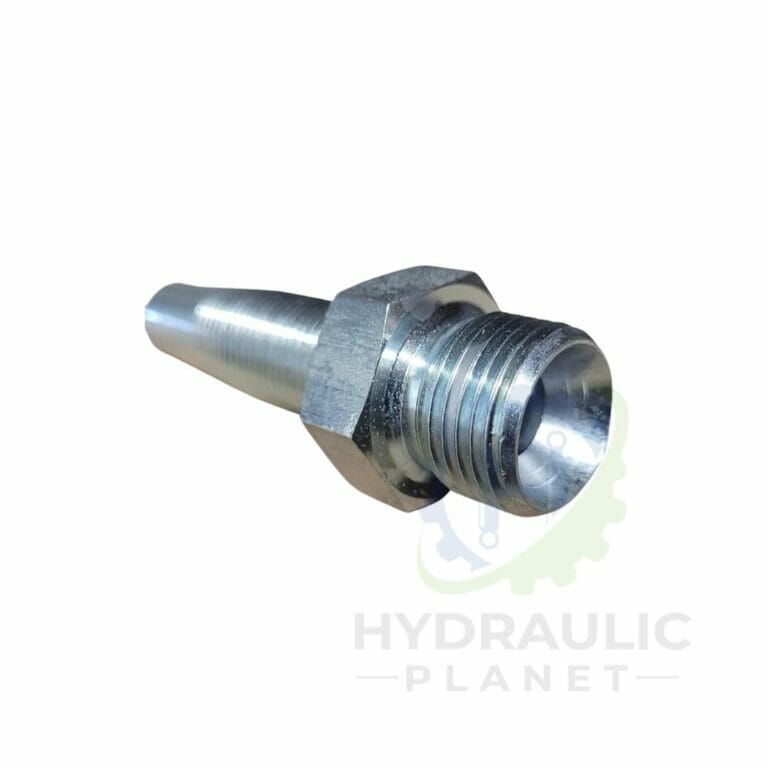

REUSABLE HOSE FITTINGS – MALE HOSE INSERTS BSPP
Mild steel reusable hose fittings. Field attachable hydraulic hose inserts do not require the use of crimper and can be tightened by hand or hand tools.
Suitable for multiple uses..
- Gender: Male
- Thread: BSPP
- Elbow: none
- Material: mild steel
-

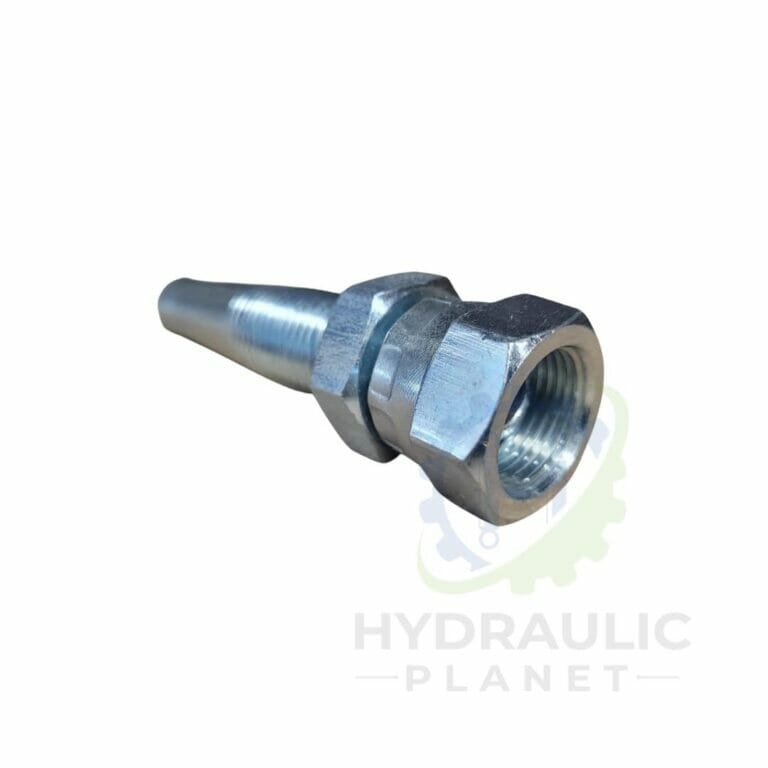

REUSABLE HOSE FITTINGS – FEMALE HOSE INSERTS BSPP
Mild steel reusable hose fittings. Field attachable hydraulic hose inserts do not require the use of crimper and can be tightened by hand or hand tools.
Suitable for multiple uses..
- Gender: Female
- Thread: BSPP
- Elbow: none
- Material: mild steel
-

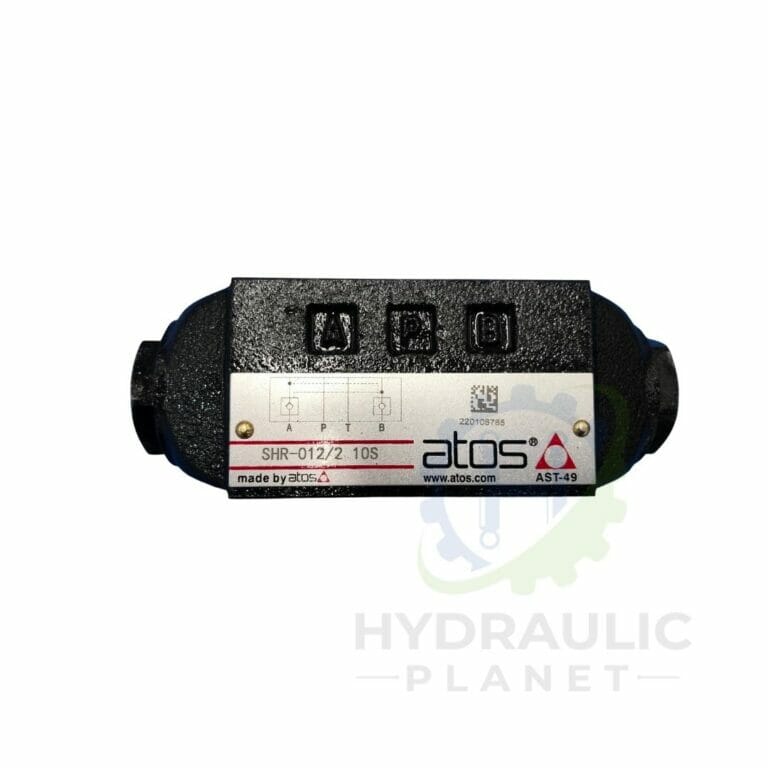

ATOS SHR MODULAR DOUBLE P/O CHECK VALVE
Modular pilot operated check valve
- Double acting on port A and B
- Size: 3
- Mounting surface: ISO 4401 size 3
- Max Flow: 60 l/min
- Max Pressure: 350 bar
- Valves are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic fluid having similar lubricating characteristics.
Manufactured by Atos Italy.
-

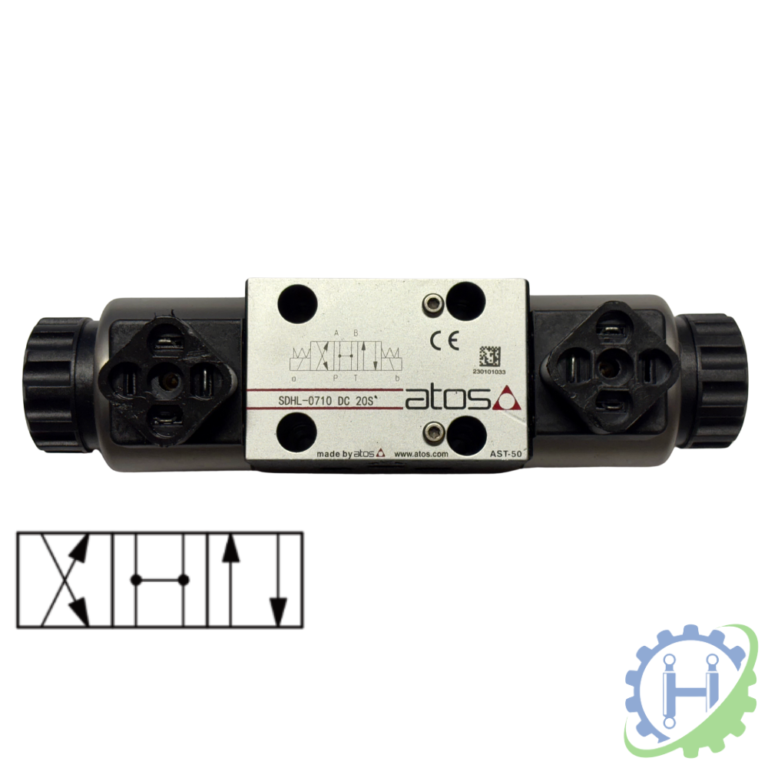

ATOS SDHL-0710,0711,0713,0714 12/24DC DOUBLE SOLENOID VALVE- CETOP 3
Double solenoid directional valve, direct operated. Cetop 3. Compact execution.
- Available in 12v and 24v
- Size: 6
- Mounting surface: ISO 4401 size 6
- Max Flow: 60 l/min
- Max Pressure: 350 bar
- Spool type
- Standard coil without connector
- Double solenoid, 3 positions, spring centered
- Wet type flanged tube with integrated manual override pin.
- Interchangeable coils, specific for DC power supply, easily replaceable without tools.
- Standard coil protection IP65
- Chamber type body made by shell-molding casting with wide internal passages ensuring low pressure drops.
Manufactured by Atos Italy.
SPOOL 0
SPOOL 1
SPOOL 3
SPOOL 4
-

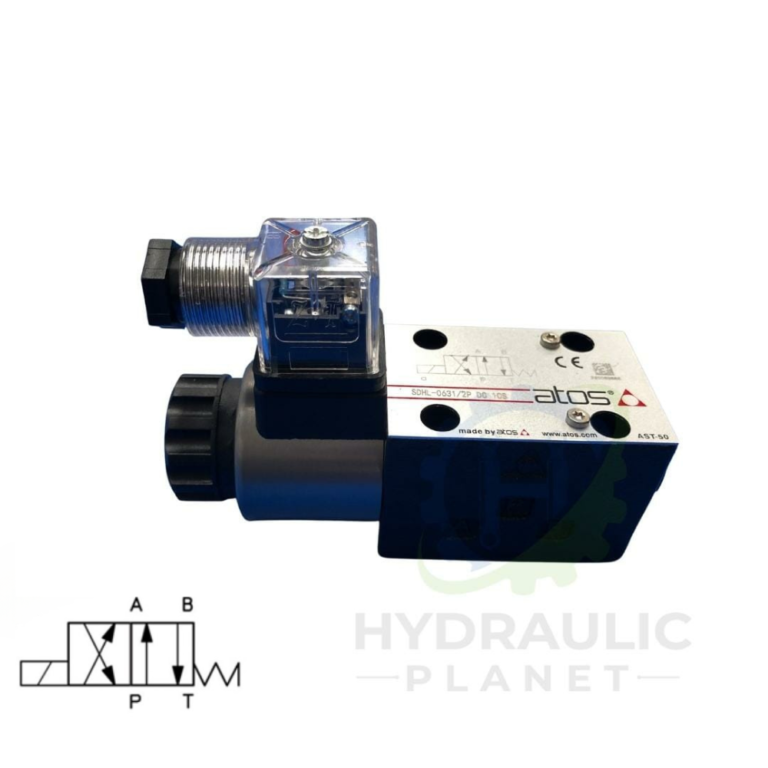

ATOS SDHL-0631 12/24DC SINGLE SOLENOID VALVE- CETOP 3
Single solenoid directional valve, direct operated. Cetop 3. Compact execution.
- Available in 12v and 24v
- Size: 6
- Mounting surface: ISO 4401 size 6
- Max Flow: 60 l/min
- Max Pressure: 350 bar
- Spool type
- Standard coil without connector
- Single solenoid, center plus external position, spring centered
- Wet type flanged tube with integrated manual override pin.
- Interchangeable coils, specific for DC power supply, easily replaceable without tools.
- Standard coil protection IP65
- Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.
Manufactured by Atos Italy.
SPOOL 1/2
-

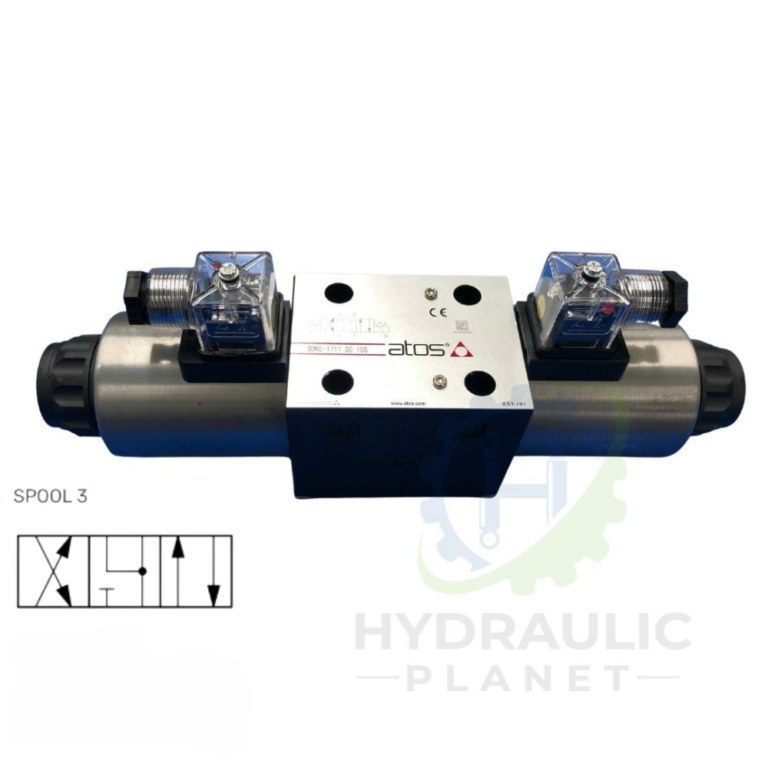

ATOS SDKE-1713 12/24DC DOUBLE SOLENOID VALVE- CETOP 5
Solenoid directional valve. direct operated.
- Types: SDKE-1714-X-12DC-10, SDKE-1714-X-24DC
- Available in 12v and 24v
- Size: 10
- Mounting surface: ISO 4401 size 10
- Max Flow: 150 l/min
- Max Pressure: 350 bar
- Spool type
- Standard coil without connector
- Double solenoid, 3 positions, spring centered
- Solenoid certified according to the North American standard cURus.
- Wet type flanged tube with integrated manual override pin.
- Interchangeable coils, specific for DC power supply, easily replaceable without tools.
- Standard coil protection IP65
- Chamber type body made by shell-moulding casting with wide internal passages ensuring low pressure drops.
Manufactured by Atos Italy.
SPOOL 3
-

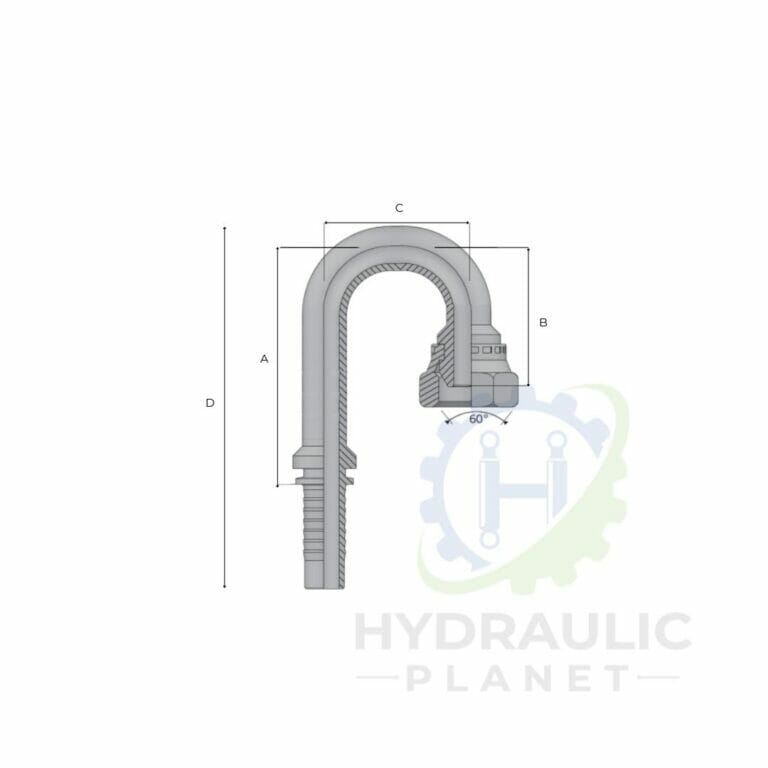

BSPP FEMALE – 180° ELBOW
- Type: Standard
- Connector Gender: Female
- Thread: BSPP Female
- Elbow: 180° Elbow
Recommended for use on JCB Teleporters.
-

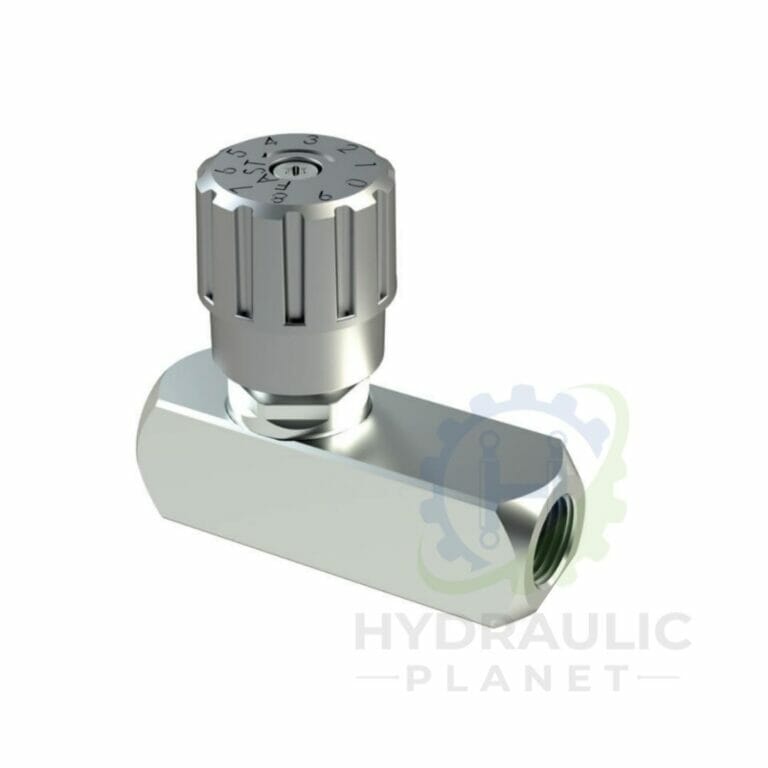

ONE DIRECTION ADJUSTABLE FLOW CONTROL VALVE – STU
STU flow control valve is a one direction adjustable valve/ restrictor for in line installations. The passage on the opposite side is free.
It allows for a flow adjustment of oil passing through and lets you control the speed of hydraulic cylinder or a motor. The valves do not have an integrated hydraulic compensator and the set flow is affected by the pressure drops across the valve. The valves can be easily installed inline inside the hydraulic circuit through the two BPSS threads ports. Depending on the chosen size, the STU-BSPP valves can be installed inside circuits with max working pressure of 400 bar (5800 PSI).
The external body is made of steel, and it is protected from oxidation by zinc plating treatment. The inner components are made of steel, hardened and ground where necessary. The knobs are made of aluminum.
-

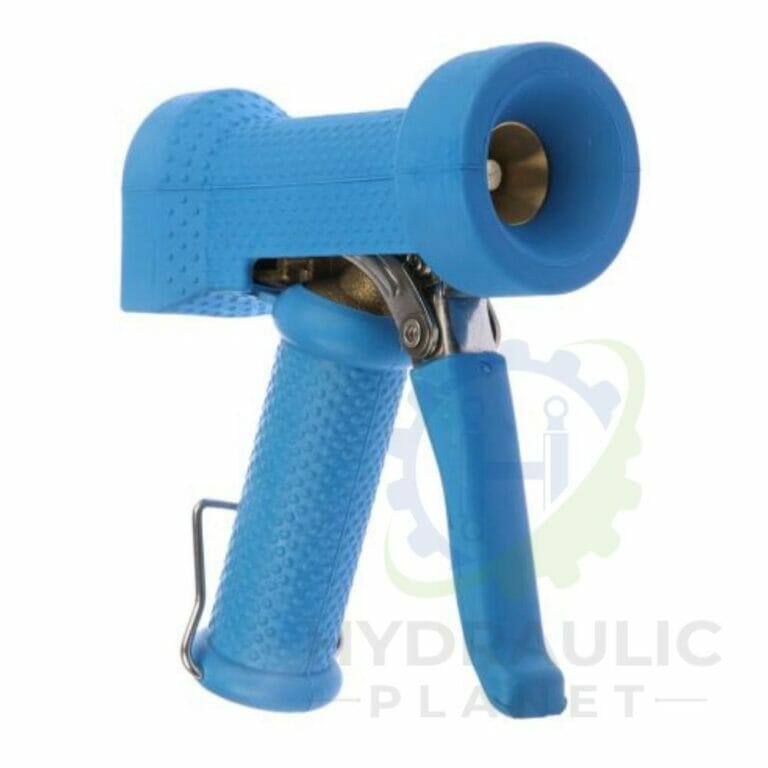

NITO® HEAVY DUTY SPRAY GUN
NITO® is a heavy-duty spray gun suitable for various applications, mostly used as a wash down gun on farms and in food industries.
- Max pressure: 25 bar
- Capacity at 5 bar : jet spray- 25l/min; wide spray pattern- 42l/min
- Max temperature: 80°C
- Thread: 1/2″ BSPF Female (parallel thread)
- Housing: brass MS58
- Valve: stainless steel
- Nozzle: brass
- Spring: stainless steel
This product is not suitable to work with steam.
